Connector plug-in installation 770-253
Source photo:
WAGO
(fig. might be different or similar)

Connector plug-in installation 770-253

EAN/GTIN: 4044918253963
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 770-253
Customs tariff no.: 85366990
Order level:
(minimum)
100 pce
Similar top items: Show now & compare
232,22 EUR Price incl. tax. 19,00%
(for 100 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 100 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Connector plug-in installation Rated voltage 250V, Rated current 25A, Number of poles 3, Degree of protection (IP) IP20, Connection type Spring clamp connection, Model Plug, Connection cross section (fine-strand) 0,5 ... 4mm², Connection cross section (solid-core) 0,5 ... 4mm², Number of connections per pole 2, Pole codification 1, 2, 3, Mechanical coding, Colour coding/contact insert Grey, Locking mechanism Separate, Max. continuous temperature resistance contact part 85°C, Max. continuous temperature resistance strain relief 105°C, Material housing Polyamide (PA), Contact material Other, Surface finish contacts Other, Pollution degree 3, Continuity resistor 3mOhm, Rated surge voltage 4kV, Length 37,5mm, Height 12,9mm, Width 30mm

More product images:

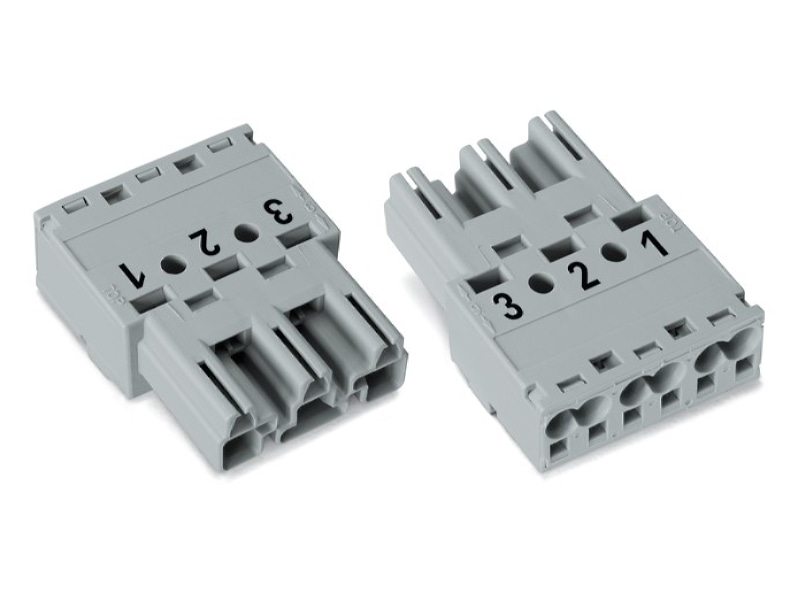

Product image WAGO 770 253 Connector plug in installation
Product image

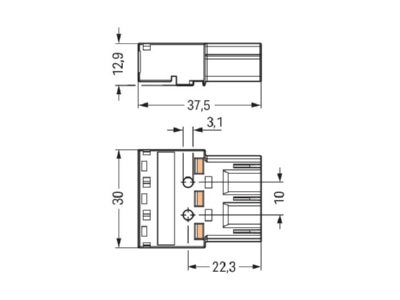

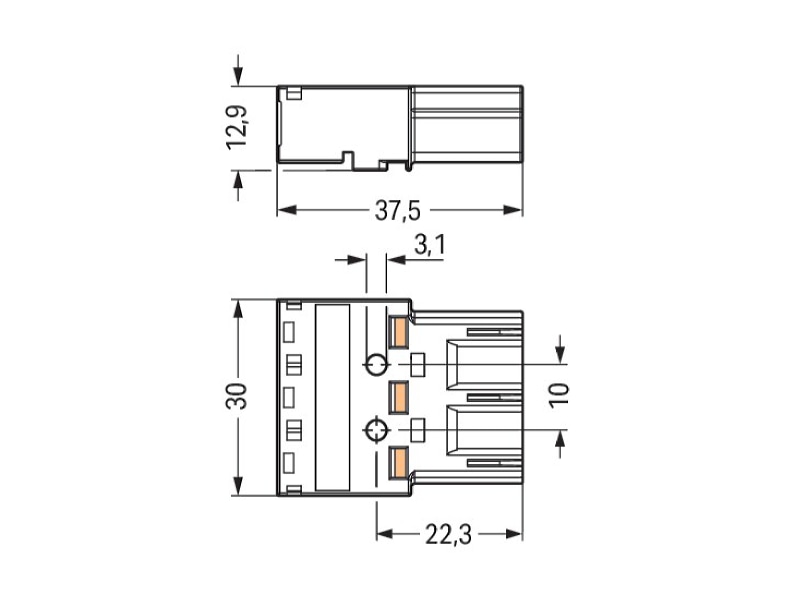

Dimensional drawing WAGO 770 253 Connector plug in installation
Dimensional drawing
