Connector plug-in installation 770-215
Source photo:
WAGO
(fig. might be different or similar)

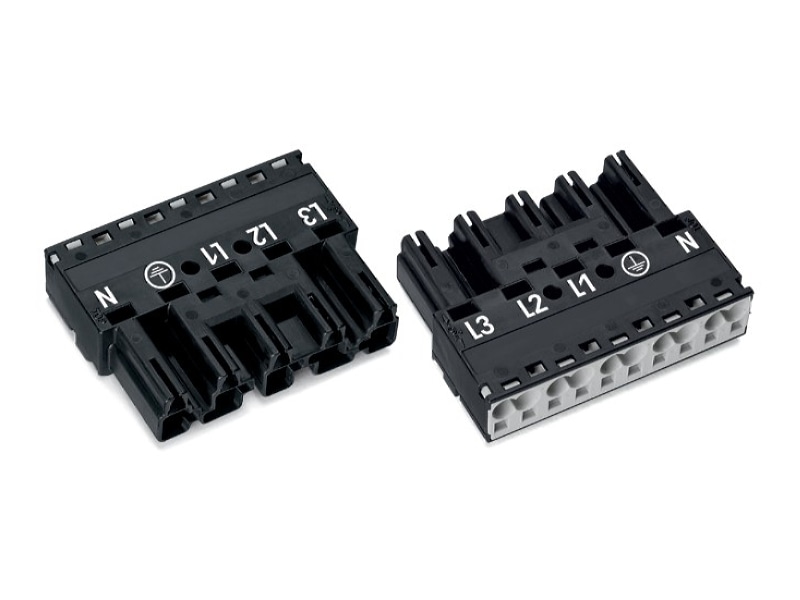

Connector plug-in installation 770-215

EAN/GTIN: 4044918254557
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 770-215
Customs tariff no.: 85366990
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
138,32 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

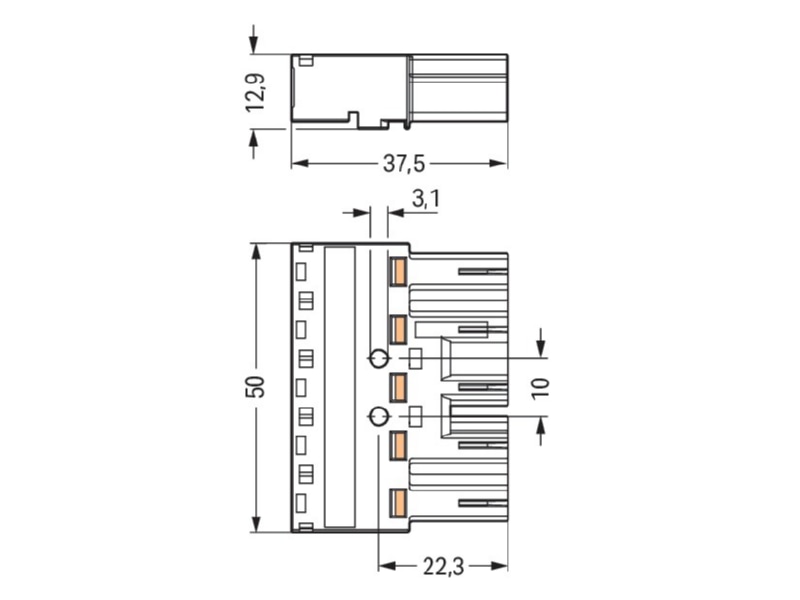

Rated voltage=400 V, Rated current=25 A, Number of poles=5, Degree of protection (IP)=IP20, Connection type=Spring clamp connection, Model=Plug, Connection cross section (fine-strand)=0,5..4 mm˛, Connection cross section (solid-core)=0,5..4 mm˛, Number of connections per pole=2, Mechanical coding=yes, Colour coding/contact insert=Black, Locking mechanism=Separate, With strain relief=no, Max. continuous temperature resistance contact part=85 °C, Max. continuous temperature resistance strain relief=105 °C, Material housing=Polyamide (PA), Halogen free=no, Contact material=Other, Surface treatment contacts=Other, Pollution degree=3, Continuity resistor=3 mOhm, Rated surge voltage=6 kV, Length=37,5 mm, Height=12,9 mm, Width=50 mm
