Connector plug-in installation 3x1,5mm² 890-203
Source photo:
WAGO
(fig. might be different or similar)

Connector plug-in installation 3x1,5mm² 890-203

EAN/GTIN: 4055143548519
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 890-203
Customs tariff no.: 85366990
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
108,76 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Connector plug-in installation 3x1,5mm² Rated voltage 250V, Rated current 16A, Number of poles 3, Degree of protection (IP) IP20, Connection type Spring clamp connection, Model Socket, Connection cross section (fine-strand) 1,5 ... 1,5mm², Connection cross section (solid-core) 1,5 ... 1,5mm², Number of connections per pole 1, Pole codification L, N, PE, Mechanical coding, Colour coding/contact insert Black, Material housing Polyamide (PA), Halogen free, Contact material Other, Surface finish contacts Other, Pollution degree 3, Continuity resistor 3mOhm, Rated surge voltage 4kV, Length 34,1mm, Height 11,7mm, Width 15mm

More product images:

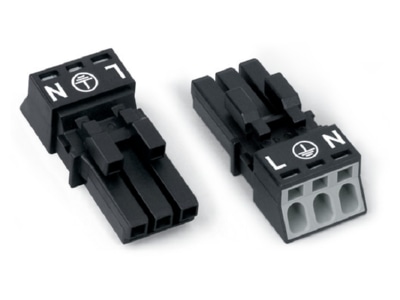

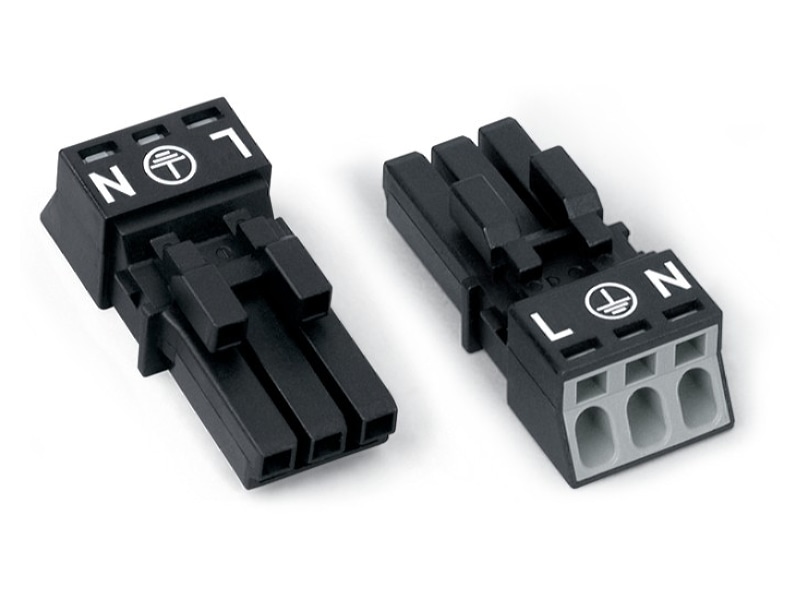

Product image WAGO 890 203 Connector plug in installation 3x1 5mm
Product image

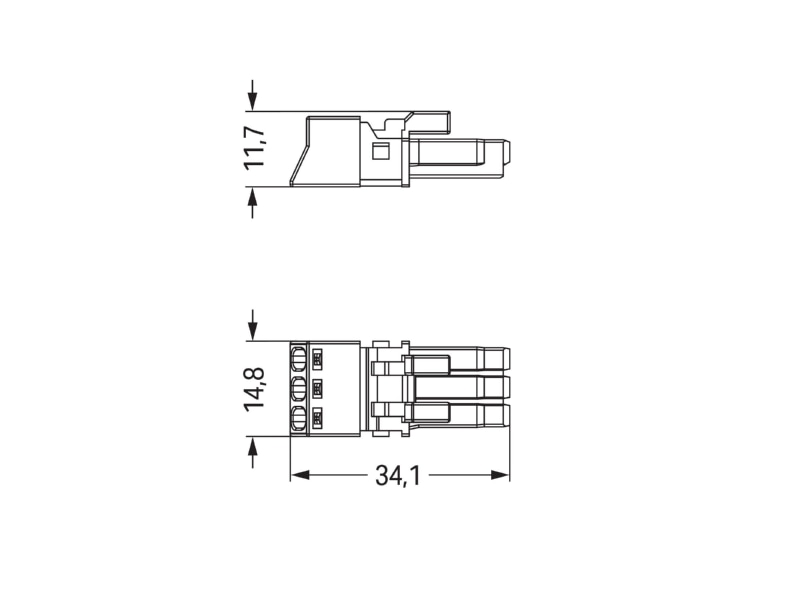

Dimensional drawing WAGO 890 203 Connector plug in installation 3x1 5mm
Dimensional drawing
