Cable connector for printed circuit 231-636
Source photo:
WAGO
(fig. might be different or similar)

Cable connector for printed circuit 231-636

EAN/GTIN: 4044918260084
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 231-636
Customs tariff no.: 85366930
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
172,84 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Cable connector for printed circuit Type of connection Printed circuit board to cable, Contact type Pin, Number of poles 6, Number of plug-in contact rows 1, Modular spacing contacts 5,08mm, Modular spacing connections 5,08mm, Angle contact/conductor connection 180° (horizontal), Rated current In 12A, Rated voltage 320V, Rated surge voltage 4kV, Over voltage category III, Pollution degree 2, Connectable conductor cross section fine-strand without cable end sleeve 0,08 ... 2,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,25 ... 1,5mm², Connectable conductor cross section solid-core 0,08 ... 2,5mm², Connectable conductor cross section multi-wired 0,08 ... 2,5mm², Type of electric connection Spring clamp connection, Connectable cable type Tubular cable, Material of contact surface Tin, Material contact Other copper alloys, Material insulation body Thermoplastic, Material housing Plastic, Coating housing Not applicable, Colour housing Orange, Inflammability class of insulation material acc. with UL94 V0, Operation temperature -60 ... 100°C, Degree of protection (IP), mounted IP10

More product images:

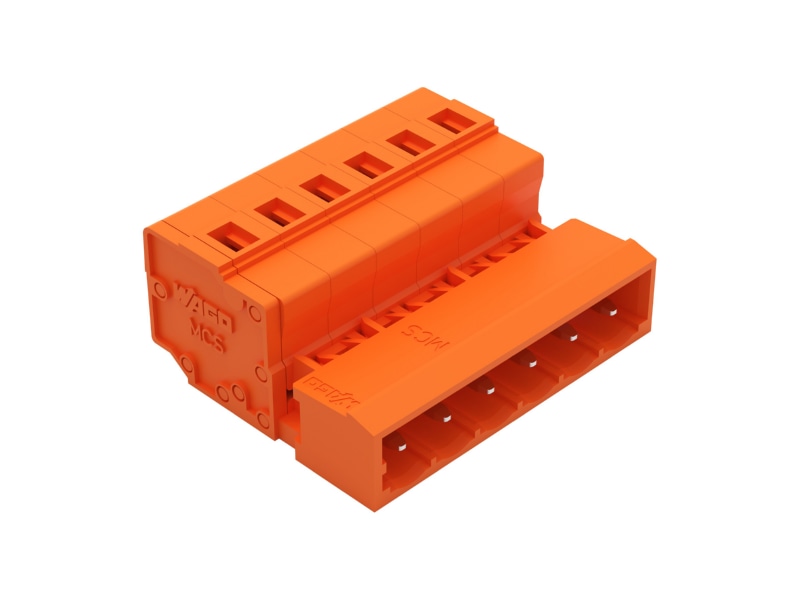

Product image WAGO 231 636 Cable connector for printed circuit
Product image

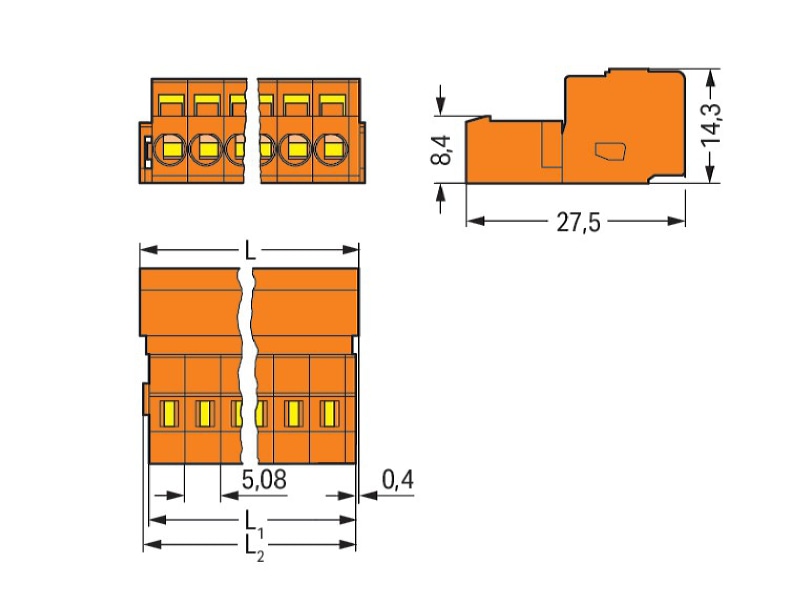

Dimensional drawing WAGO 231 636 Cable connector for printed circuit
Dimensional drawing
