Feed-through terminal block 5mm 20A 280-603
Source photo:
WAGO
(fig. might be different or similar)

Feed-through terminal block 5mm 20A 280-603

EAN/GTIN: 4044918311113
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 280-603
Customs tariff no.: 85369010
Order level:
(minimum)
100 pce
Similar top items: Show now & compare
133,73 EUR Price incl. tax. 19,00%
(for 100 pce)
plus shipping
Delivery time:
12 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 100 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Connectable conductor cross section fine-strand without cable end sleeve=0,08..2,5 mm², Connectable conductor cross section fine-strand with cable end sleeve=0,08..2,5 mm², Connectable conductor cross section solid-core=0,08..2,5 mm², Connectable conductor cross section multi-wired=0,08..2,5 mm², Rated current In=20 A, Rated voltage=800 V, Type of electrical connection 1=Spring clamp connection, Type of electrical connection 2=Spring clamp connection, Number of levels=1, Number of clamp positions per level=4, Mounting method=DIN rail (top hat rail) 35 mm, Material insulation body=Thermoplastic, Operating temperature=105 °C, Inflammability class of insulation material according to with UL94=V0, Width=5 mm, Depth=75 mm, Explosion-tested version ´Ex e´=no, Closing plate required=yes, Colour=Orange, Internally connected stages=no

More product images:

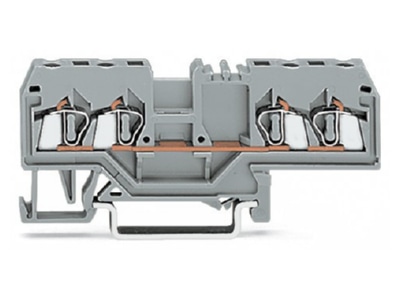

Product image WAGO 280 603 Feed through terminal block 5mm 20A
Product image

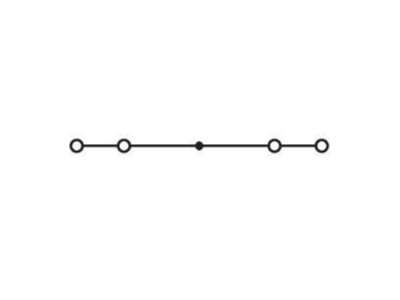

Circuit diagram WAGO 280 603 Feed through terminal block 5mm 20A
Circuit diagram
