Ground terminal block 1-p 3,5mm 2000-2257
Source photo:
WAGO
(fig. might be different or similar)

Ground terminal block 1-p 3,5mm 2000-2257

EAN/GTIN: 4055143274104
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 2000-2257
Customs tariff no.: 85369010
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
164,41 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
12 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Ground terminal block 1-p 3,5mm PEN function possible, Connectable conductor cross section fine-strand without cable end sleeve 0,14 ... 1,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 0,75mm², Connectable conductor cross section solid-core 0,5 ... 1,5mm², Connectable conductor cross section multi-wired 0,14 ... 1mm², Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operating temperature 105 ... 105°C, Inflammability class of insulation material according to with UL94 V0, Width 3,5mm, Depth 70mm, Closing plate required, Colour Other

More product images:

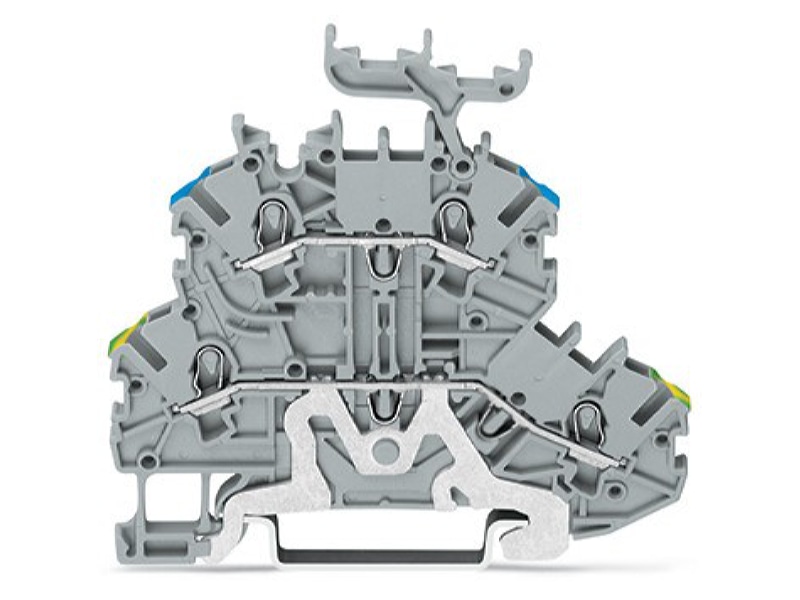

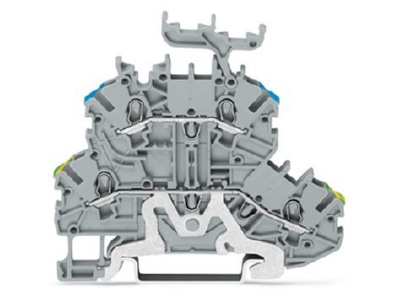

Product image WAGO 2000 2257 Ground terminal block 1 p 3 5mm
Product image

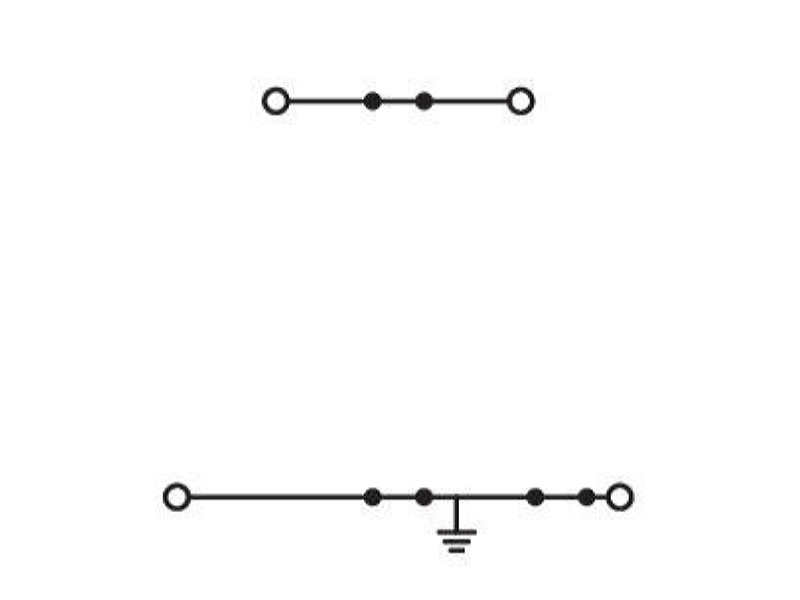

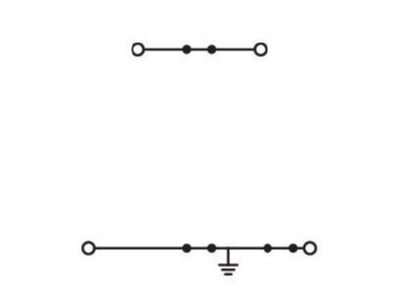

Circuit diagram WAGO 2000 2257 Ground terminal block 1 p 3 5mm
Circuit diagram
