Disconnect terminal block 30A 1-p 8mm 282-695
Source photo:
WAGO
(fig. might be different or similar)

Disconnect terminal block 30A 1-p 8mm 282-695

EAN/GTIN: 4050821234494
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 282-695
Customs tariff no.: 85365080
Order level:
(minimum)
25 pce
Similar top items: Show now & compare
84,36 EUR Price incl. tax. 19,00%
(for 25 pce)
plus shipping
Delivery time:
12 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 25 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Connectable conductor cross section fine-strand without cable end sleeve=0,2..6 mm², Connectable conductor cross section fine-strand with cable end sleeve=0,75..4 mm², Connectable conductor cross section solid-core=0,2..6 mm², Connectable conductor cross section multi-wired=0,2..6 mm², Rated current In=30 A, Rated voltage=400 V, Type of electrical connection 1=Spring clamp connection, Type of electrical connection 2=Spring clamp connection, Number of levels=1, Number of clamp positions per level=2, Internally connected stages=yes, Mounting method=DIN rail (top hat rail) 35 mm, Material insulation body=Thermoplastic, Inflammability class of insulation material according to with UL94=V0, Operating temperature=105 °C, Width=8 mm, Depth=85 mm, Closing plate required=yes, Colour=Blue, Type of slitting=None, Type of cross disconnection=None, With integrated test socket=no

More product images:

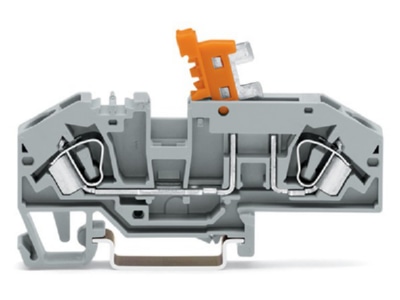

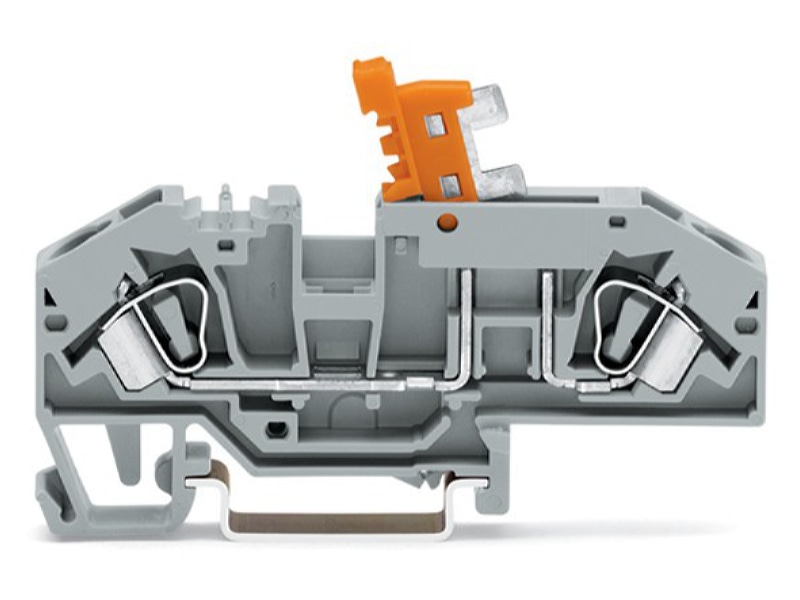

Product image WAGO 282 695 Disconnect terminal block 30A 1 p 8mm
Product image

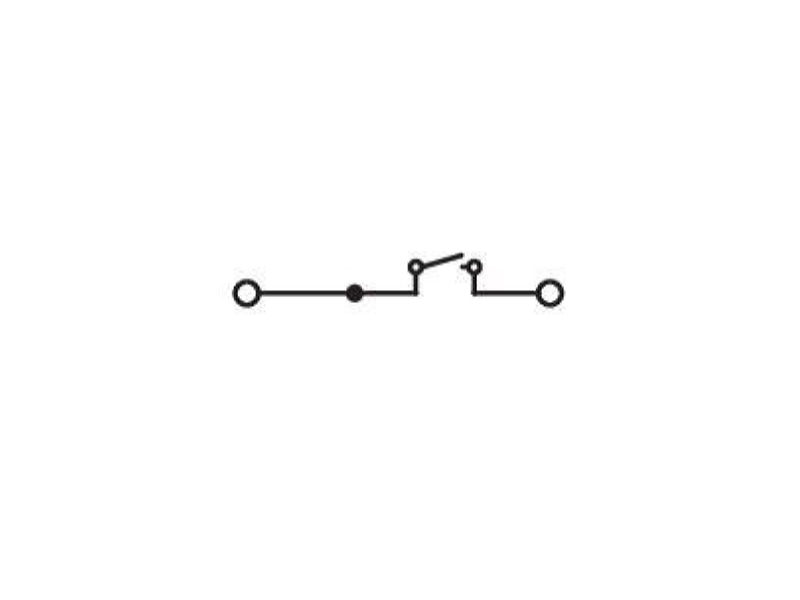

Circuit diagram WAGO 282 695 Disconnect terminal block 30A 1 p 8mm
Circuit diagram
