Device connector plug-in installation 770-713
Source photo:
WAGO
(fig. might be different or similar)

Device connector plug-in installation 770-713

EAN/GTIN: 4044918254199
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 770-713
Customs tariff no.: 85366990
Order level:
(minimum)
100 pce
Similar top items: Show now & compare
209,13 EUR Price incl. tax. 19,00%
(for 100 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 100 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Rated voltage=250 V, Rated current=25 A, Number of poles=3, Degree of protection (IP)=IP20, Connection type=Spring clamp connection, Model=Plug, Built-in version=Built-in part/plug-in connection, Angle of plug=Straight, Angle of inclination=0 °, Connection size thread=No thread connection, Connection cross section (fine-strand)=0,5..4 mm², Connection cross section (solid-core)=0,5..4 mm², Number of connections per pole=2, Pole codification=L, N, PE, Mechanical coding=yes, Colour coding/contact insert=Black, Colour of the separate adapter piece=Without adapter piece, Colour housing=Black, Locking mechanism=Integrated in plug-in connector, Max. continuous temperature resistance contact part=85 °C, Max. continuous temperature resistance strain relief=105 °C, Material housing=Polyamide (PA), Halogen free=yes, Contact material=Other, Surface treatment contacts=Other, Pollution degree=3, Continuity resistor=3 mOhm, Rated surge voltage=4 kV, Length=36 mm, Height=17,5 mm, Width=35,5 mm

More product images:

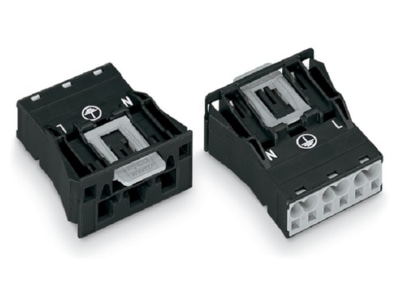

Product image WAGO 770 713 Device connector plug in installation
Product image

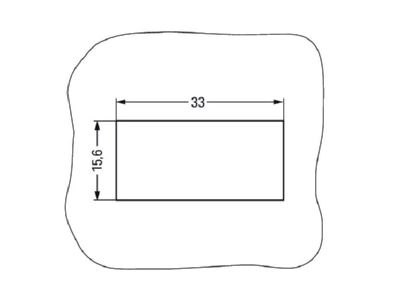

Dimensional drawing 1 WAGO 770 713 Device connector plug in installation
Dimensional drawing 1
Dimensional drawing 2 WAGO 770 713 Device connector plug in installation
Dimensional drawing 2
