Cable connector 231-108/026-000
Source photo:
WAGO
(fig. might be different or similar)

Cable connector 231-108/026-000

EAN/GTIN: 4044918339919
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 231-108/026-000
Customs tariff no.: 85366990
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
221,91 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
12 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Type of connection=Printed circuit board to cable, Contact type=Socket, Number of poles=8, Number of plug-in contact rows=1, Modular spacing contacts=5 mm, Modular spacing connections=5 mm, Angle contact/conductor connection=180° (horizontal), Rated current In=16 A, Rated voltage=320 V, Rated surge voltage=4 kV, Over voltage category=III, Pollution degree=2, Connectable conductor cross section fine-strand without cable end sleeve=0,08..2,5 mm², Connectable conductor cross section fine-strand with cable end sleeve=0,25..1,5 mm², Connectable conductor cross section solid-core=0,08..2,5 mm², Connectable conductor cross section multi-wired=0,08..2,5 mm², Type of electric connection=Spring clamp connection, Connectable cable type=Tubular cable, Material of contact surface=Tin, Material contact=Other copper alloys, Material insulation body=Thermoplastic, Material housing=Plastic, Colour housing=Grey, Inflammability class of insulation material according to with UL94=V0, With protective conductor=no, Operating temperature=-60..85 °C, Degree of protection (IP), mounted=IP20

More product images:

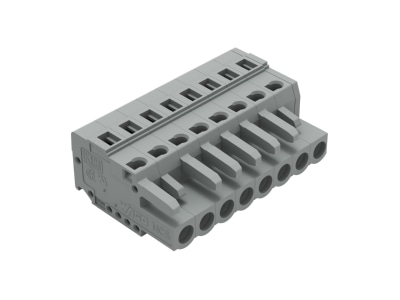

Product image WAGO 231 108 026 000 Cable connector
Product image

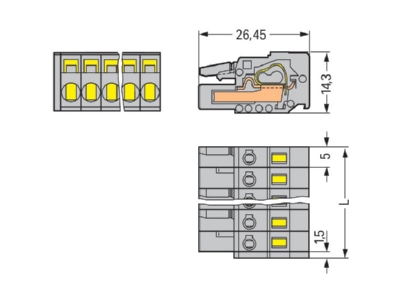

Dimensional drawing WAGO 231 108 026 000 Cable connector
Dimensional drawing
