Wall-mounted gas boiler VC 1206/5 -5 E
Source photo:
Vaillant
(fig. might be different or similar)

Wall-mounted gas boiler VC 1206/5 -5 E

EAN/GTIN: 4024074662250
WEEE: DE 63643866
Manufacturer: Vaillant
Manufacturer no.: VC 1206/5 -5 E
Manufact.-SKU: 0010010781
Customs tariff no.: 85169000
Similar top items: Show now & compare
10.309,24 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Wall-mounted gas boiler Material heat exchanger Stainless steel, Material quality Sheet steel, Closed version, Operation as open model (air supply) possible, Nominal power, 80-60 °C 112kW, Nominal power, 50-30 °C 123,4kW, Nominal load upper value 123,4kW, Nominal load lower value 22,4kW, Suitable for natural gas, Burner controller, modulating, Max. supply temperature (operating temperature) 85°C, Max. allowable operating pressure 6bar, Min. operating pressure 1bar, Max. gas pre-pressure 25mbar, Min. gas pre-pressure 18mbar, Built-in pump circuit, Built-in pressure gauge, Built-in pressure relief valve, Height 960mm, Width 480mm, Depth 602mm, Connection supply External thread, Outer pipe diameter supply 41,91mm, Connection return External thread, Outer pipe diameter return 41,91mm, Connection, fuel Other, Outer pipe diameter fuel 33,249mm, Connection, air supply Sleeve, Nominal duct width, air supply 160mm, Connection, flue Sleeve, Nominal duct diameter, flue 110mm, Condensate connection Other, Outer pipe diameter condensate 19mm, Water heating energy efficiency (Nwh) 98%, Useful heat emission at nom. heat emission, operation at high temperature (P4) 110,985kW, Useful efficiency at nominal heat emission, operation at high temperature (n4) 87,91%, Supplementary electricity consumption at full load (ELmax) 0,16kW, Supplementary electricity consumption in standby-mode (Psb) 0,002kW

More product images:

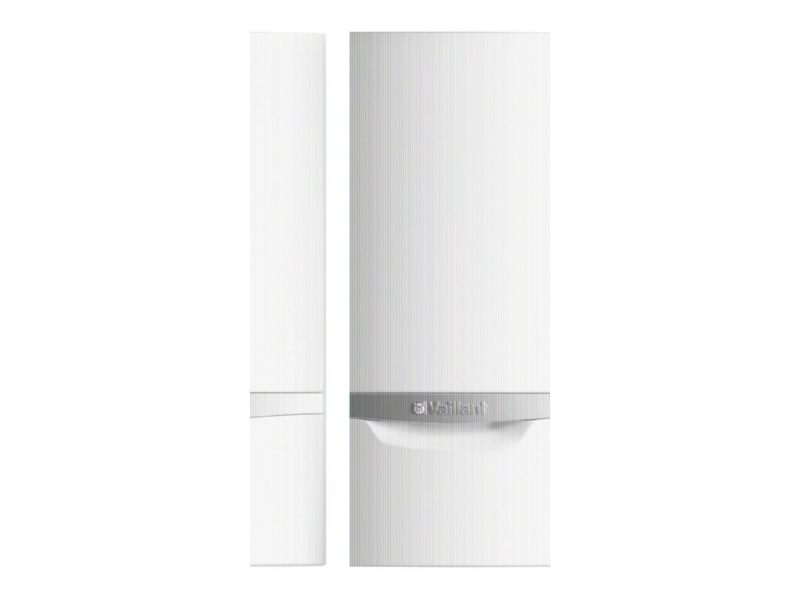

Product image Vaillant VC 1206 5  5 E Wall mounted gas boiler
Product image

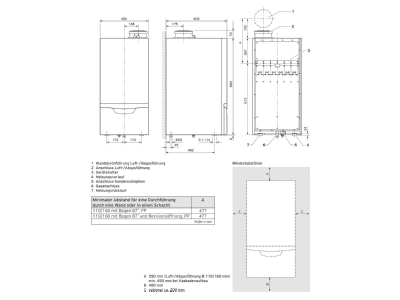

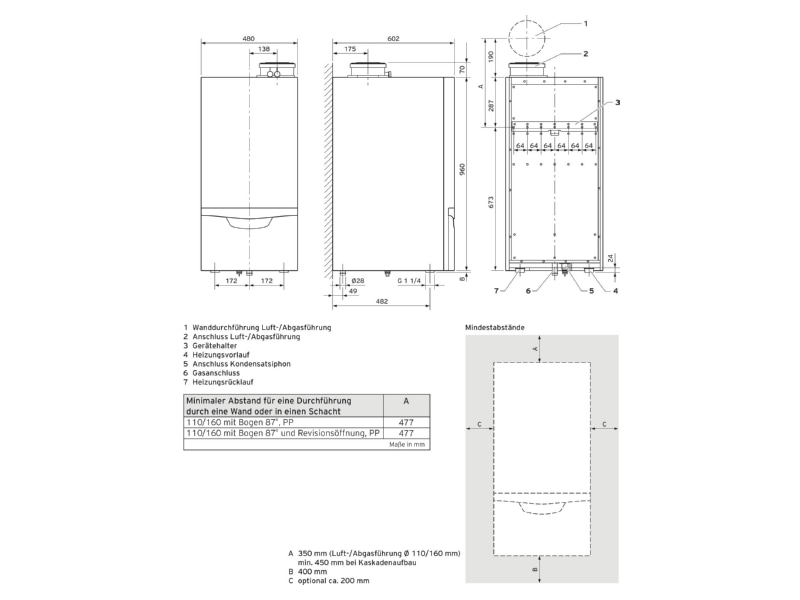

Dimensional drawing Vaillant VC 1206 5  5 E Wall mounted gas boiler
Dimensional drawing
