Instantaneous water heater 3,5kW miniVED H 3/3 N

EAN/GTIN: 4024074919798
WEEE: DE 63643866
Manufacturer: Vaillant
Manufacturer no.: miniVED H 3/3 N
Manufact.-SKU: 0010044423
Customs tariff no.: 85169000
Similar top items: Show now & compare
132,52 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

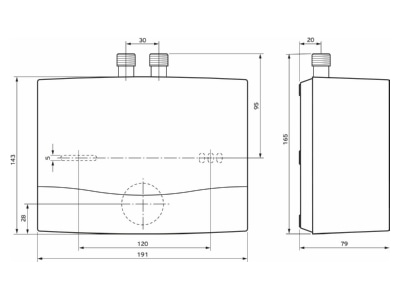

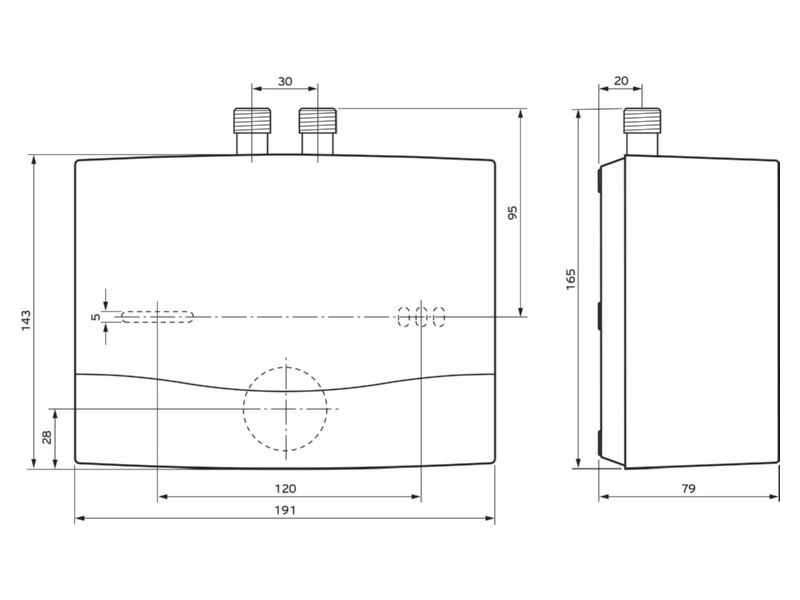

Energy efficiency class=A, Max. allowable operating pressure=1 bar, Nominal content=0,1 l, Material pressure tank=Plastic, Nominal power=3,5 kW, Nominal voltage 1=230 V, Nominal voltage 2=230 V, Suitable for KNX=no, Temperature indication=None, With display=no, Mounting method=Built-under, Power control=None, Connected load=3,5 kW, Heating system=Bare wire, Safety breaker=Pressure switch-off, Degree of protection (IP)=IP25, Cold tap water connection=External thread, Nominal diameter cold tap water=3/8 inch (10), Outer pipe diameter cold tap water=16,7 mm, Hot tap water connection=External thread, Nominal diameter hot tap water=3/8 inch (10), Outer pipe diameter hot tap water=16,7 mm, Suitable for plastic tube=yes, Suitable for preheated water=no, Type of regulation=Hydraulic, With tap/mixer=no, Height=143 mm, Width=191 mm, Depth=79 mm, Weight=1,4 kg

More product images:

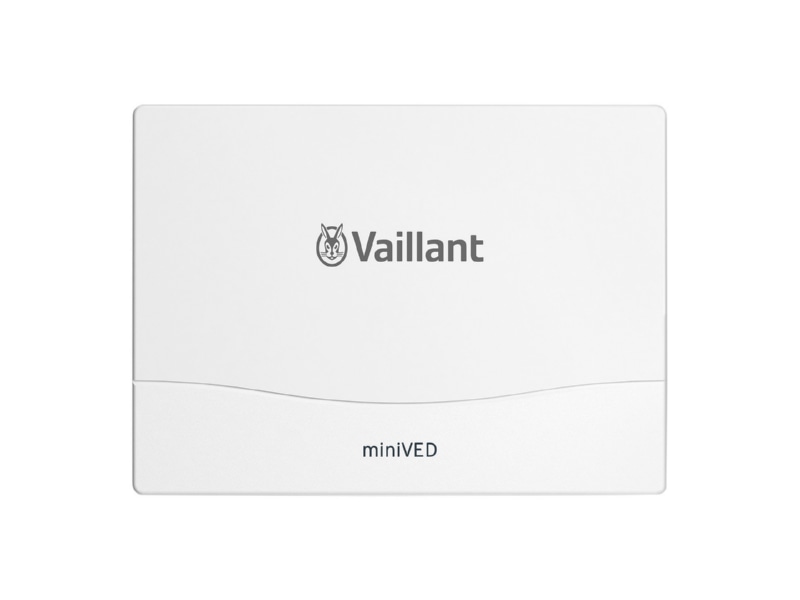

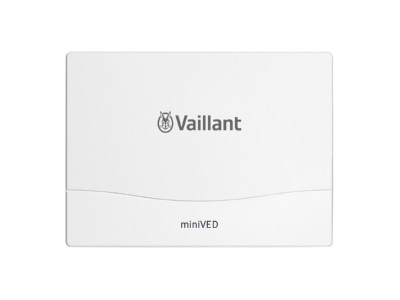

Front view Vaillant miniVED H 3/3 N Instantaneous water heater 3,5kW
Front view
View on the left Vaillant miniVED H 3/3 N Instantaneous water heater 3,5kW
View on the left
View on the right Vaillant miniVED H 3/3 N Instantaneous water heater 3,5kW
View on the right
Back view Vaillant miniVED H 3/3 N Instantaneous water heater 3,5kW
Back view
View up front Vaillant miniVED H 3/3 N Instantaneous water heater 3,5kW
View up front
View top left Vaillant miniVED H 3/3 N Instantaneous water heater 3,5kW
View top left
View top right Vaillant miniVED H 3/3 N Instantaneous water heater 3,5kW
View top right
Top rear view Vaillant miniVED H 3/3 N Instantaneous water heater 3,5kW
Top rear view
