Inductive proximity sensor 15mm DC8,2V Bi15-CP40-Y1X
Source photo:
Turck
(fig. might be different or similar)

Inductive proximity sensor 15mm DC8,2V Bi15-CP40-Y1X

EAN/GTIN: 4047101061987
WEEE: DE 71889523
Manufacturer: Turck
Manufacturer no.: Bi15-CP40-Y1X
Manufact.-SKU: 10110
Customs tariff no.: 85365019
Similar top items: Show now & compare
82,59 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

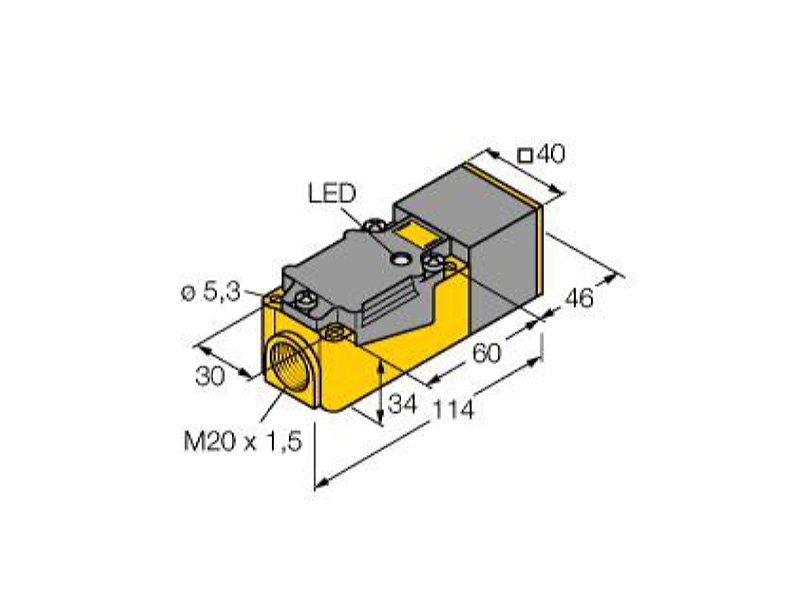

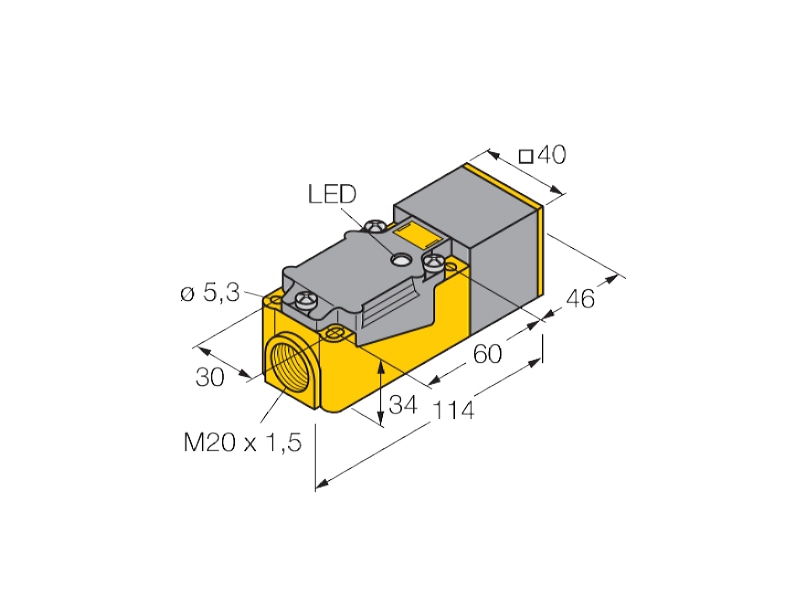

Width of the sensor 40 mm, Height of the sensor 40 mm, Length of the sensor 114 mm, Mechanical installation condition for sensor flush, Operating distance 15 mm, Suitable for safety functions yes, Type of switching output NAMUR, Type of electrical connection Clamp, Type of operation metallic target, Housing construction Cuboid, Coating of housing other, SIL according to IEC 61508 2, Performance level according to EN ISO 13849-1 Level c, Rated control supply voltage Us for DC 8.2V, Voltage DC, Switching frequency 150 Hz, Material of the housing Plastic, Pressure-resistant no
