Coaxial cable 75Ohm white SK100plus Sp250
Source photo:
Televes
(fig. might be different or similar)

Coaxial cable 75Ohm white SK100plus Sp250

EAN/GTIN: 8424450174180
WEEE: DE 88009665
Manufacturer: Televes
Manufacturer no.: SK100plus Sp250
Manufact.-SKU: 413602
Customs tariff no.: 85444920
Order level:
(minimum)
250 meter
Similar top items: Show now & compare
179,72 EUR Price incl. tax. 19,00%
(for 250 meter)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 250 meter orderable.
meter

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

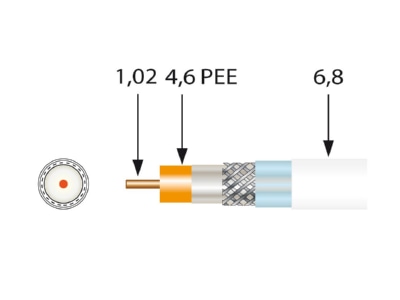

Coaxial cable 75Ohm white Diameter inner conductor 1,02mm, Inner conductor material Copper, Inner conductor surface Bare, Inner conductor category Class 1 = solid, Diameter outer conductor 4,6mm, Outer conductor material Aluminium, Outer conductor surface Bare, Type of outer conductor Foil + braiding, Dielectric Foamed PE, Number of screen layers 3, Material outer sheath Polyvinyl chloride (PVC), Specification material outer sheath Other, Colour outer sheath White, Reaction-to-fire class according to EN 13501-6 Eca, Smoke development class according to EN 13501-6 None, Euro class flaming droplets/particles according to EN 13501-6 None, Euro class acidity according to EN 13501-6 None, Characteristic impedance 75Ohm, Outer diameter approx. 6,8mm, Min. permitted bending radius, stationary application/permanent installation 33,5mm, Permitted cable outer temperature during assembling/handling -5 ... 60°C, Permitted cable outer temperature after assembling without vibration -15 ... 65°C

More product images:

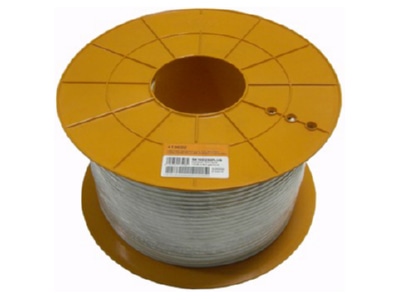

Product image 1 Televes SK100plus Sp250 Coaxial cable 75Ohm white
Product image 1
Product image 2 Televes SK100plus Sp250 Coaxial cable 75Ohm white
Product image 2
