Coaxial cable 120dB 1,0/4,6mm 100m, SK2000plus Sp100
Source photo:
Televes
(fig. might be different or similar)

Coaxial cable 120dB 1,0/4,6mm 100m, SK2000plus Sp100

EAN/GTIN: 4031136021917
WEEE: DE 88009665
Manufacturer: Televes
Manufacturer no.: SK2000plus Sp100
Manufact.-SKU: 4138
Customs tariff no.: 85444920
Order level:
(minimum)
100 meter
Similar top items: Show now & compare
107,41 EUR Price incl. tax. 19,00%
(for 100 meter)
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 100 meter orderable.
meter

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Coaxial cable 75Ohm white Diameter inner conductor 1,02mm, Inner conductor material Copper, Inner conductor surface Bare, Inner conductor category Class 1 = solid, Diameter outer conductor 4,6mm, Outer conductor material Copper, Outer conductor surface Tinned, Type of outer conductor Foil + braiding, Dielectric Foamed PE, Number of screen layers 3, Material outer sheath Polyvinyl chloride (PVC), Specification material outer sheath Other, Colour outer sheath White, Reaction-to-fire class according to EN 13501-6 Eca, Smoke development class according to EN 13501-6 None, Euro class flaming droplets/particles according to EN 13501-6 None, Euro class acidity according to EN 13501-6 None, Characteristic impedance 75Ohm, Outer diameter approx. 6,7mm, Min. permitted bending radius, stationary application/permanent installation 33,5mm, Permitted cable outer temperature during assembling/handling -5 ... 60°C, Permitted cable outer temperature after assembling without vibration -15 ... 65°C

More product images:

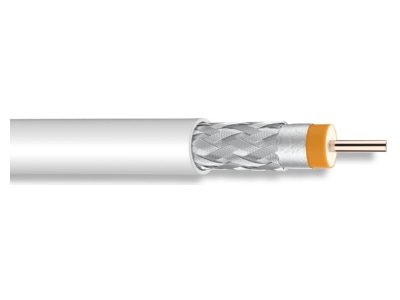

Product image Televes SK2000plus Sp100 Coaxial cable 120dB 1 0 4 6mm 100m
Product image

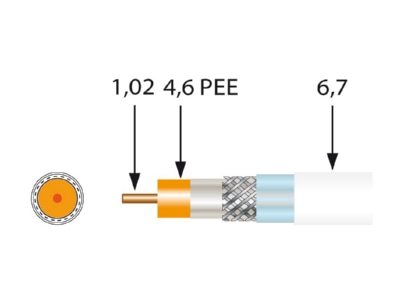

Dimensional drawing Televes SK2000plus Sp100 Coaxial cable 120dB 1 0 4 6mm 100m
Dimensional drawing
