Staircase lighting timer 0,5...20min ELPA 3

EAN/GTIN: 4003468010501
WEEE: DE 48221059
Manufacturer: THEBEN
Manufacturer no.: ELPA 3
Manufact.-SKU: 0030002
Customs tariff no.: 91070000
Similar top items: Show now & compare
41,28 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Staircase lighting timer 0,5...20min Function Electronic, Mounting method DIN rail, Width in number of modular spacings 1, Built-in depth 60mm, Number of contacts as normally open contact 1, Number of contacts as normally closed contact 0, Number of contacts as change-over contact 0, Control voltage 1 220 ... 240V, Type of control voltage 1 AC, Frequency control voltage 1 50 ... 60Hz, Control voltage 2 8 ... 240V, Type of control voltage 2 AC/DC, Frequency control voltage 2 0 ... 60Hz, Rated switch current 16A, Max. switching current (cos phi = 0.6) 10A, Release-delay 0,5 ... 20min, Push button glow-lamp current 150mA, Wiring system 3 and 4 wire configuration, Pre-warning of switching-off None, Repetitive Repetitive, Supply voltage 220 ... 240V, Voltage type of supply voltage AC, Max. incandescent lamp load 2300W, Max. load fluorescent lamp 2300VA, Max. load fluorescent lamp (Duo circuit) 2300VA, Max. load fluorescent lamp (parallel compensated) 400VA

More product images:

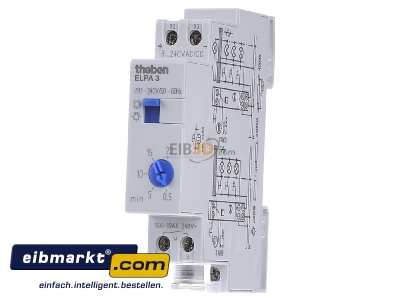

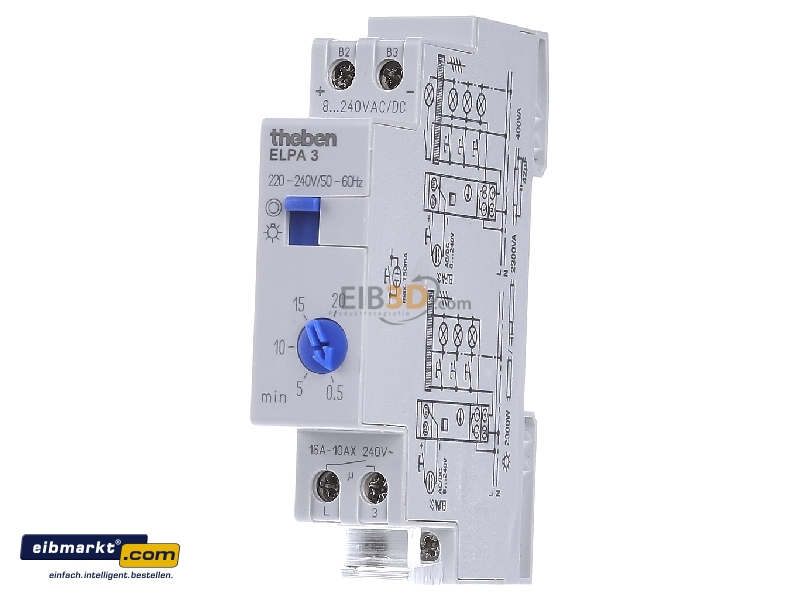

Front view Theben ELPA 3 Staircase lighting timer 0,5...20min -
Front view

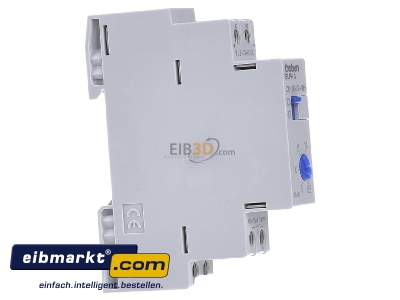

View on the left Theben ELPA 3 Staircase lighting timer 0,5...20min -
View on the left

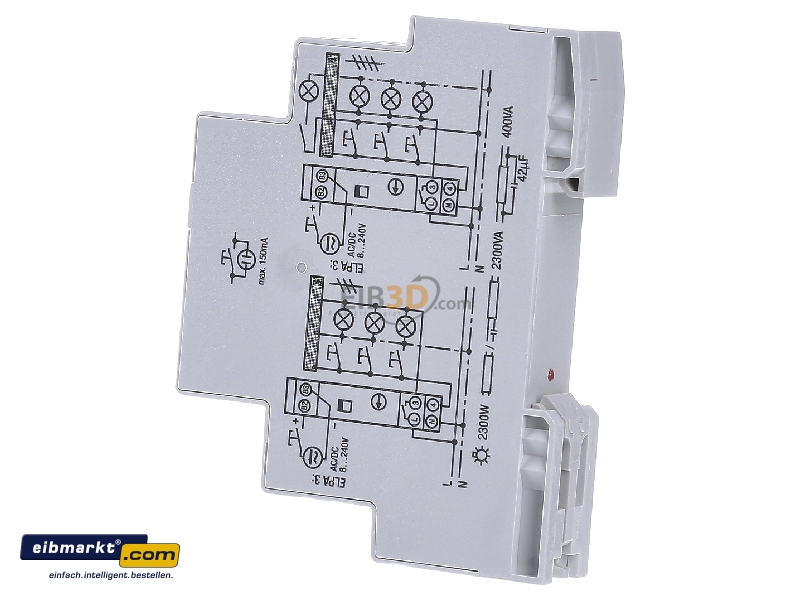

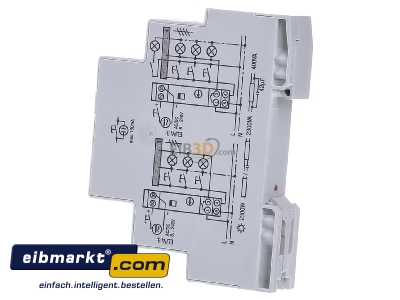

View on the right Theben ELPA 3 Staircase lighting timer 0,5...20min -
View on the right

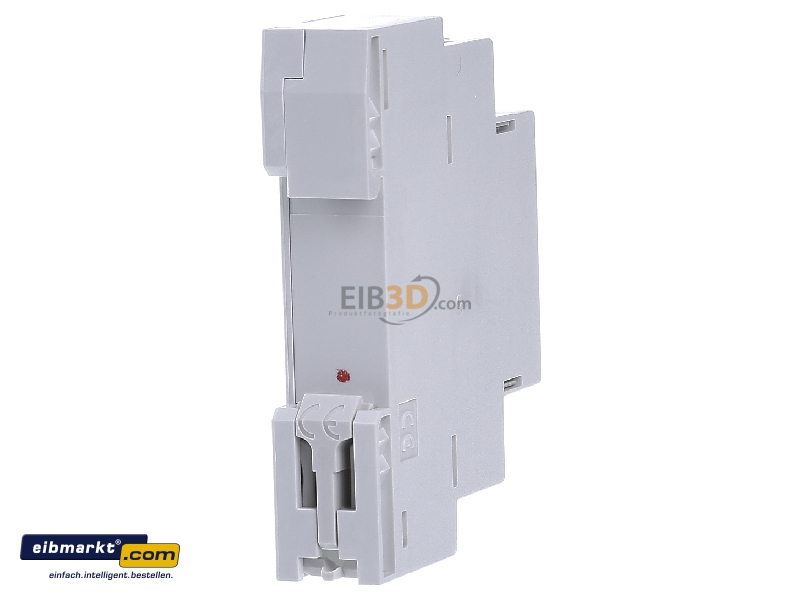

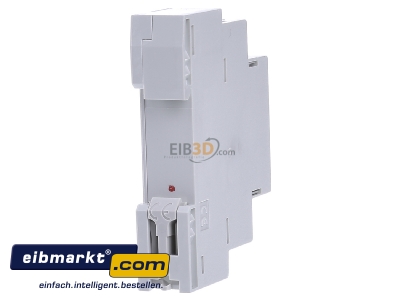

Back view Theben ELPA 3 Staircase lighting timer 0,5...20min -
Back view

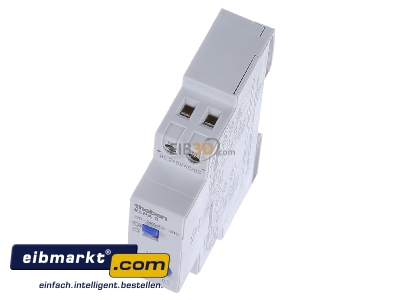

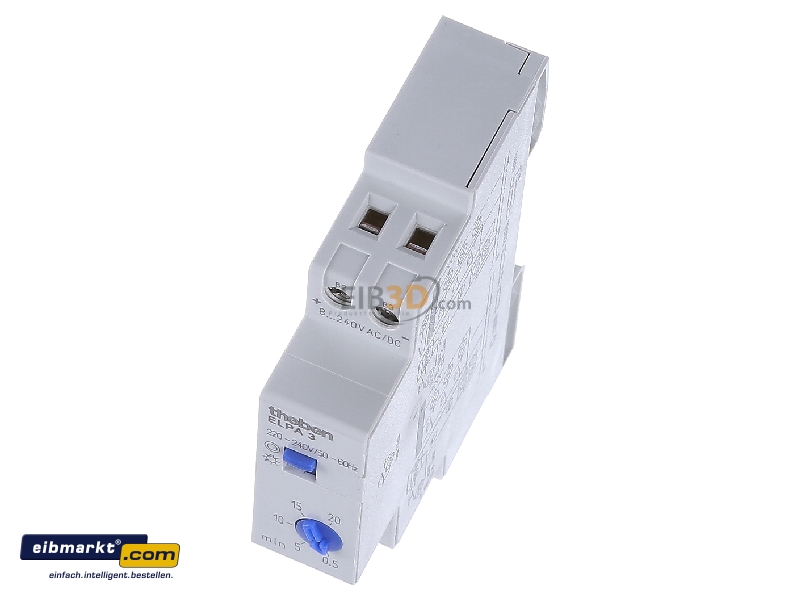

View up front Theben ELPA 3 Staircase lighting timer 0,5...20min -
View up front
View top left Theben ELPA 3 Staircase lighting timer 0,5...20min -
View top left

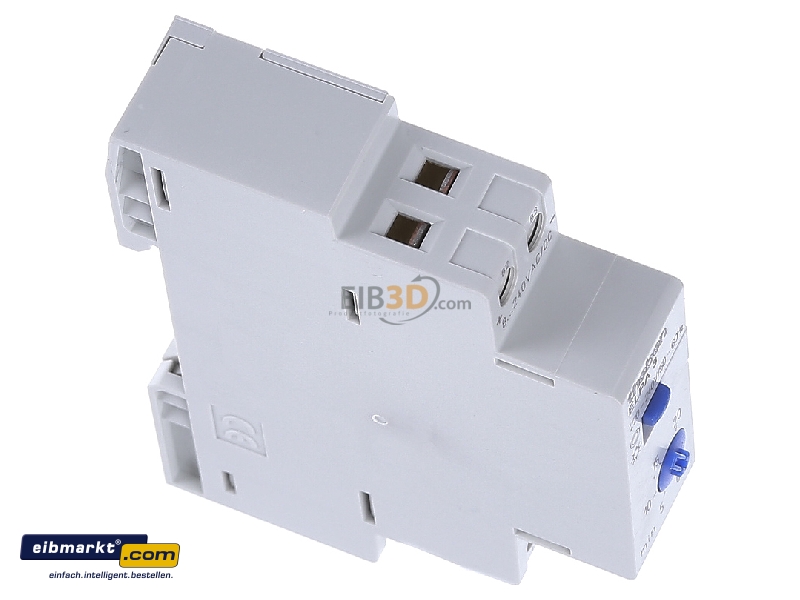

View top right Theben ELPA 3 Staircase lighting timer 0,5...20min -
View top right

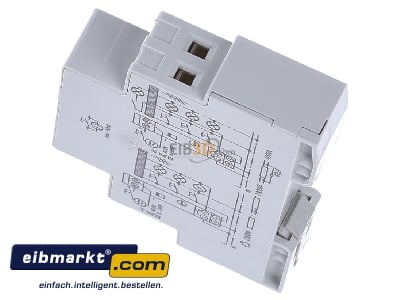

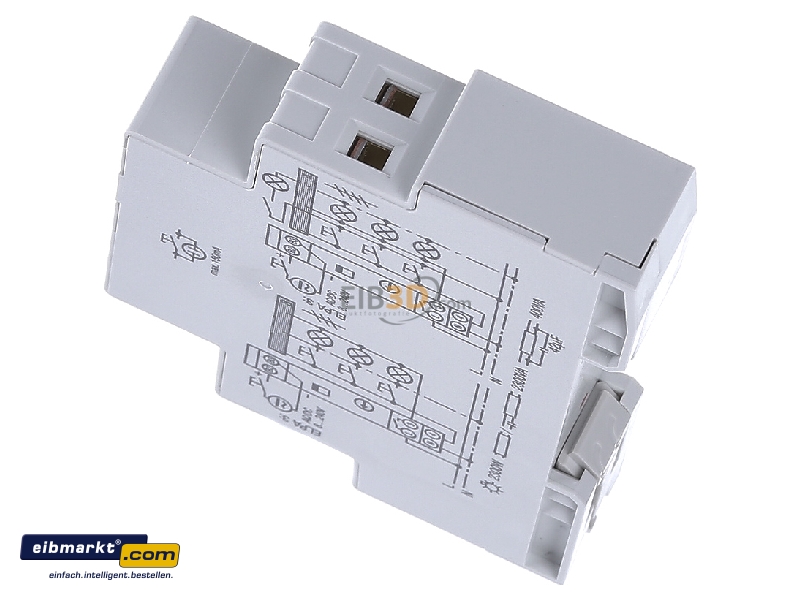

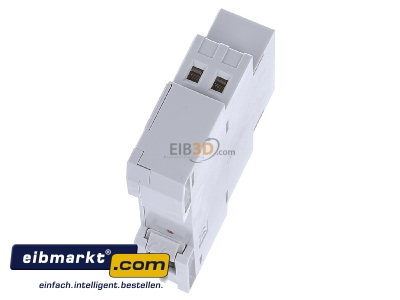

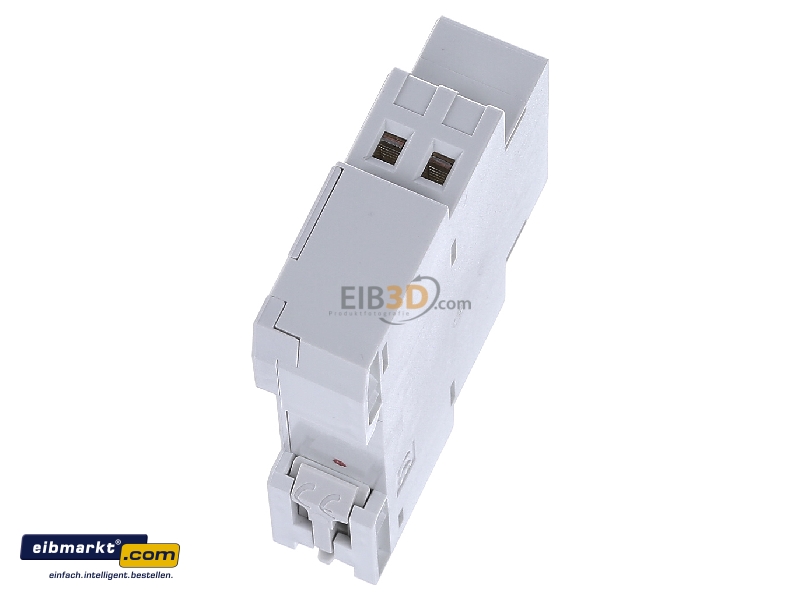

Top rear view Theben ELPA 3 Staircase lighting timer 0,5...20min -
Top rear view
Product image Theben ELPA 3 Staircase lighting timer 0 5   20min
Product image

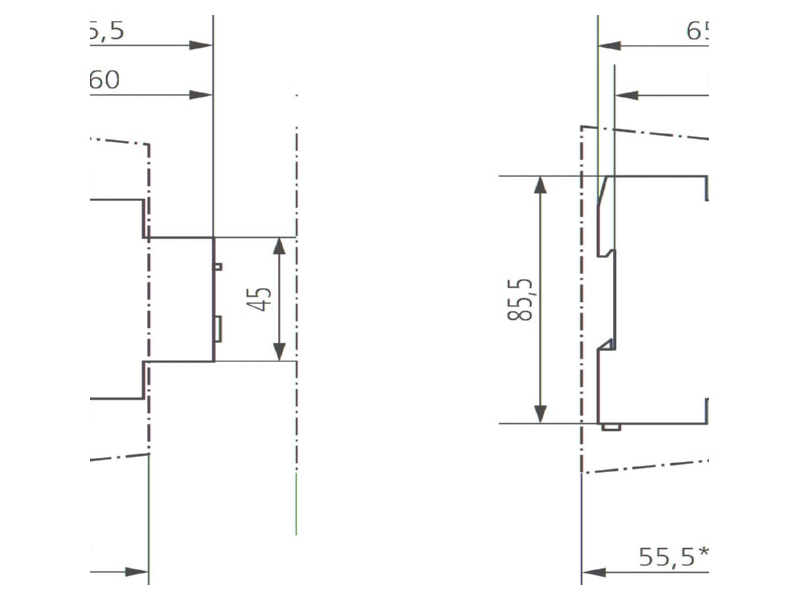

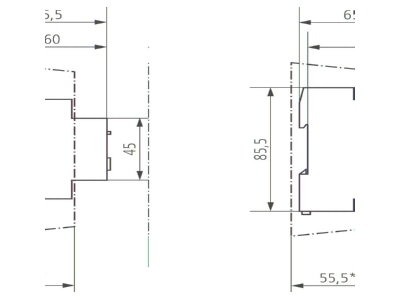

Dimensional drawing Theben ELPA 3 Staircase lighting timer 0 5   20min
Dimensional drawing
