Plunger switch IP66/IP67 3SE5112-0CC02

EAN/GTIN: 4011209692138
WEEE: DE 23691322
Manufacturer: SIEMENS
Manufacturer no.: 3SE5112-0CC02
Customs tariff no.: 85365080
Similar top items: Show now & compare
50,04 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Plunger switch IP66/IP67 Width sensor 40mm, Height of sensor 37,3mm, Length of sensor 103,5mm, Rated operation current Ie at AC-15, 24 V 6A, Rated operation current Ie at AC-15, 125 V 6A, Rated operation current Ie at AC-15, 230 V 6A, Rated operation current Ie at DC-13, 24 V 3A, Rated operation current Ie at DC-13, 125 V 0,55A, Rated operation current Ie at DC-13, 230 V 0,27A, Switching function Quick-break switch, Forced opening, Number of safety auxiliary contacts 1, Number of contacts as normally closed contact 1, Number of contacts as normally open contact 1, Number of contacts as change-over contact 1, Type of interface None, Type of interface for safety communication None, Construction type housing Cuboid, Material housing Metal, Coating housing Varnished / enamel painted, Type of control element Plunger, Alignment of the control element Roller cam straight, Type of electric connection Cable entry metrical, Suitable for safety functions, Explosion safety category for gas None, Explosion safety category for dust None, Ambient temperature during operating -25 ... 85°C, Degree of protection (IP) IP66/IP67

More product images:

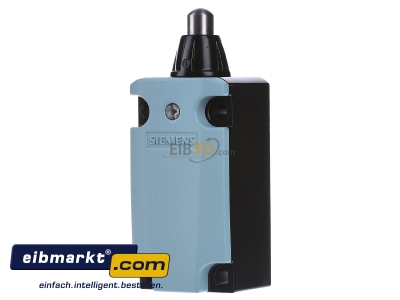

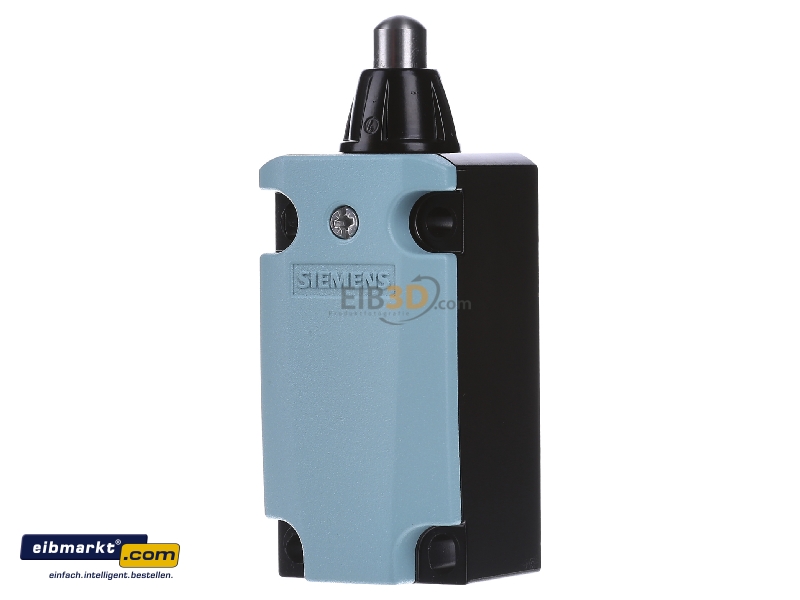

Front view Siemens Indus.Sector 3SE5112-0CC02 Plunger switch IP66/IP67
Front view

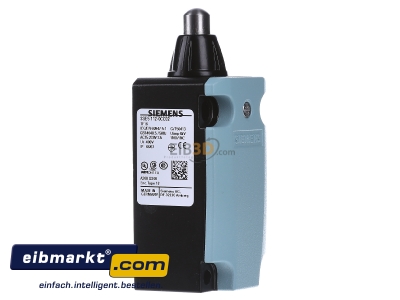

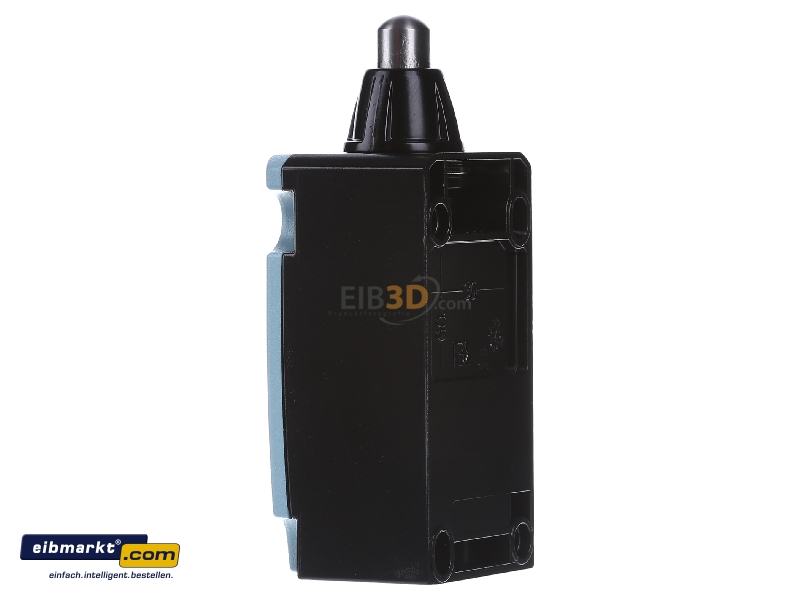

View on the left Siemens Indus.Sector 3SE5112-0CC02 Plunger switch IP66/IP67
View on the left

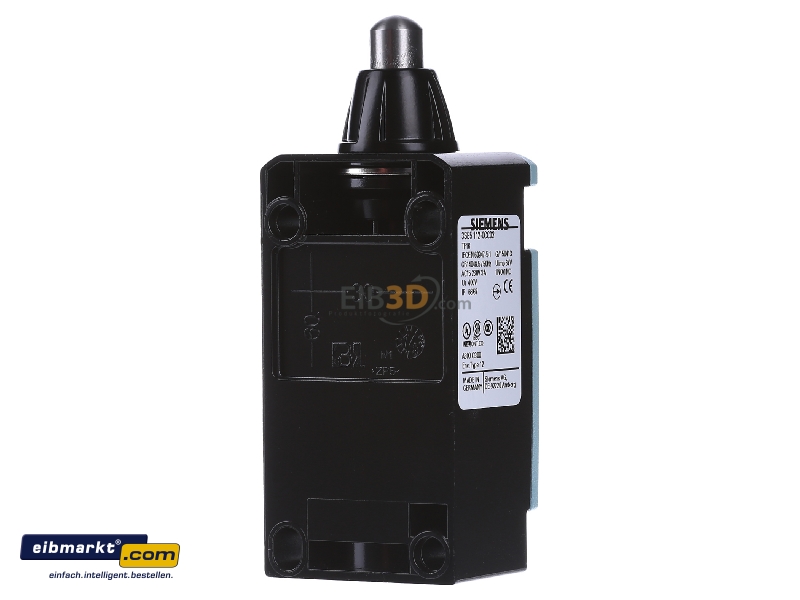

View on the right Siemens Indus.Sector 3SE5112-0CC02 Plunger switch IP66/IP67
View on the right

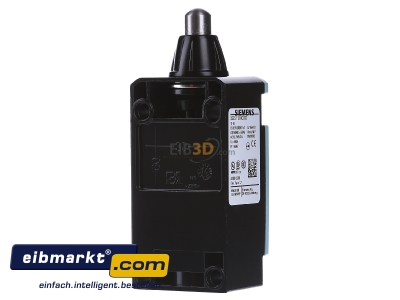

Back view Siemens Indus.Sector 3SE5112-0CC02 Plunger switch IP66/IP67
Back view

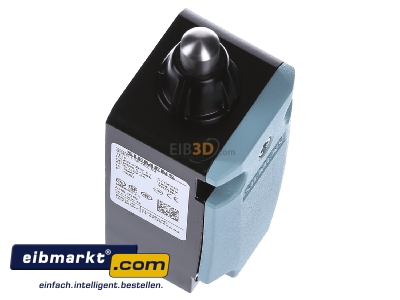

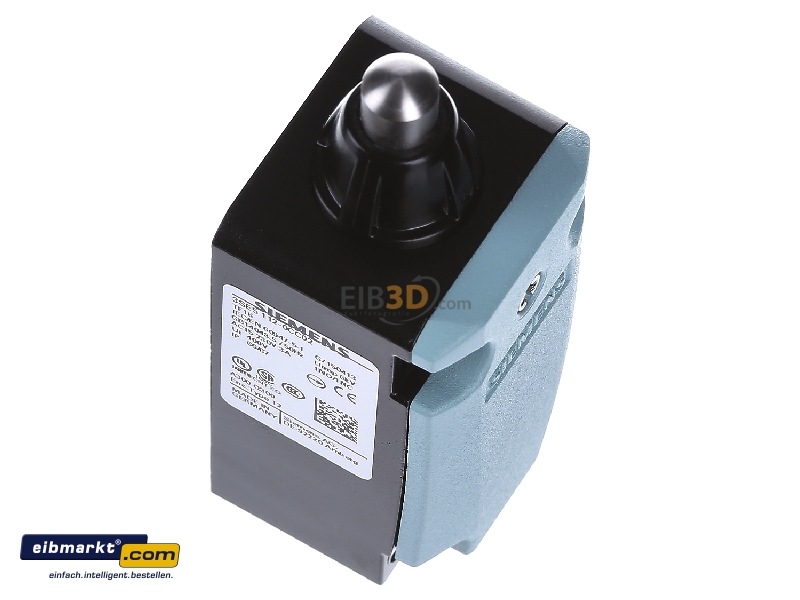

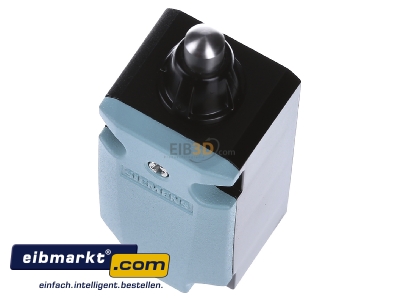

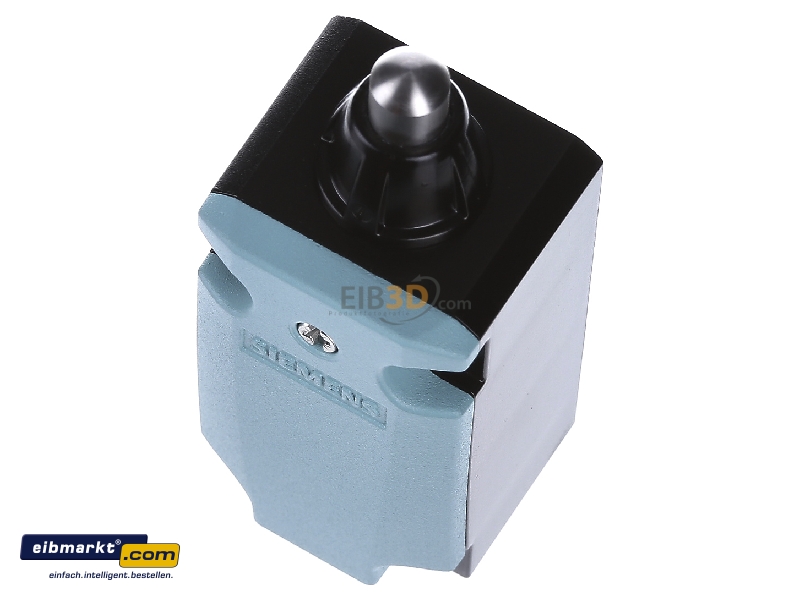

View up front Siemens Indus.Sector 3SE5112-0CC02 Plunger switch IP66/IP67
View up front
View top left Siemens Indus.Sector 3SE5112-0CC02 Plunger switch IP66/IP67
View top left

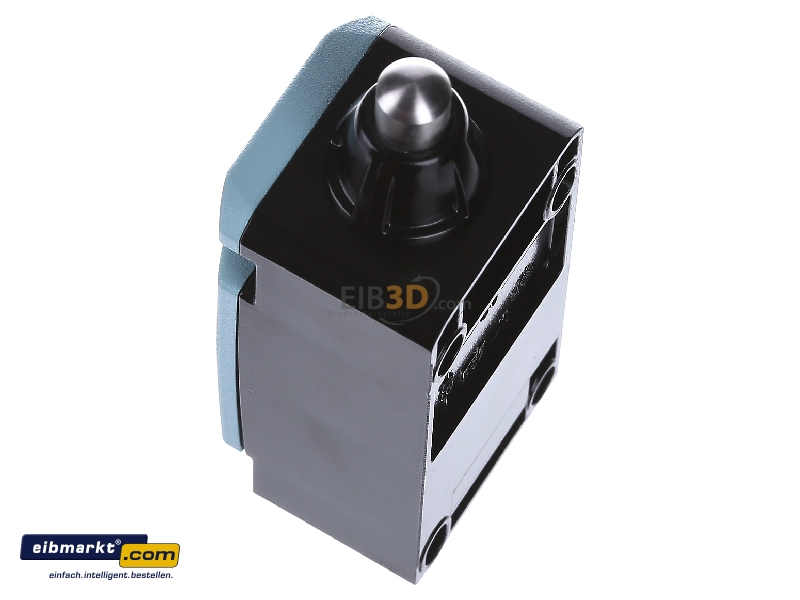

View top right Siemens Indus.Sector 3SE5112-0CC02 Plunger switch IP66/IP67
View top right

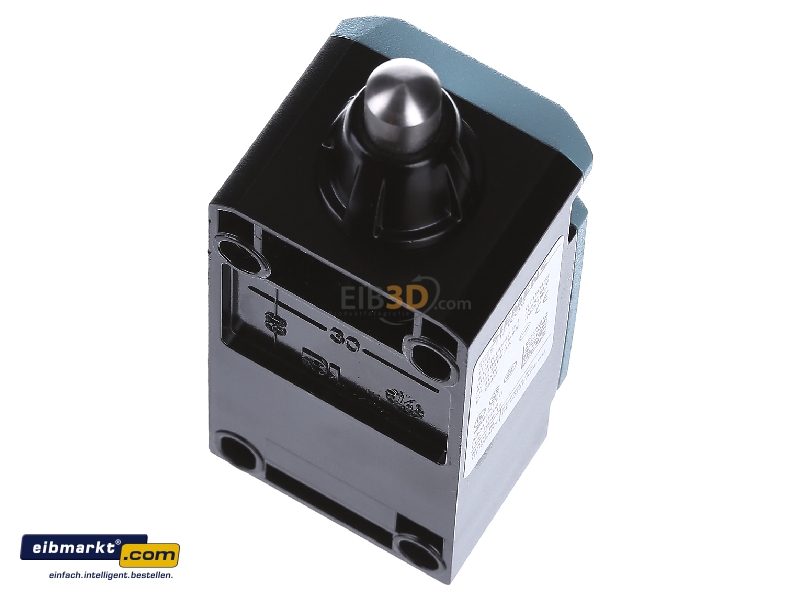

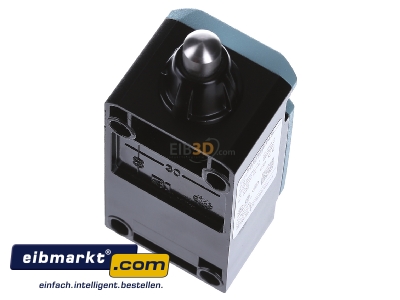

Top rear view Siemens Indus.Sector 3SE5112-0CC02 Plunger switch IP66/IP67
Top rear view
