Fieldbus digital module 4 In / 0 Out 3RK1205-0CQ00-0AA3

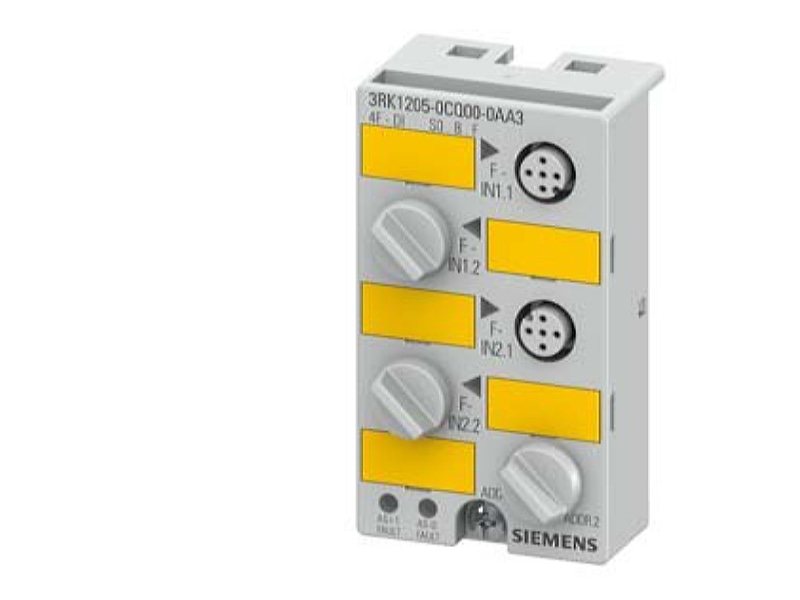

Source photo:
SIEMENS
(fig. might be different or similar)

Fieldbus digital module 4 In / 0 Out 3RK1205-0CQ00-0AA3

EAN/GTIN: 4011209664876
WEEE: DE 23691322
Manufacturer: SIEMENS
Manufacturer no.: 3RK1205-0CQ00-0AA3
Customs tariff no.: 85371098
Similar top items: Show now & compare
284,91 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
12 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Fieldbus digital module 4 In / 0 Out Supply voltage AC 50 Hz 0V, Supply voltage AC 60 Hz 0 ... 3V, Supply voltage DC 24 ... 24V, Voltage type of supply voltage DC, Number of digital inputs 4, Number of digital outputs 0, Input current at signal 1 5mA, Type of input voltage DC, Type of digital output None, Type of output voltage DC, Number of HW-interfaces industrial Ethernet 0, Number of interfaces PROFINET 0, Number of HW-interfaces RS-232 0, Number of HW-interfaces RS-422 0, Number of HW-interfaces RS-485 0, Number of HW-interfaces serial TTY 0, Number of HW-interfaces parallel 0, Number of HW-interfaces Wireless 0, Number of HW-interfaces USB 0, Number of HW-interfaces other 0, Supporting protocol for ASI, Supporting protocol for AS-Interface Safety at Work, System accessory, Degree of protection (IP) IP67, Type of electric connection Screw connection, Rail mounting possible, Wall mounting/direct mounting, Suitable for safety functions, Category according to EN 954-1 4, Performance level acc. EN ISO 13849-1 Level e, Explosion safety category for gas None, Explosion safety category for dust None, Width 45mm, Height 80mm, Depth 34mm

More product images:

Product image 1 Siemens 3RK1205 0CQ00 0AA3 Fieldbus digital module 4 In   0 Out
Product image 1
Product image 2 Siemens 3RK1205 0CQ00 0AA3 Fieldbus digital module 4 In   0 Out
Product image 2
