Accessory for Photovoltaic SMA Power Limiter
Source photo:
SMA Solar
(fig. might be different or similar)

Accessory for Photovoltaic SMA Power Limiter

WEEE: DE 95881150
Manufacturer: SMA Solar
Manufacturer no.: SMA Power Limiter
Manufact.-SKU: I-Box-40
Customs tariff no.: 85176200
Similar top items: Show now & compare
156,10 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Power Limiter inverter accessories SMA Power Limiter Type of accessory/spare part other, Suitable for photovoltaics, multifunctional interface for SB3.0-6.0-1AV-41 and STP3.0-10.0-3AV-40: The SMA Power Limiter provides network system services for up to three inverters reliably. Preconfigured operating modes enable the gradual reduction of the feed-in power according to EEG as well as rapid shutdown according to EN 50549-1. This means that solar systems in private homes ideally meet all the prescribed requirements for active power limitation. Network operators´ individual requirements for the curtailment time can also be easily adjusted via the configuration interface in the inverter. With its flexible assembly concept and the included RS485 connection cable, the SMA Power Limiter can be easily and quickly integrated into new and existing systems. Plug-and-play solution for DIN rails or wall mounting. Connection to the inverter using the system cable supplied. Pre-configured reduction levels 100%/60%/30%/0%. No separate power supply required. Number of digital inputs (ripple control receiver): 4 (closer), number of digital inputs (fast stop) 1 (closer), power supply via inverter 10 V to 18 V

More product images:

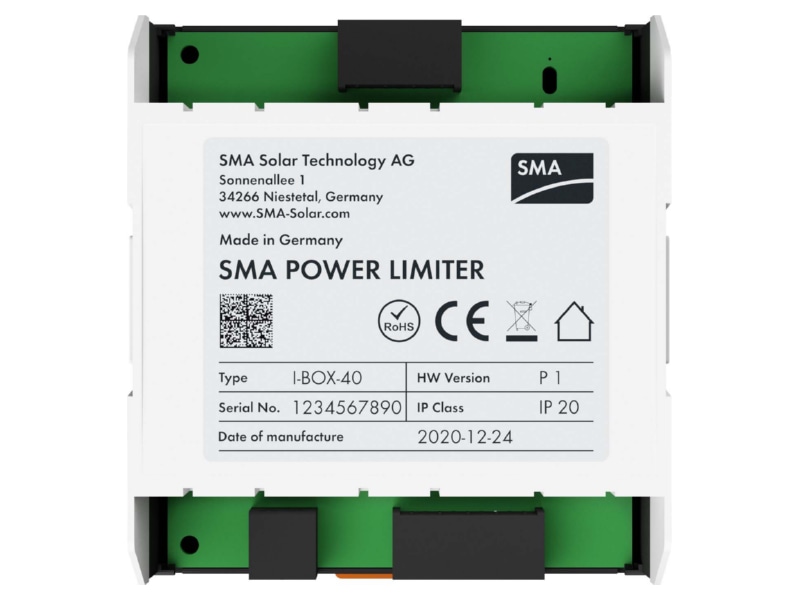

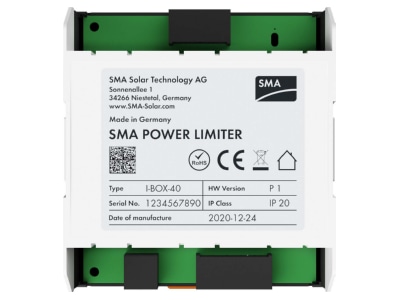

Product image SMA Solar SMA Power Limiter Accessory for Photovoltaic
Product image
Front view SMA Solar SMA Power Limiter Accessory for Photovoltaic
Front view

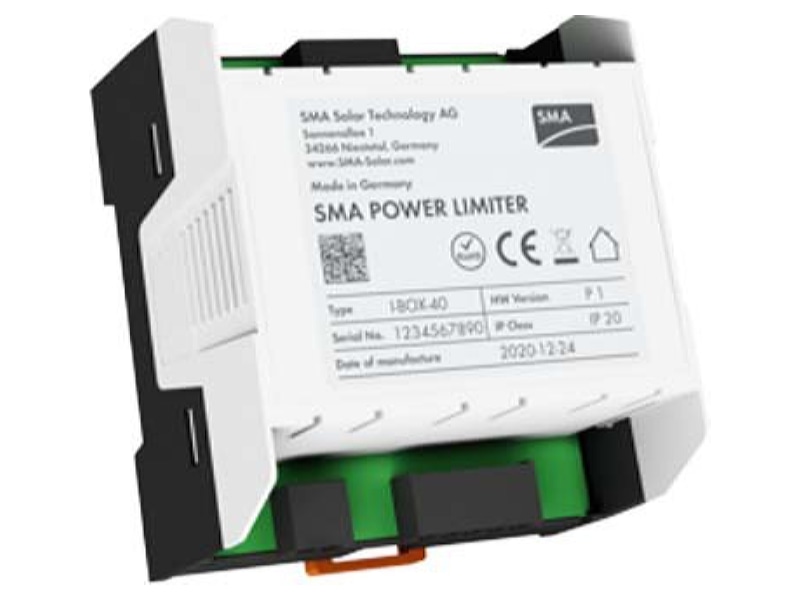

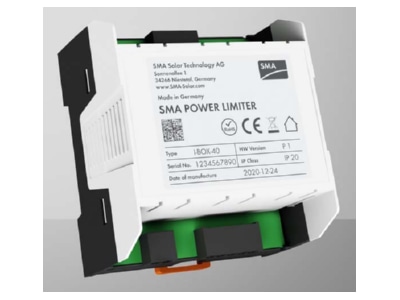

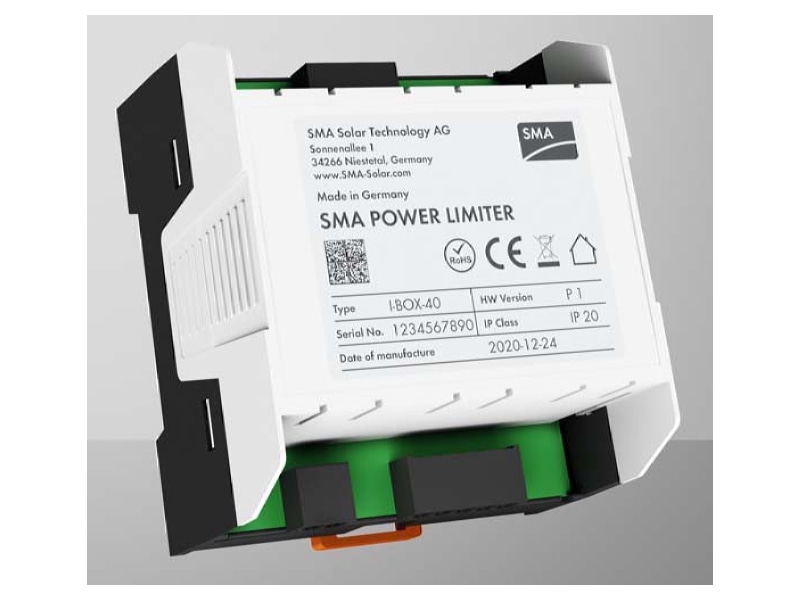

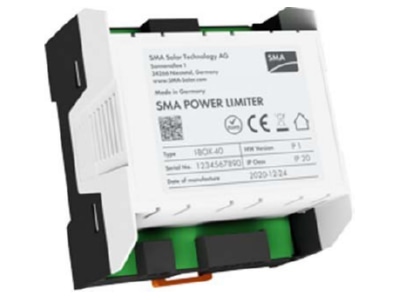

Angled view SMA Solar SMA Power Limiter Accessory for Photovoltaic
Angled view
