Accessory for Photovoltaic EMETER-20

EAN/GTIN: 0712971128484
WEEE: DE 95881150
Manufacturer: SMA Solar
Manufacturer no.: EMETER-20
Customs tariff no.: 90283019
Similar top items: Show now & compare
399,05 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Energy Meter EMETER-20 Type of accessory/spare part other, Suitable for photovoltaics, The powerful measuring solution for intelligent energy management in PV systems with SMA devices. The SMA Energy Meter determines phase-accurate and balanced electrical measured values and communicates them via Ethernet in the local network. This means that all data on grid feed-in and grid purchase or on PV generation from other PV inverters can be transmitted to the SMA systems with high accuracy and frequency. Communication Connection to the local router via Ethernet cable (10/100 Mbit/s, RJ45 plug), nominal voltage 230 V / 400 V, frequency 50 Hz, 60 Hz (tolerance 5%), nominal current 5 A, limit current 63 A, starting current > 25 mA, ambient temperature -25°C + 40°C, protection class II, protection class IP2X, permissible max. humidity 5% - 90%, suitable for top-hat rail mounting in control or meter cabinets, 4 subunits, status display with 2 LEDs, measuring accuracy 1%

More product images:

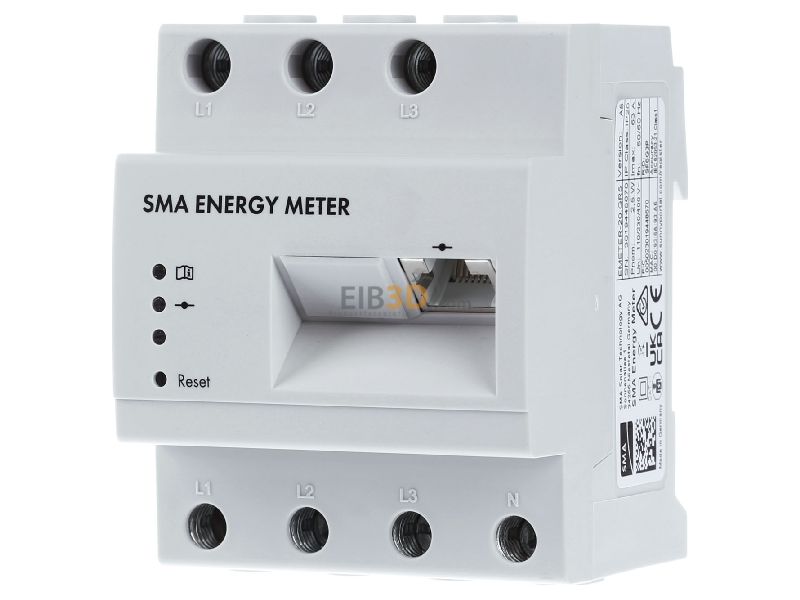

Front view SMA EMETER-20 Accessory for Photovoltaic
Front view

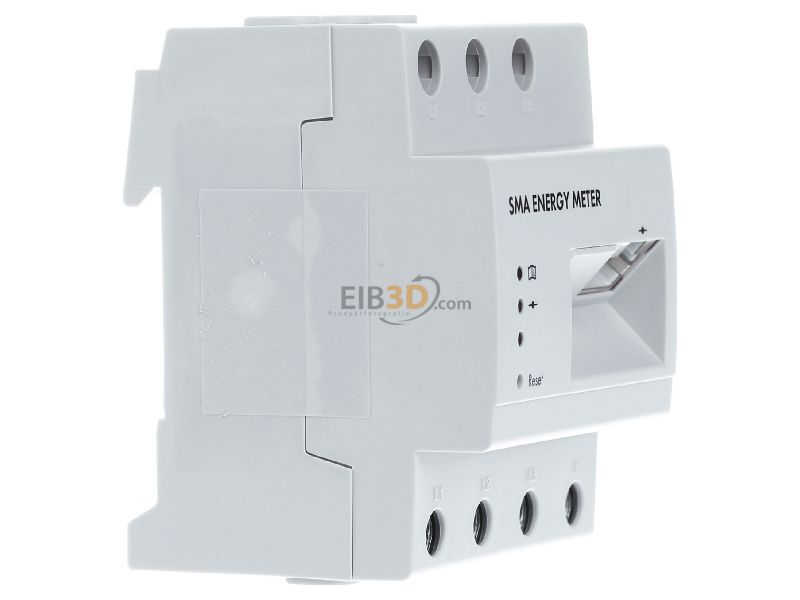

View on the left SMA EMETER-20 Accessory for Photovoltaic
View on the left

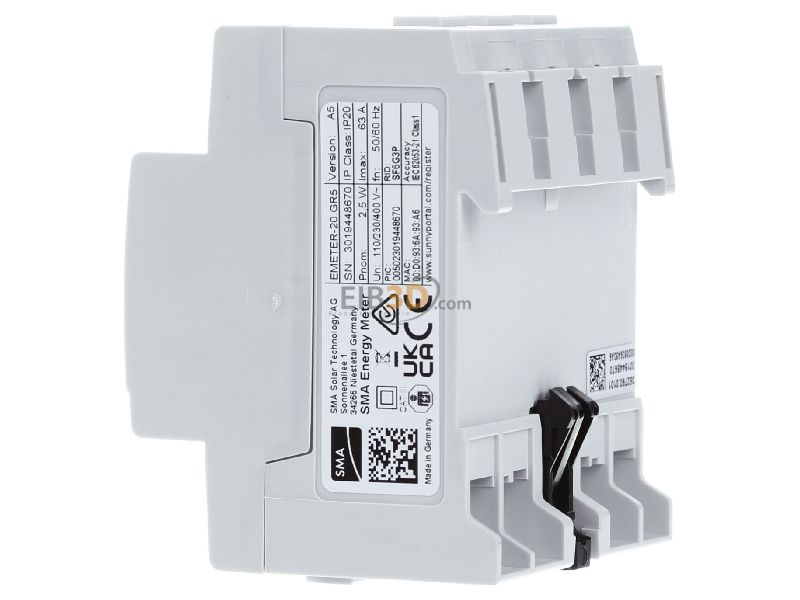

View on the right SMA EMETER-20 Accessory for Photovoltaic
View on the right

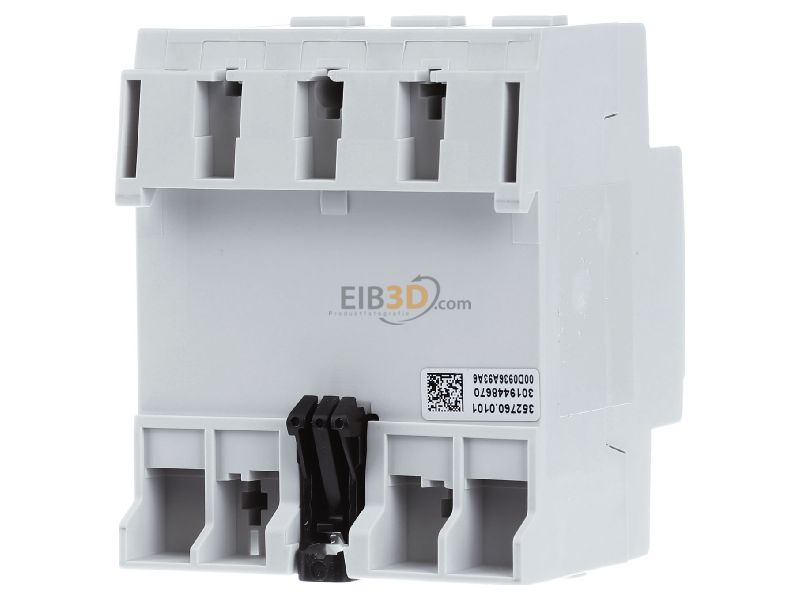

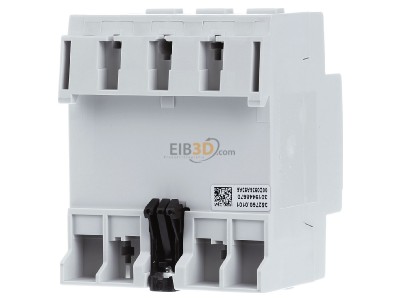

Back view SMA EMETER-20 Accessory for Photovoltaic
Back view

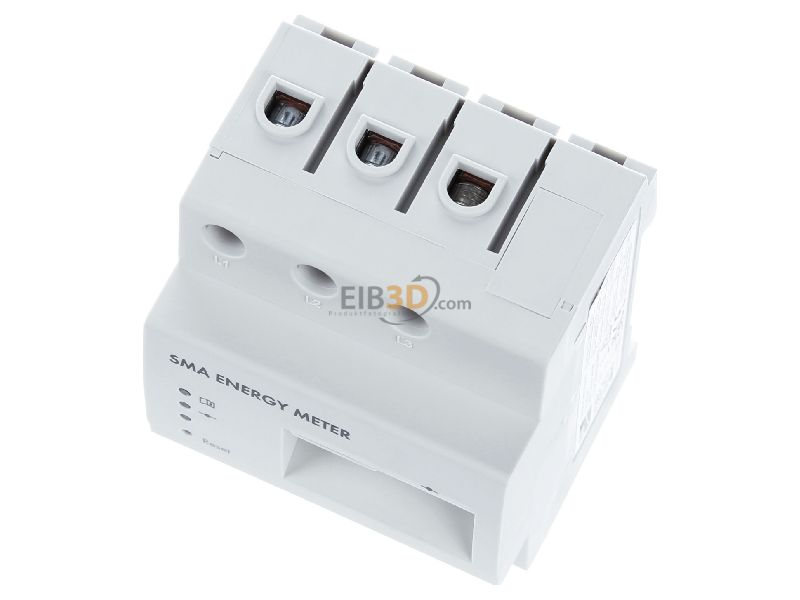

View up front SMA EMETER-20 Accessory for Photovoltaic
View up front

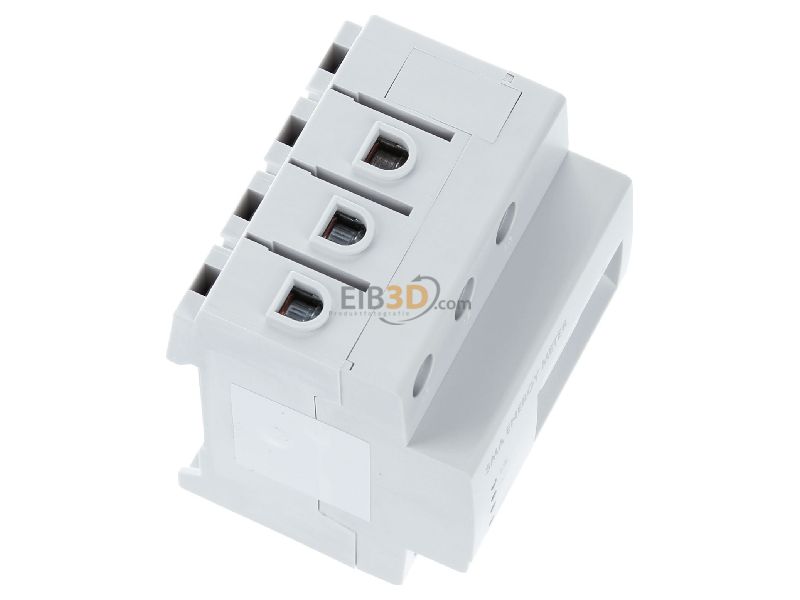

View top left SMA EMETER-20 Accessory for Photovoltaic
View top left
View top right SMA EMETER-20 Accessory for Photovoltaic
View top right

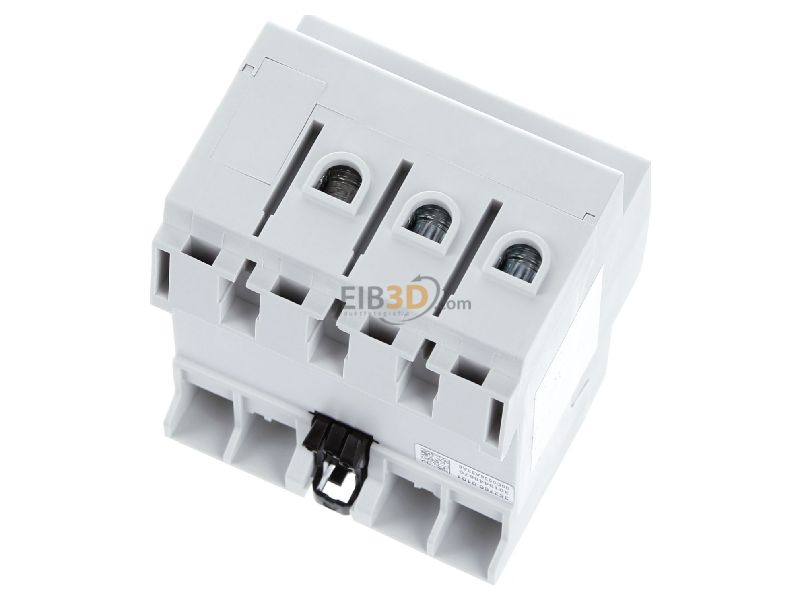

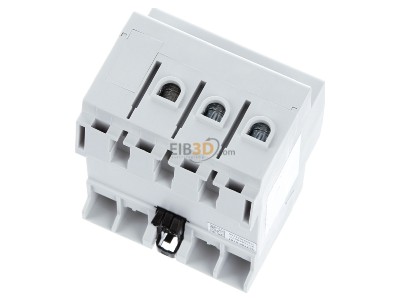

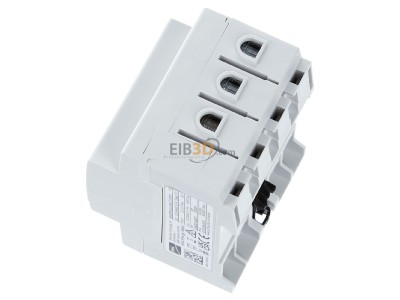

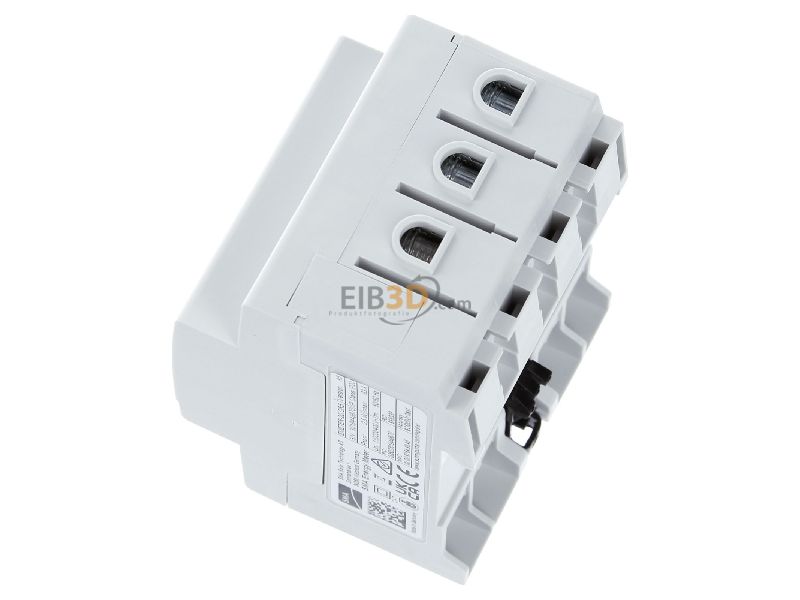

Top rear view SMA EMETER-20 Accessory for Photovoltaic
Top rear view
