Neutral disconnect terminal block 5,2mm UTN 2,5

EAN/GTIN: 4046356299053
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UTN 2,5
Manufact.-SKU: 3245011
Customs tariff no.: 85369010
Similar top items: Show now & compare
1,93 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Neutral disconnect terminal block 5,2mm Connectable conductor cross section fine-strand without cable end sleeve 0,14 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,14 ... 2,5mm², Connectable conductor cross section solid-core 0,14 ... 4mm², Connectable conductor cross section multi-wired 0,14 ... 4mm², Rated current In 24A, Rated voltage 250V, Type of electric connection Screw connection, Number of clamp positions 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5,2mm, Height at lowest possible mounting height 47,5mm, Length 55mm, Connecting plate required, Colour Blue, Suitable for N-busbar 3x10 mm

More product images:

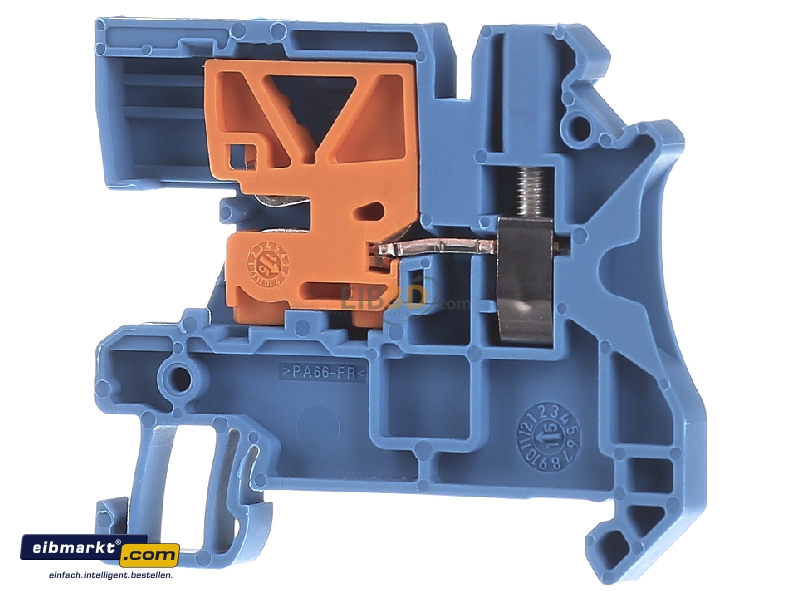

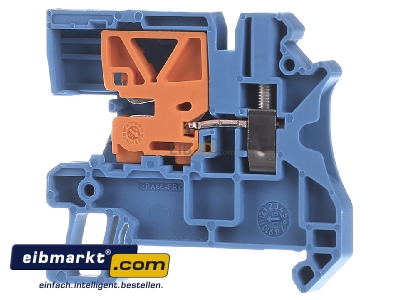

Front view Phoenix Contact UTN  2,5 Neutral disconnect terminal block 5,2mm UTN 2,5
Front view

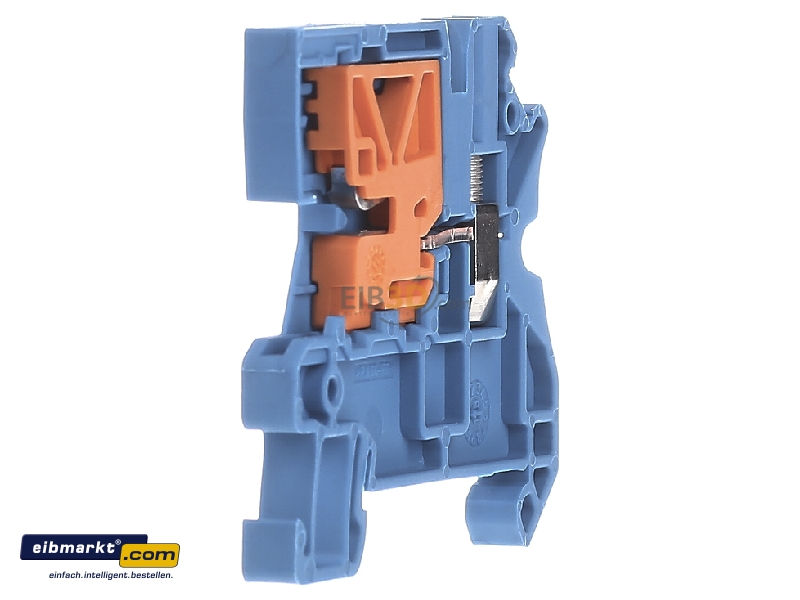

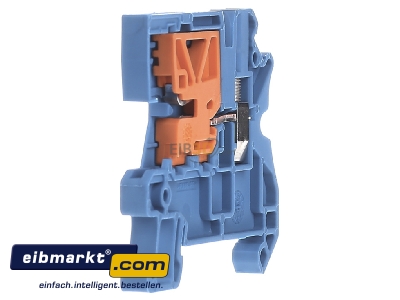

View on the left Phoenix Contact UTN  2,5 Neutral disconnect terminal block 5,2mm UTN 2,5
View on the left

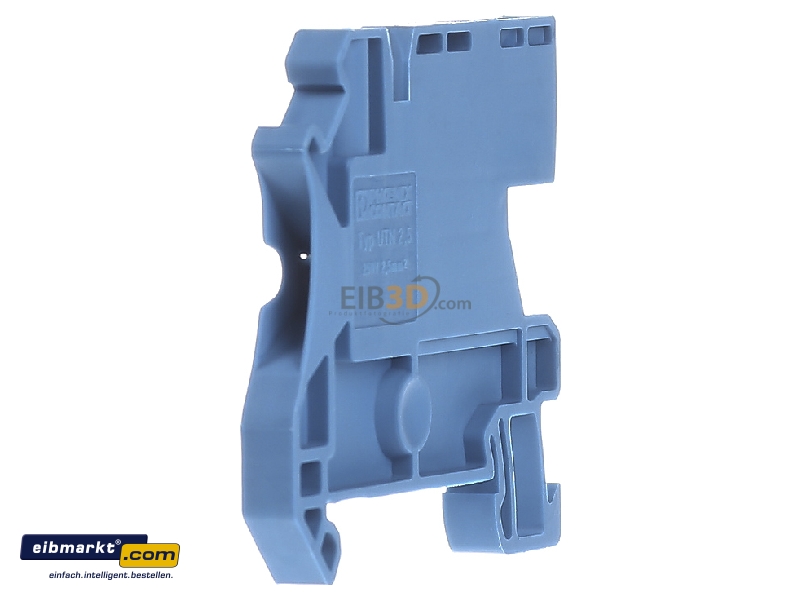

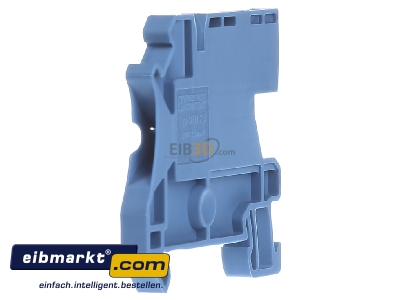

View on the right Phoenix Contact UTN  2,5 Neutral disconnect terminal block 5,2mm UTN 2,5
View on the right

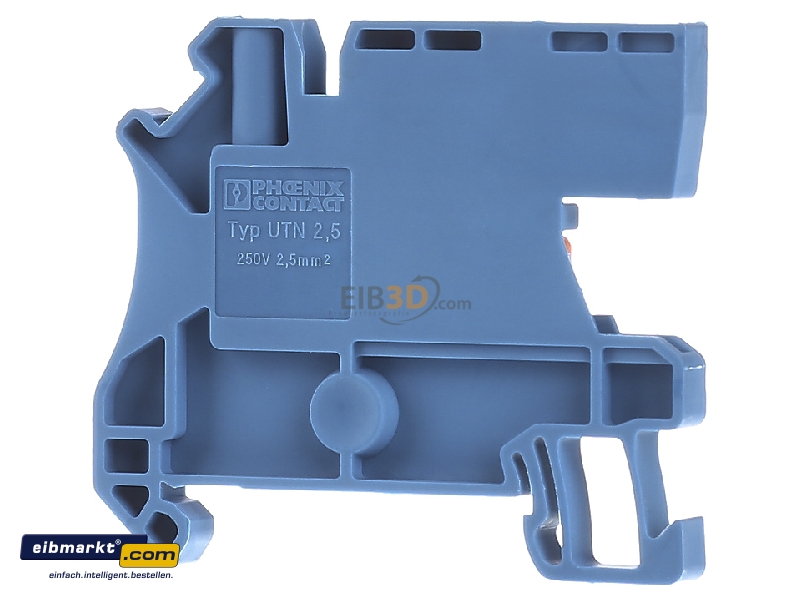

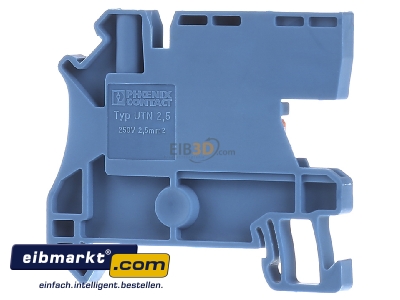

Back view Phoenix Contact UTN  2,5 Neutral disconnect terminal block 5,2mm UTN 2,5
Back view

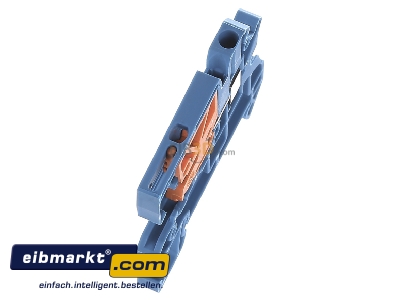

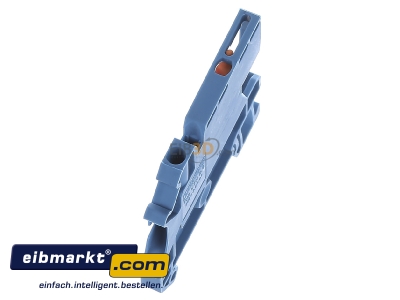

View up front Phoenix Contact UTN  2,5 Neutral disconnect terminal block 5,2mm UTN 2,5
View up front

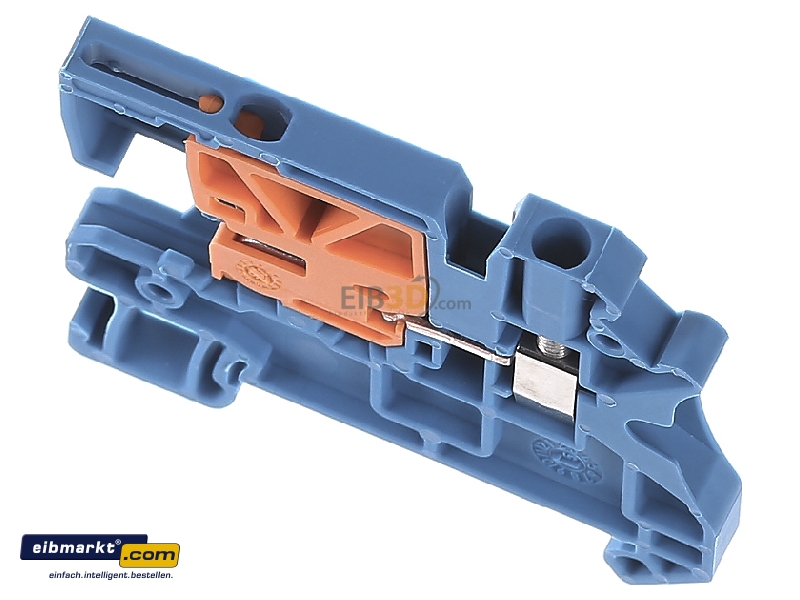

View top left Phoenix Contact UTN  2,5 Neutral disconnect terminal block 5,2mm UTN 2,5
View top left

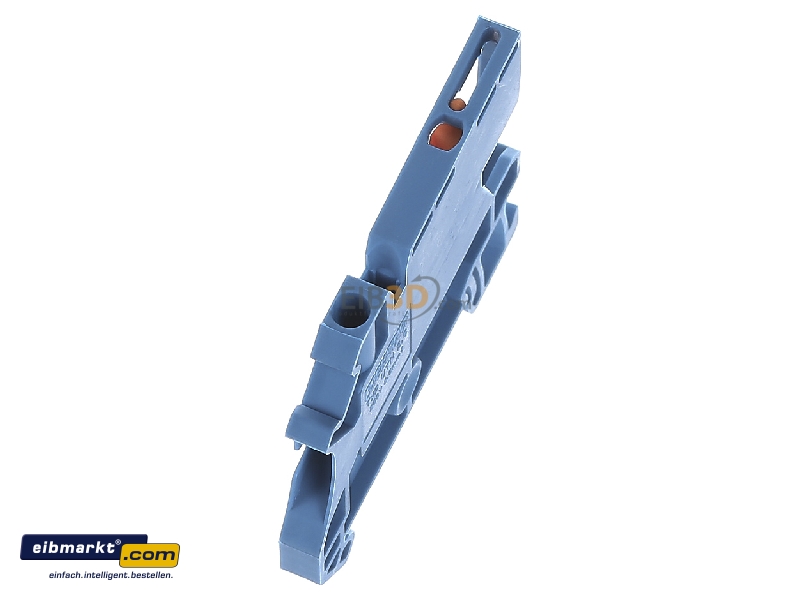

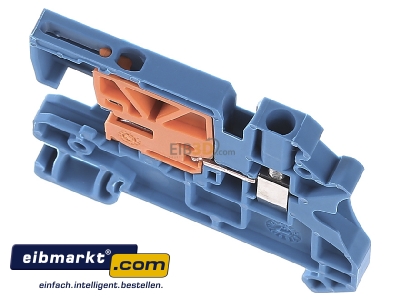

View top right Phoenix Contact UTN  2,5 Neutral disconnect terminal block 5,2mm UTN 2,5
View top right

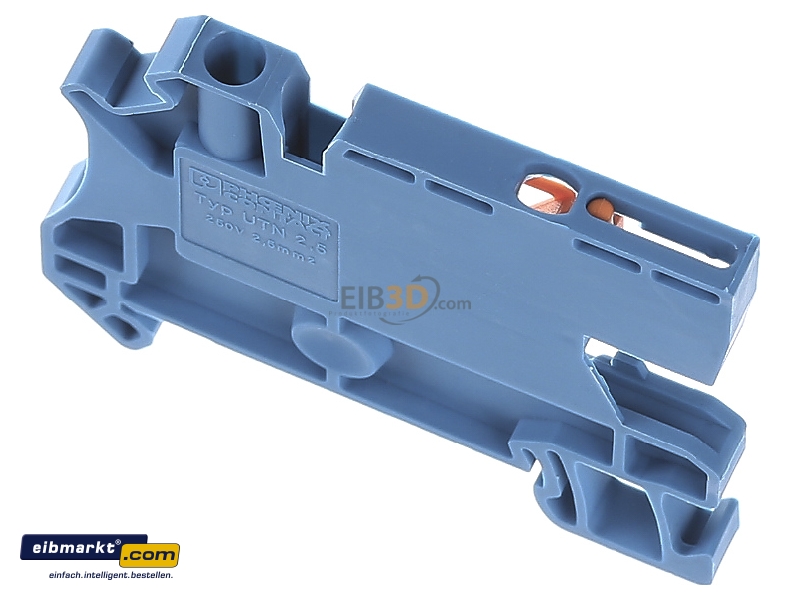

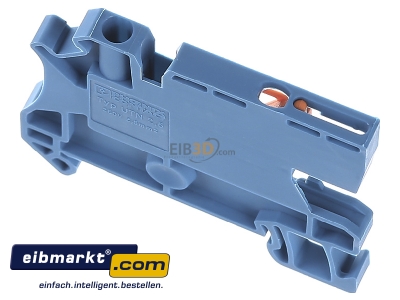

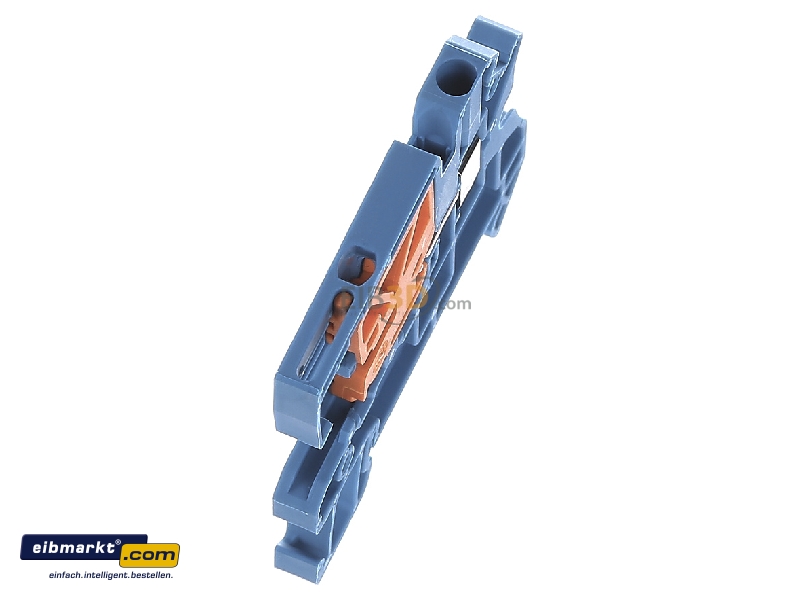

Top rear view Phoenix Contact UTN  2,5 Neutral disconnect terminal block 5,2mm UTN 2,5
Top rear view
