Neutral disconnect terminal block 12,2mm UTN 16

EAN/GTIN: 4046356299008
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UTN 16
Manufact.-SKU: 3245053
Customs tariff no.: 85369010
Similar top items: Show now & compare
3,78 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Neutral disconnect terminal block 12,2mm Connectable conductor cross section fine-strand without cable end sleeve 6 ... 16mm², Connectable conductor cross section fine-strand with cable end sleeve 6 ... 16mm², Connectable conductor cross section solid-core 6 ... 25mm², Connectable conductor cross section multi-wired 6 ... 16mm², Rated current In 76A, Rated voltage 400V, Type of electric connection Screw connection, Number of clamp positions 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V2, Width/grid dimension 12,2mm, Height at lowest possible mounting height 50,5mm, Length 55mm, Colour Blue, Suitable for N-busbar 3x10 mm

More product images:

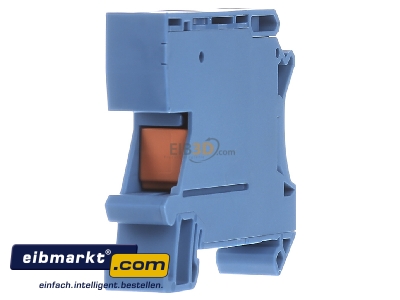

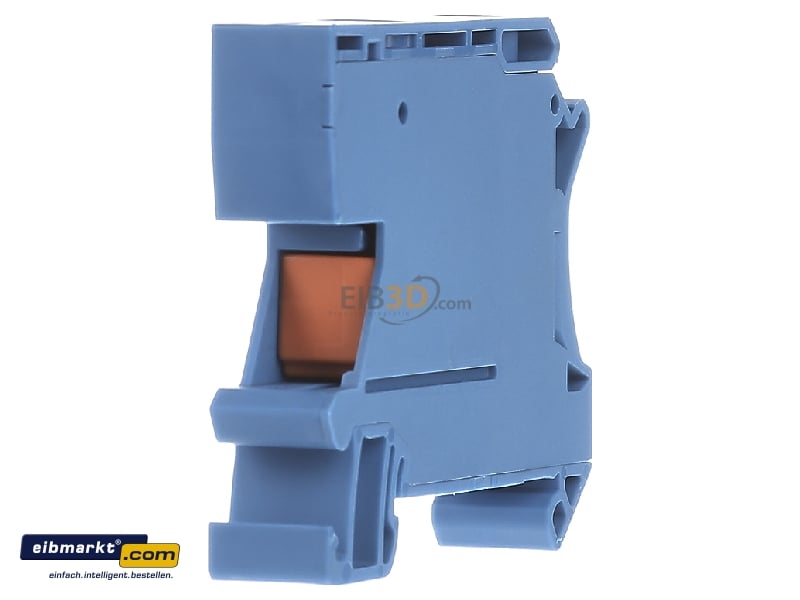

Front view Phoenix Contact UTN 16 Neutral disconnect terminal block 12,2mm
Front view

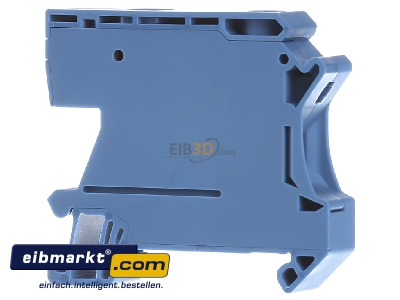

View on the left Phoenix Contact UTN 16 Neutral disconnect terminal block 12,2mm
View on the left

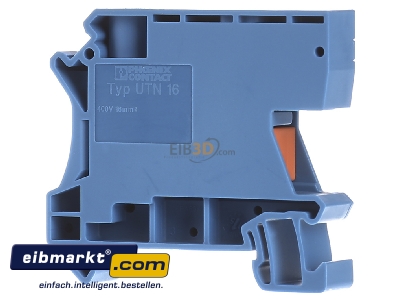

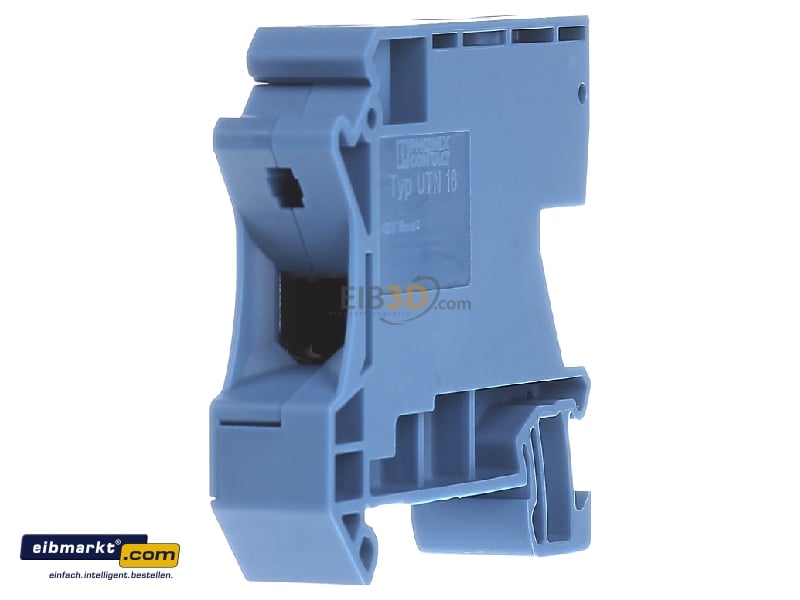

View on the right Phoenix Contact UTN 16 Neutral disconnect terminal block 12,2mm
View on the right

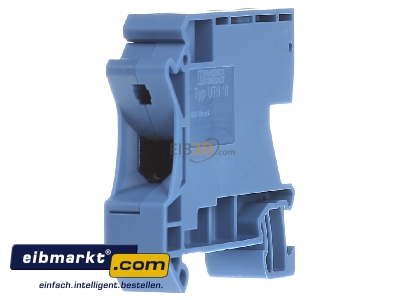

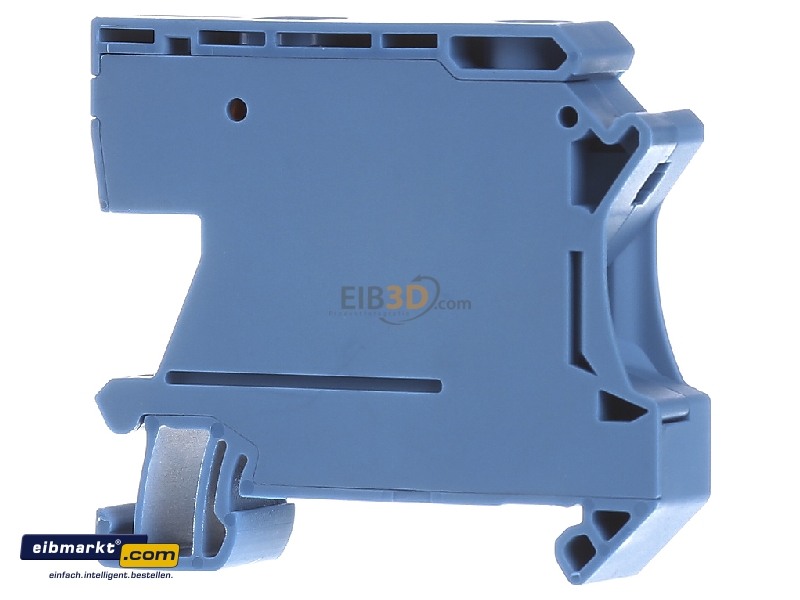

Back view Phoenix Contact UTN 16 Neutral disconnect terminal block 12,2mm
Back view

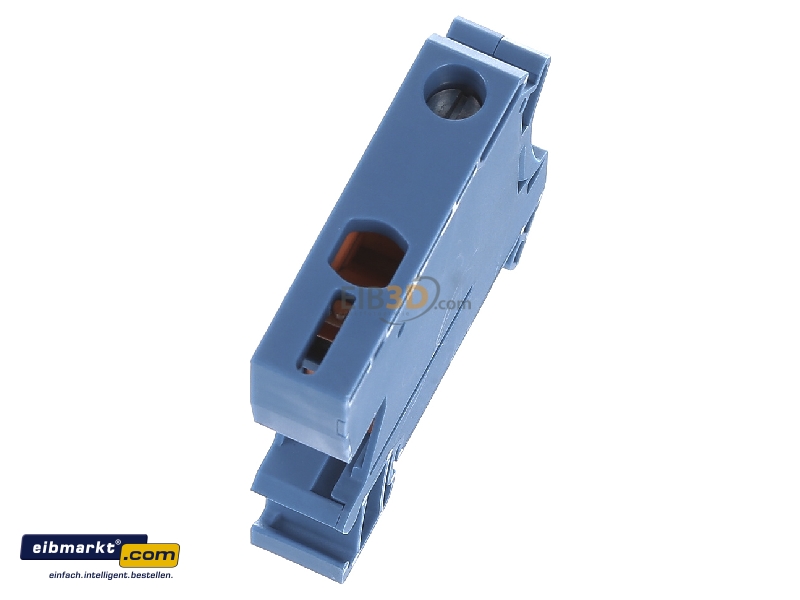

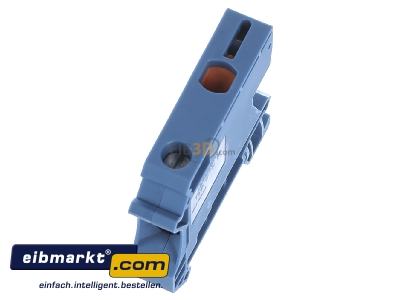

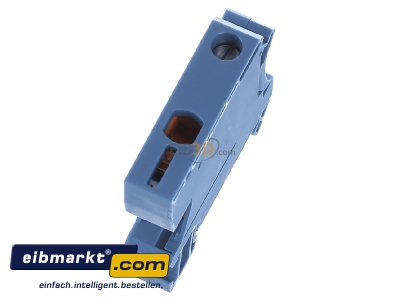

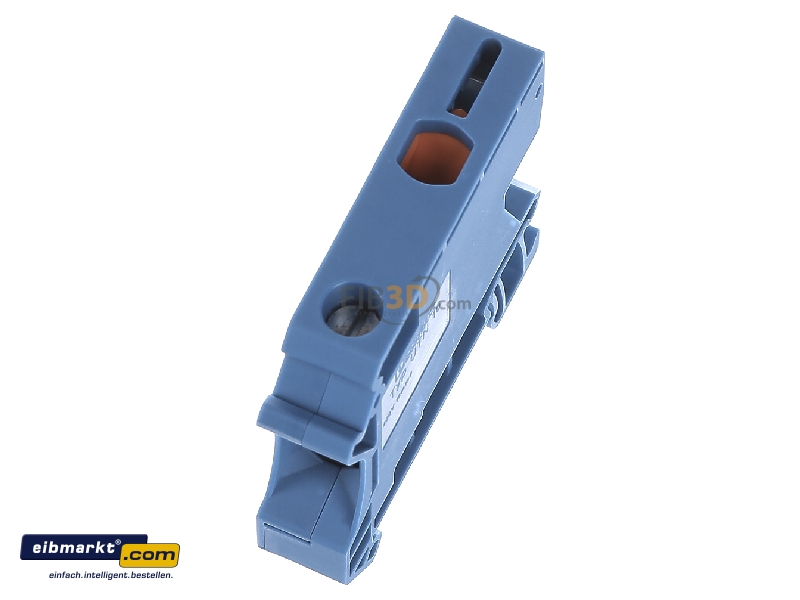

View up front Phoenix Contact UTN 16 Neutral disconnect terminal block 12,2mm
View up front

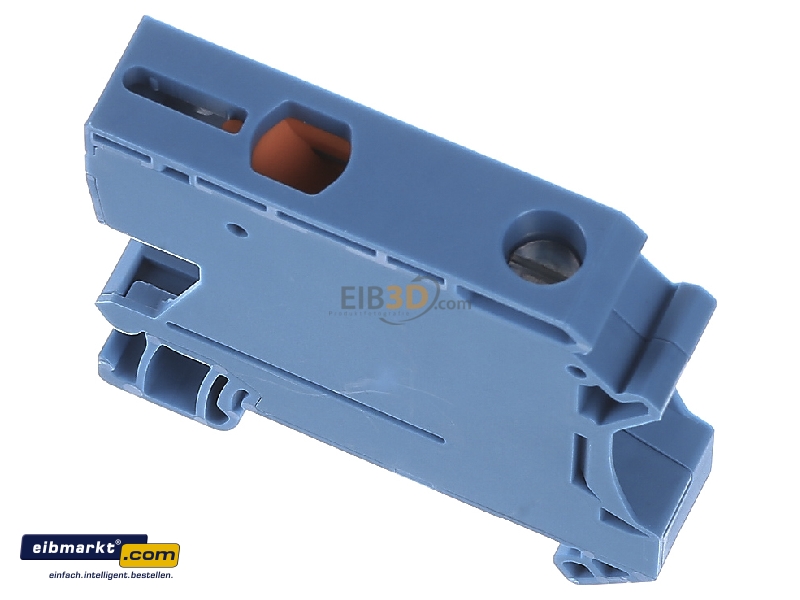

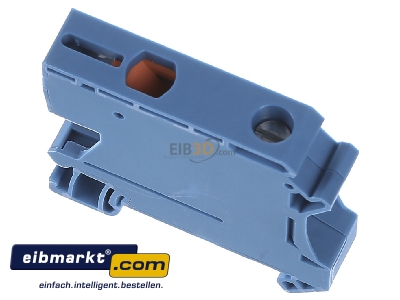

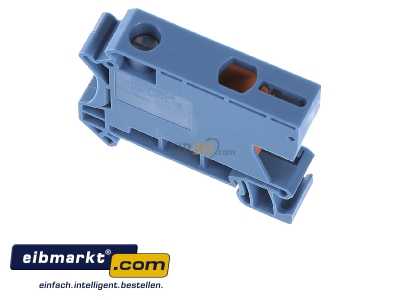

View top left Phoenix Contact UTN 16 Neutral disconnect terminal block 12,2mm
View top left

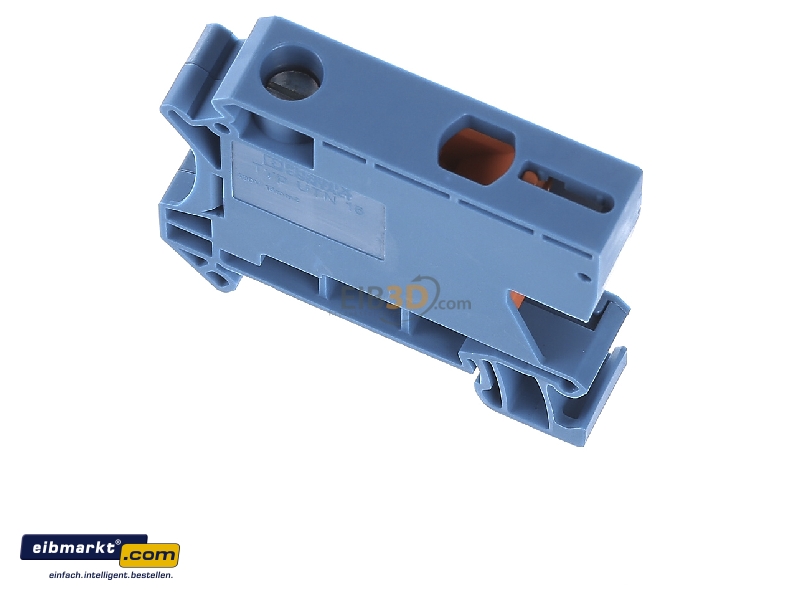

View top right Phoenix Contact UTN 16 Neutral disconnect terminal block 12,2mm
View top right
Top rear view Phoenix Contact UTN 16 Neutral disconnect terminal block 12,2mm
Top rear view
