Source photo: www.EIB3D.com

Neutral disconnect terminal block 12mm UIKN 16 BU

EAN/GTIN: 4017918091385
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UIKN 16 BU
Manufact.-SKU: 3006166
Customs tariff no.: 85369010
Similar top items: Show now & compare
6,41 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Neutral disconnect terminal block 12mm Connectable conductor cross section fine-strand without cable end sleeve 4 ... 16mm², Connectable conductor cross section fine-strand with cable end sleeve 1,5 ... 16mm², Connectable conductor cross section solid-core 2,5 ... 25mm², Connectable conductor cross section multi-wired 4 ... 16mm², Rated current In 76A, Rated voltage 400V, Type of electric connection Other, Number of clamp positions 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V2, Width/grid dimension 12mm, Height at lowest possible mounting height 47mm, Length 43,5mm, Connecting plate required, Colour Blue, Suitable for N-busbar 3x10 mm

More product images:

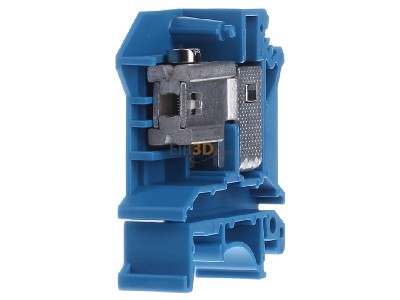

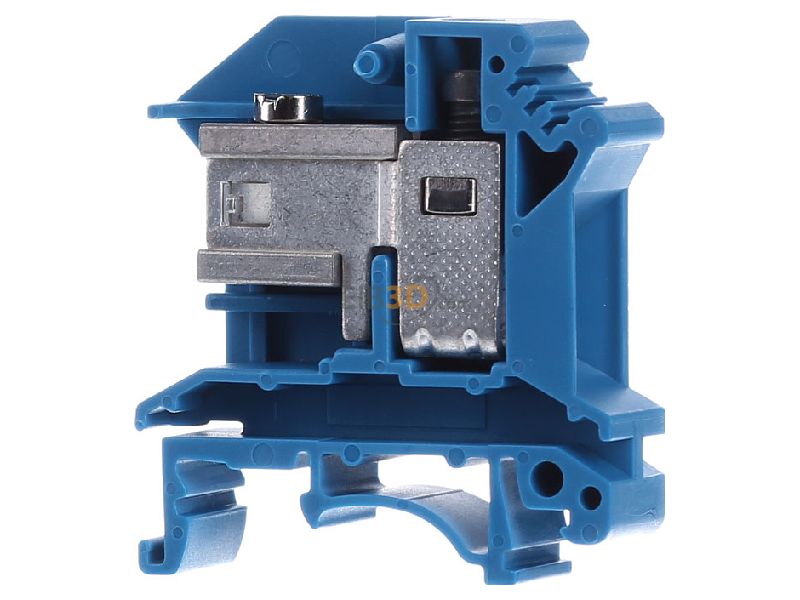

Front view Phoenix UIKN 16 BU Neutral disconnect terminal block 12mm
Front view

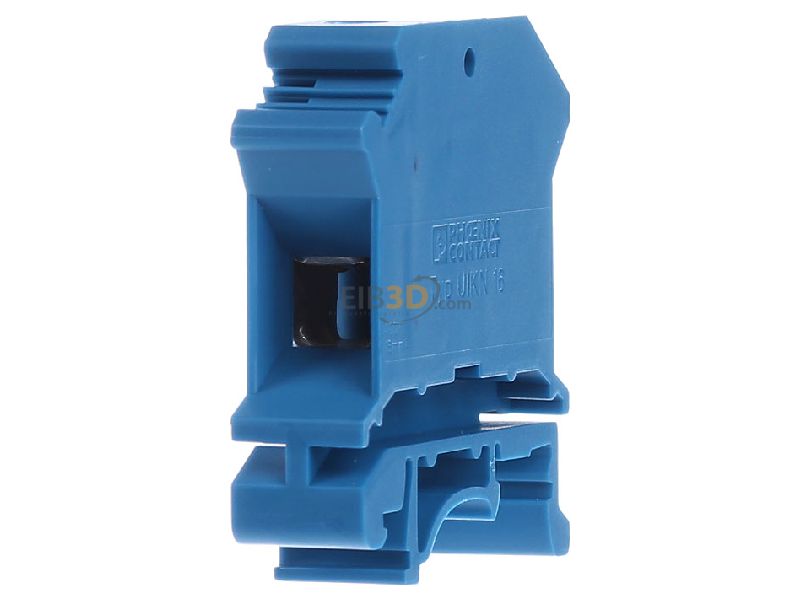

View on the left Phoenix UIKN 16 BU Neutral disconnect terminal block 12mm
View on the left

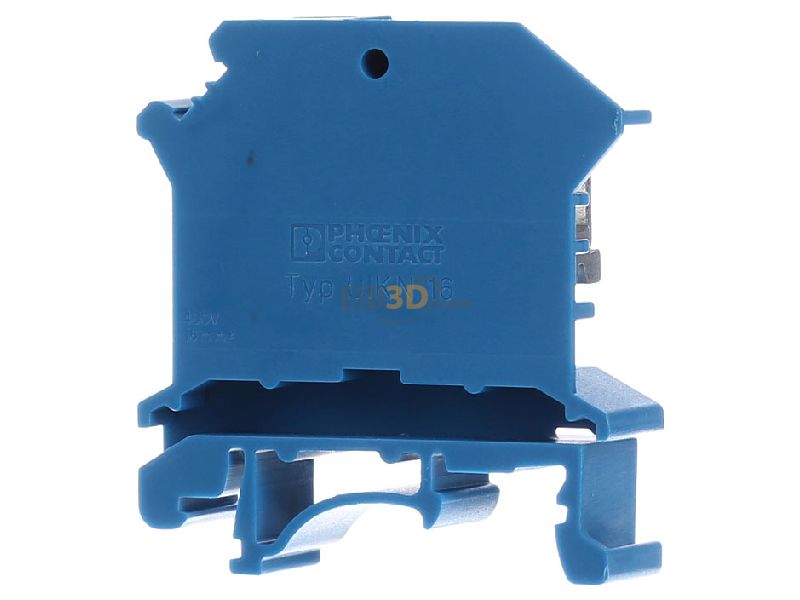

View on the right Phoenix UIKN 16 BU Neutral disconnect terminal block 12mm
View on the right
Back view Phoenix UIKN 16 BU Neutral disconnect terminal block 12mm
Back view

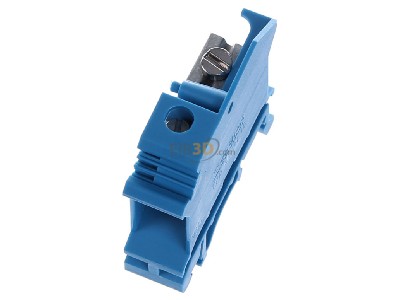

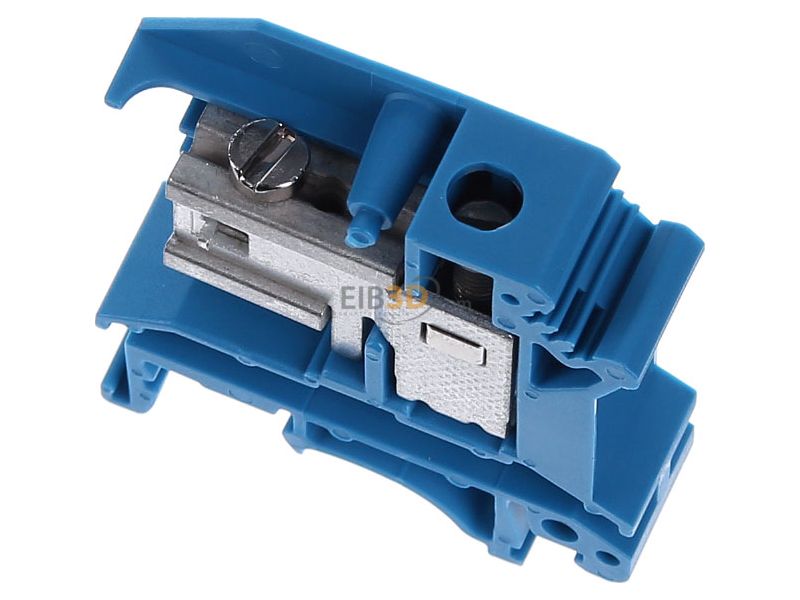

View up front Phoenix UIKN 16 BU Neutral disconnect terminal block 12mm
View up front
View top left Phoenix UIKN 16 BU Neutral disconnect terminal block 12mm
View top left

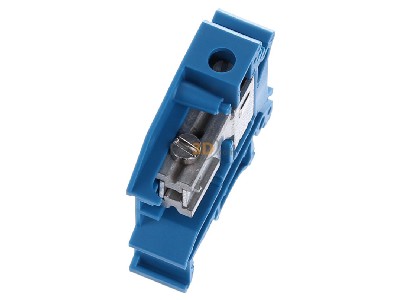

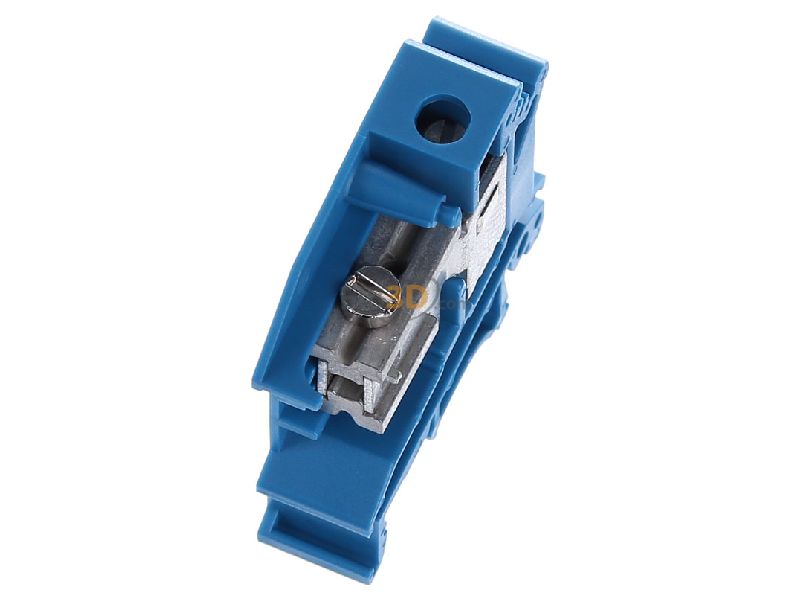

View top right Phoenix UIKN 16 BU Neutral disconnect terminal block 12mm
View top right

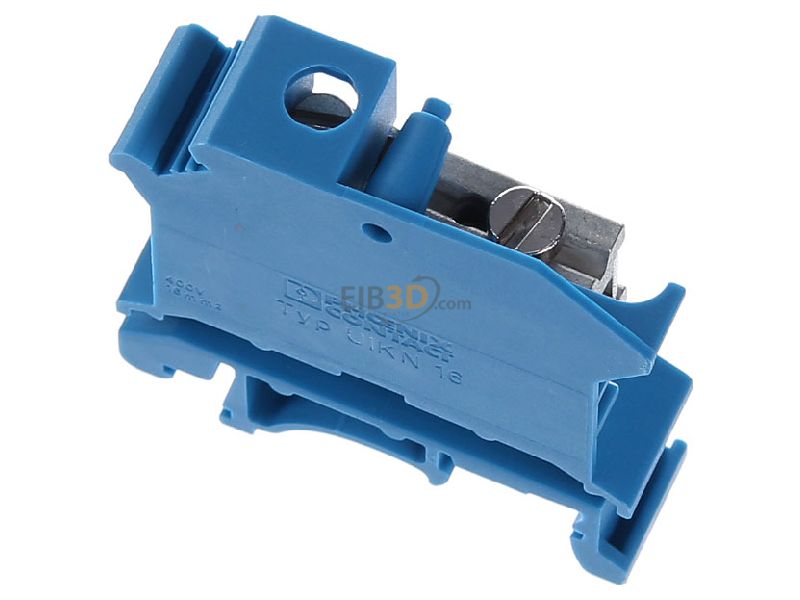

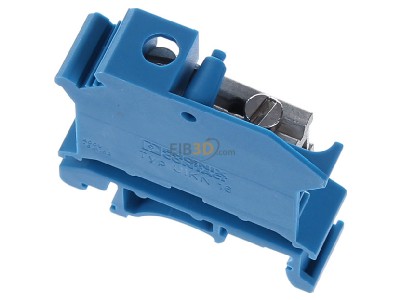

Top rear view Phoenix UIKN 16 BU Neutral disconnect terminal block 12mm
Top rear view
Product image 1 Phoenix UIKN 16 BU Neutral disconnect terminal block 12mm
Product image 1
Product image 2 Phoenix UIKN 16 BU Neutral disconnect terminal block 12mm
Product image 2
