Neutral disconnect terminal block 10,2mm UTN 10

EAN/GTIN: 4046356299015
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UTN 10
Manufact.-SKU: 3245040
Customs tariff no.: 85369010
Similar top items: Show now & compare
2,35 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Neutral disconnect terminal block 10,2mm Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 16mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 10mm², Connectable conductor cross section solid-core 0,5 ... 16mm², Connectable conductor cross section multi-wired 0,5 ... 16mm², Rated current In 57A, Rated voltage 400V, Type of electric connection Screw connection, Number of clamp positions 1, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 10,2mm, Height at lowest possible mounting height 47,5mm, Length 55mm, Connecting plate required, Colour Blue, Suitable for N-busbar 3x10 mm

More product images:

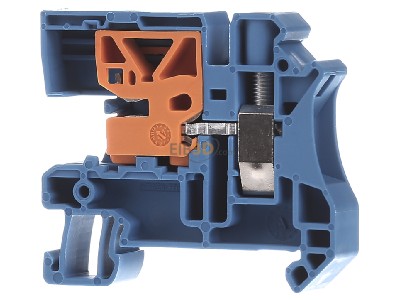

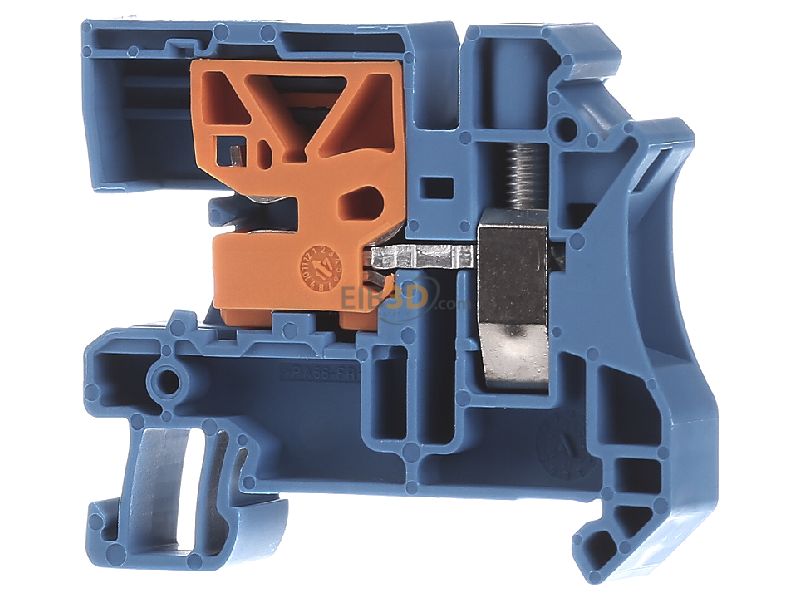

Front view Phoenix UTN 10 Neutral disconnect terminal block 10,2mm
Front view

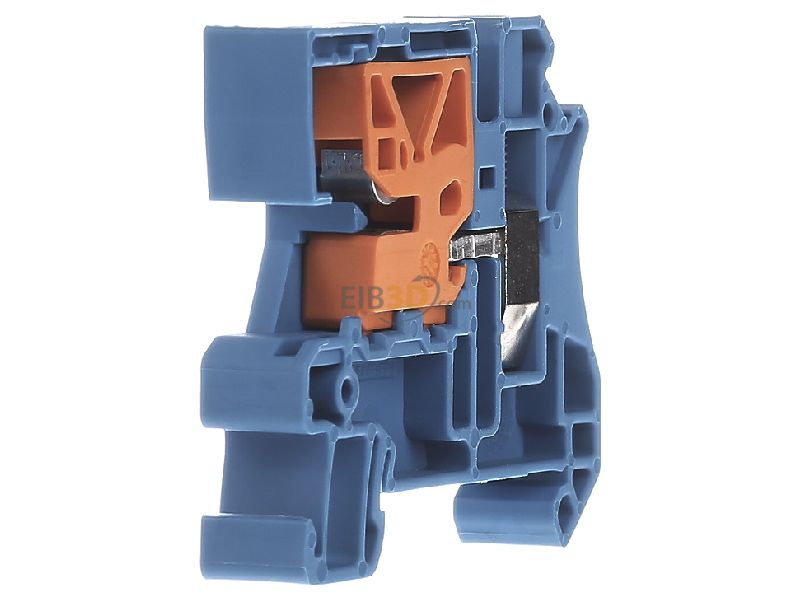

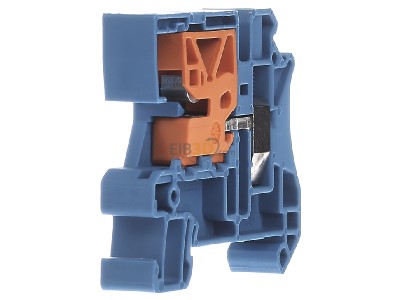

View on the left Phoenix UTN 10 Neutral disconnect terminal block 10,2mm
View on the left

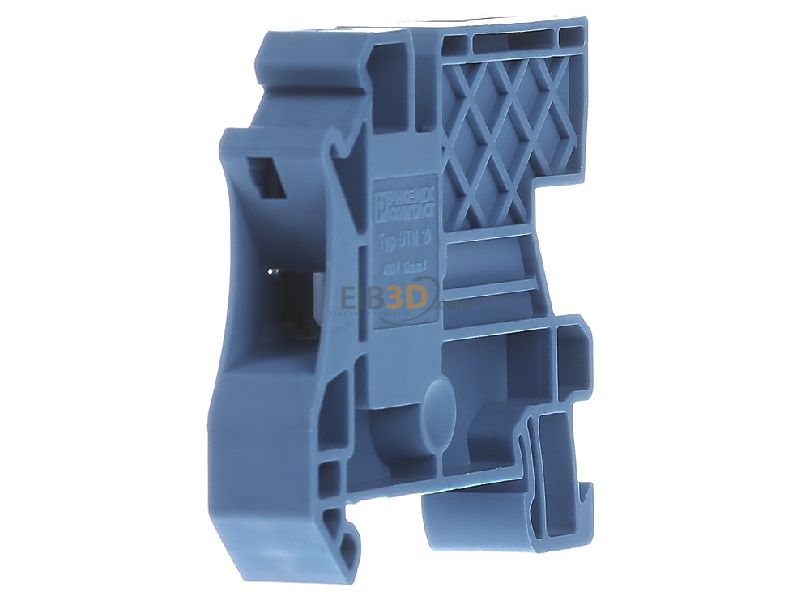

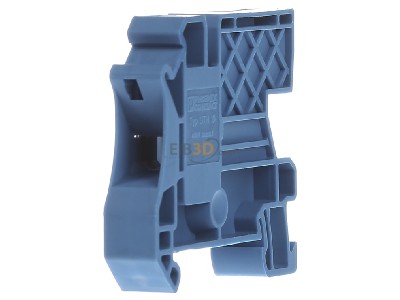

View on the right Phoenix UTN 10 Neutral disconnect terminal block 10,2mm
View on the right

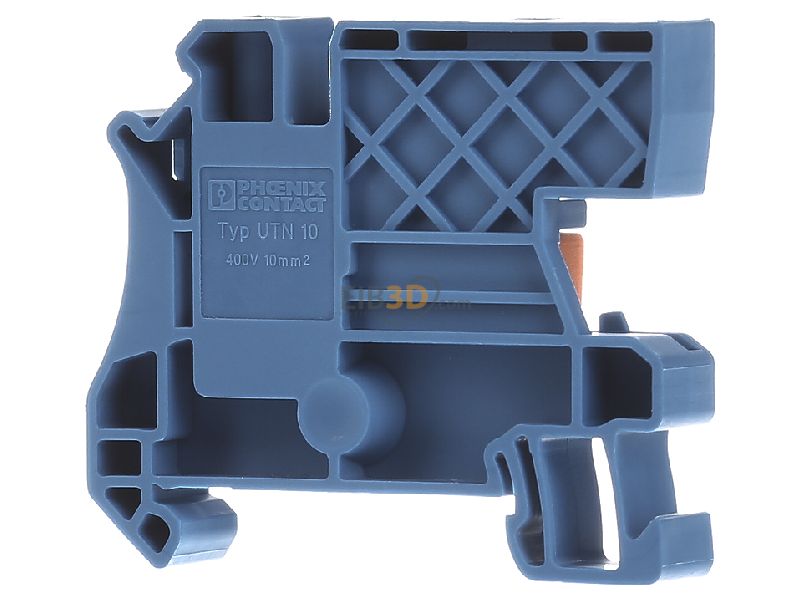

Back view Phoenix UTN 10 Neutral disconnect terminal block 10,2mm
Back view

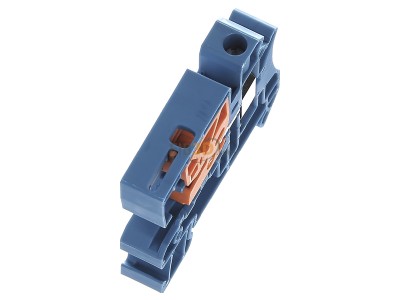

View up front Phoenix UTN 10 Neutral disconnect terminal block 10,2mm
View up front

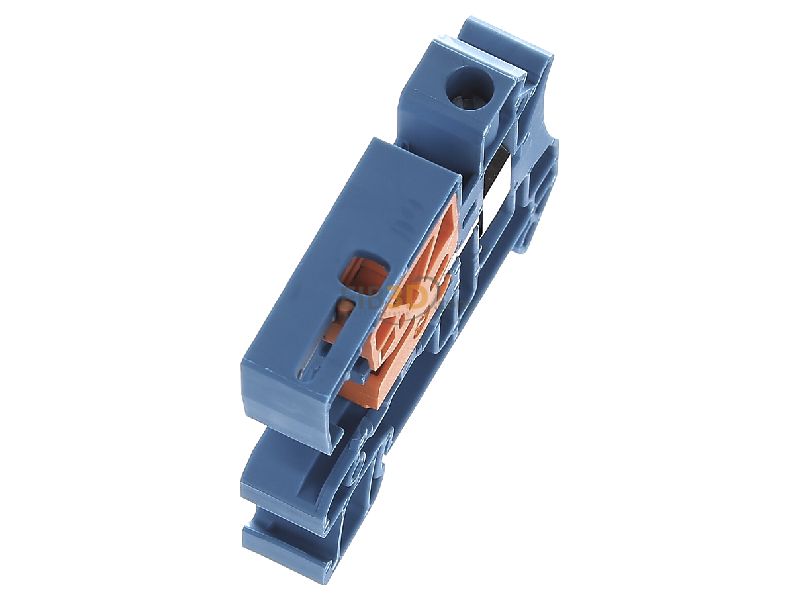

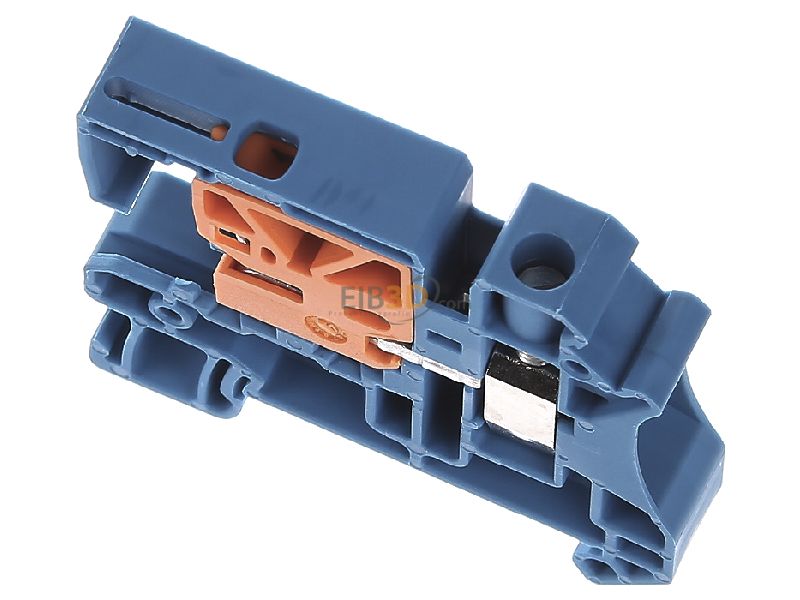

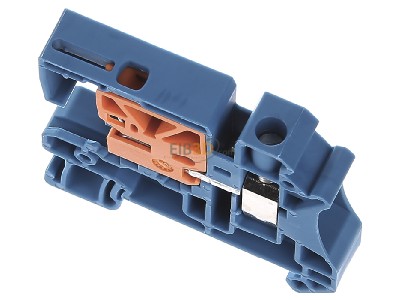

View top left Phoenix UTN 10 Neutral disconnect terminal block 10,2mm
View top left

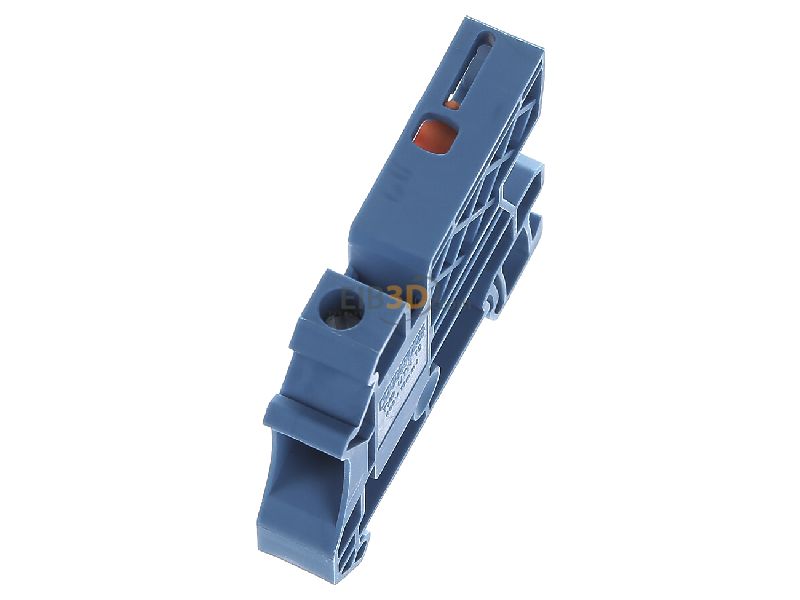

View top right Phoenix UTN 10 Neutral disconnect terminal block 10,2mm
View top right

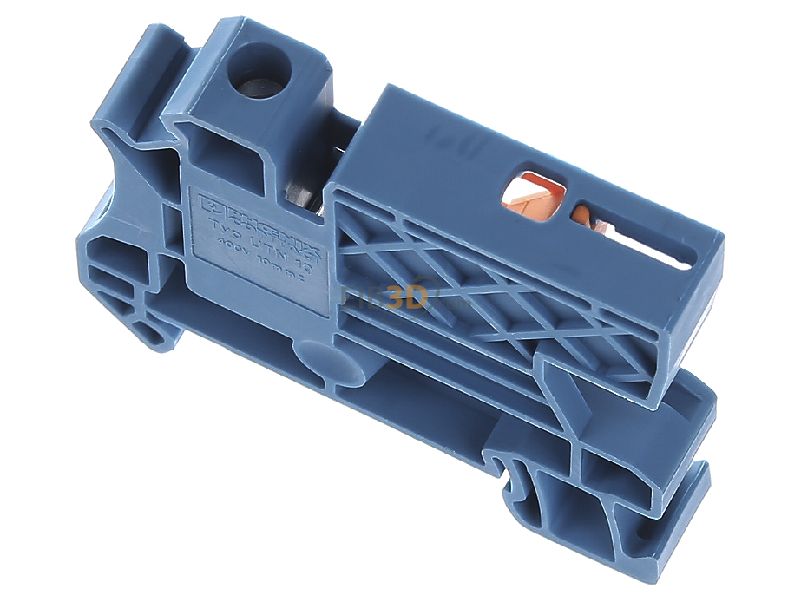

Top rear view Phoenix UTN 10 Neutral disconnect terminal block 10,2mm
Top rear view
