Indicator terminal block 2-p 32A UKK 5-LA 24 RD/U-O
Source photo:
Phoenix
(fig. might be different or similar)

Indicator terminal block 2-p 32A UKK 5-LA 24 RD/U-O

EAN/GTIN: 4017918072452
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UKK 5-LA 24 RD/U-O
Manufact.-SKU: 2791320
Customs tariff no.: 85369010
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
469,95 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Indicator terminal block 2-p 32A Connectable conductor cross section fine-strand without cable end sleeve 0,2 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,25 ... 4mm², Connectable conductor cross section solid-core 0,2 ... 4mm², Connectable conductor cross section multi-wired 0,2 ... 4mm², Rated current In 32A, Rated voltage 500V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of levels 2, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 6,2mm, Height at lowest possible mounting height 62mm, Length 56mm, Closing plate required, Colour Grey, Supply voltage for indication 15 ... 30V, Voltage type for indication DC

More product images:

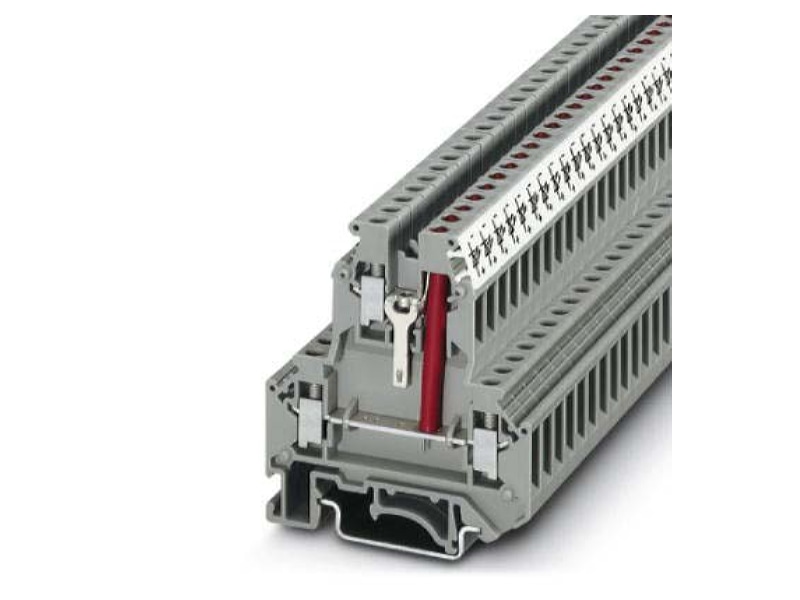

Product image 1 Phoenix UKK 5 LA 24 RD U O Indicator terminal block 2 p 32A
Product image 1

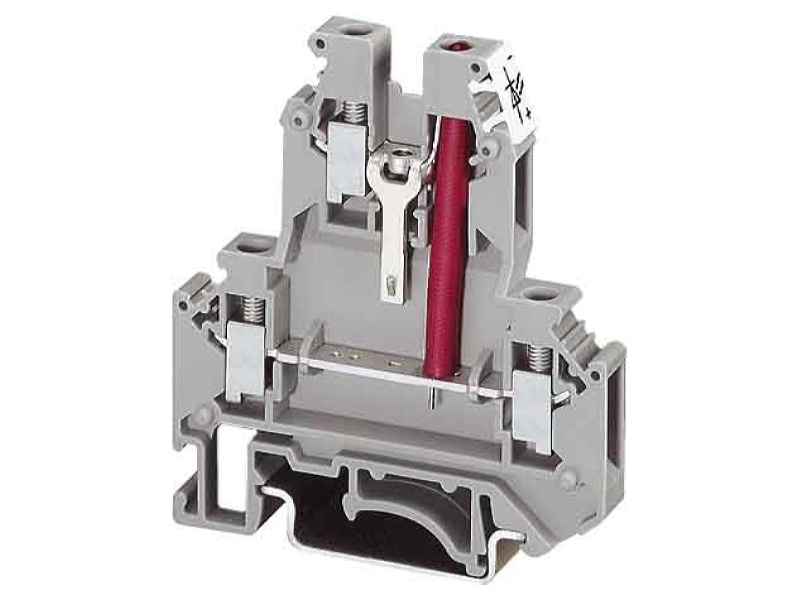

Product image 2 Phoenix UKK 5 LA 24 RD U O Indicator terminal block 2 p 32A
Product image 2
