Ground terminal block 2-p 6,2mm UKKB 5-PE
Source photo:
Phoenix
(fig. might be different or similar)

Ground terminal block 2-p 6,2mm UKKB 5-PE

EAN/GTIN: 4017918091538
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UKKB 5-PE
Manufact.-SKU: 3007123
Customs tariff no.: 85369010
Similar top items: Show now & compare
11,18 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Ground terminal block 2-p 6,2mm Connectable conductor cross section fine-strand without cable end sleeve 0,2 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,25 ... 4mm², Connectable conductor cross section solid-core 0,2 ... 4mm², Connectable conductor cross section multi-wired 0,2 ... 4mm², Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of levels 2, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V2, Width/grid dimension 6,2mm, Height at lowest possible mounting height 67mm, Length 67mm, Colour Green/yellow

More product images:

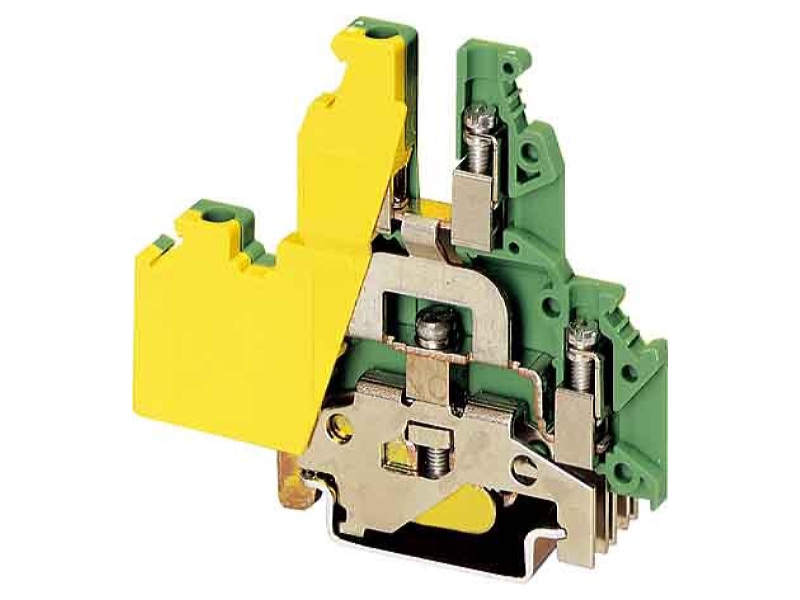

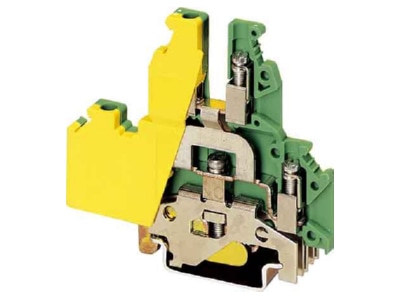

Product image 1 Phoenix UKKB 5 PE Ground terminal block 2 p 6 2mm
Product image 1

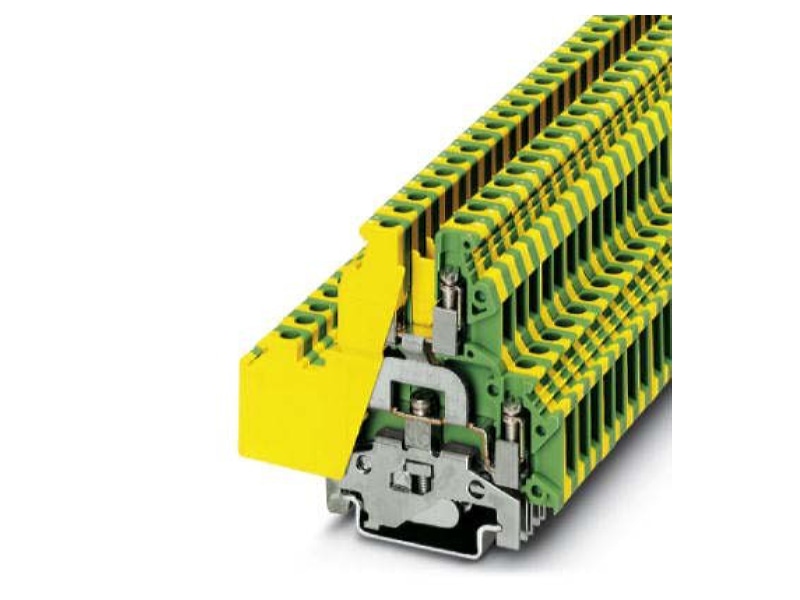

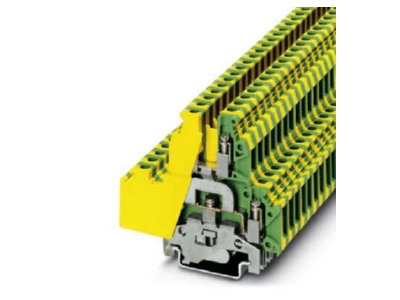

Product image 2 Phoenix UKKB 5 PE Ground terminal block 2 p 6 2mm
Product image 2
