G-fuse 5x25 mm terminal block 6,3A 8,2mm UK-SI

EAN/GTIN: 4017918092856
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UK-SI
Manufact.-SKU: 3118012
Customs tariff no.: 85369095
Similar top items: Show now & compare
7,47 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

G-fuse 5x25 mm terminal block 6,3A 8,2mm Type of fuse insert G-fuse 5x25 mm, Type of fuse holder Pluggable, Type of indication element for defect indication None, Connectable conductor cross section fine-strand without cable end sleeve 0,2 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,25 ... 4mm², Connectable conductor cross section solid-core 0,2 ... 4mm², Connectable conductor cross section multi-wired 0,2 ... 4mm², Rated current In 6,3A, Rated voltage 400V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Number of levels 1, Connection position Sideways, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 8,2mm, Height at lowest possible mounting height 58mm, Length 59,5mm, Colour Black

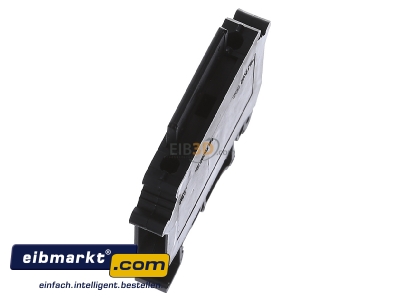

More product images:

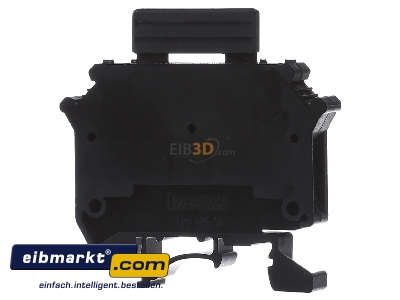

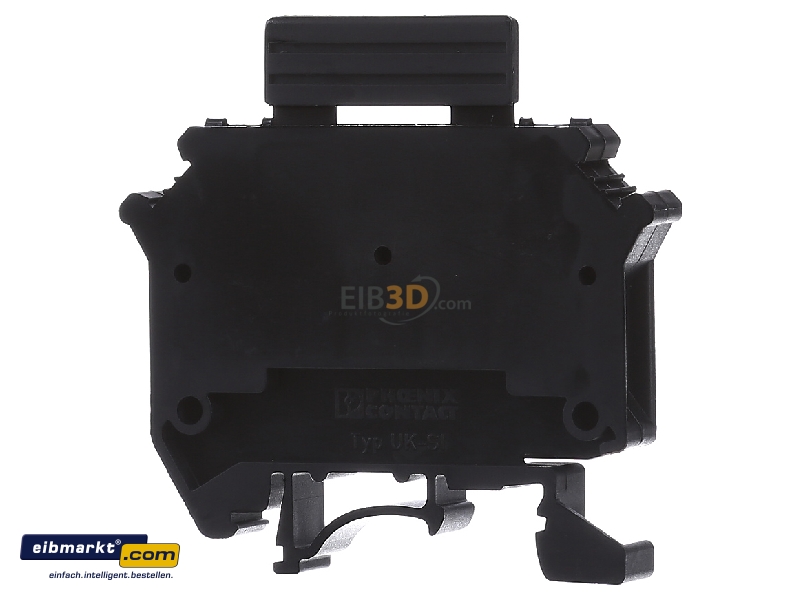

Front view Phoenix Contact UK-SI G-fuse 5x25 mm terminal block 6,3A 8,2mm
Front view

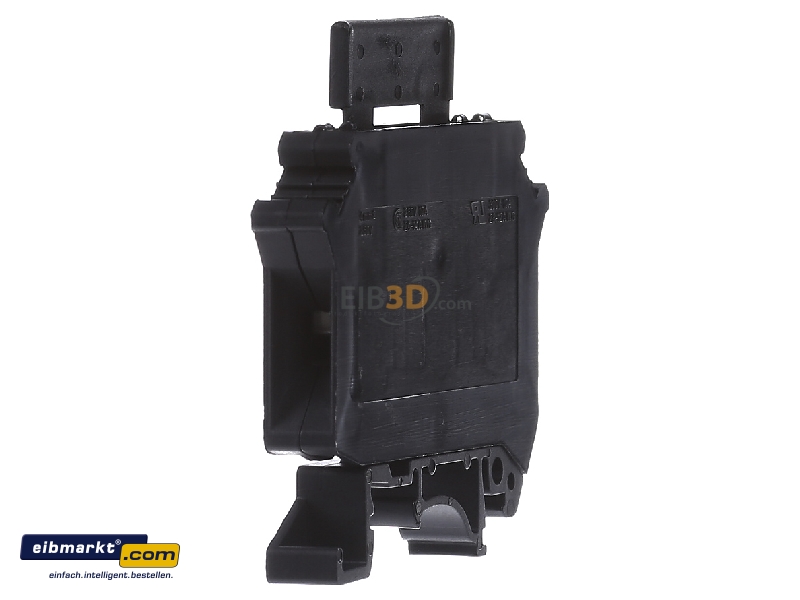

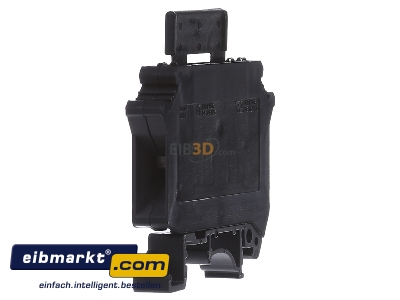

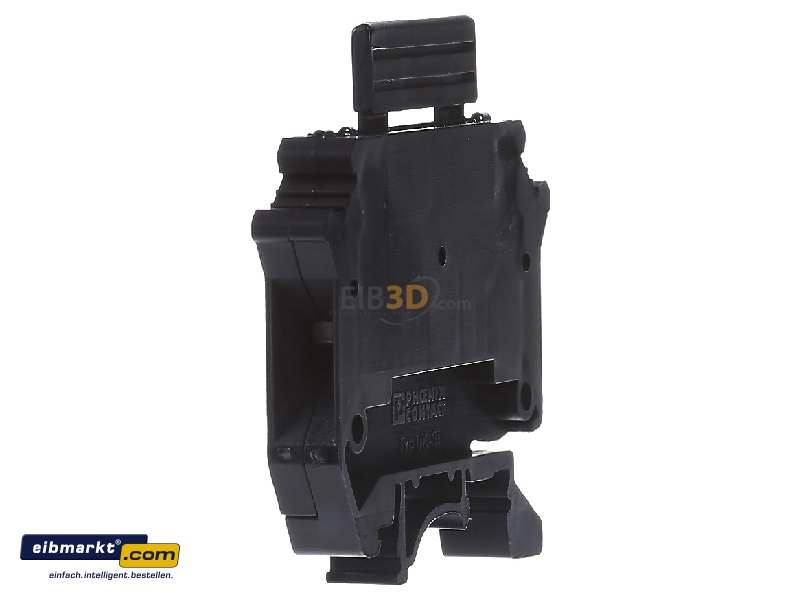

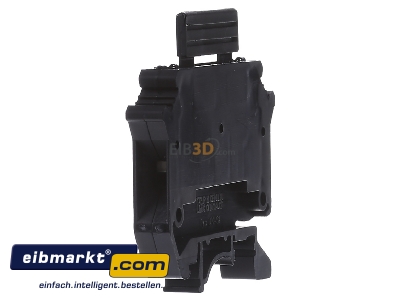

View on the left Phoenix Contact UK-SI G-fuse 5x25 mm terminal block 6,3A 8,2mm
View on the left
View on the right Phoenix Contact UK-SI G-fuse 5x25 mm terminal block 6,3A 8,2mm
View on the right

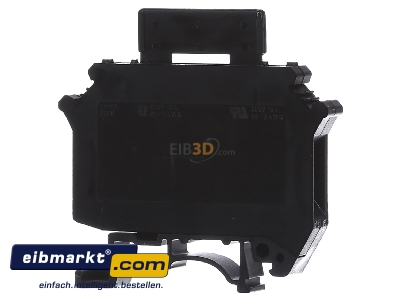

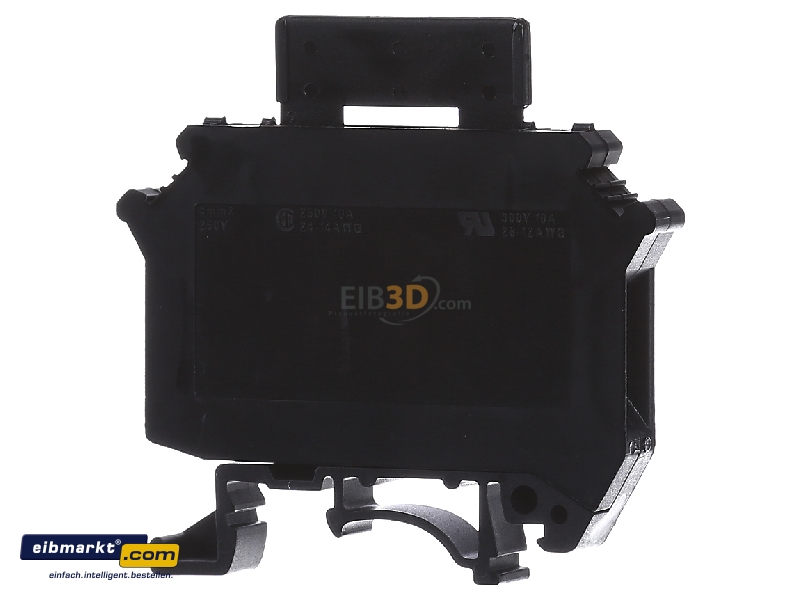

Back view Phoenix Contact UK-SI G-fuse 5x25 mm terminal block 6,3A 8,2mm
Back view

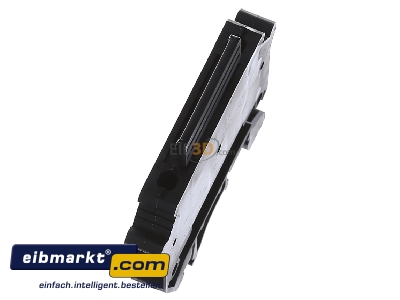

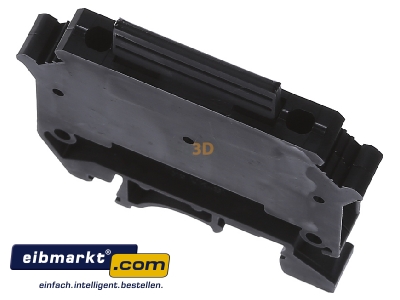

View up front Phoenix Contact UK-SI G-fuse 5x25 mm terminal block 6,3A 8,2mm
View up front

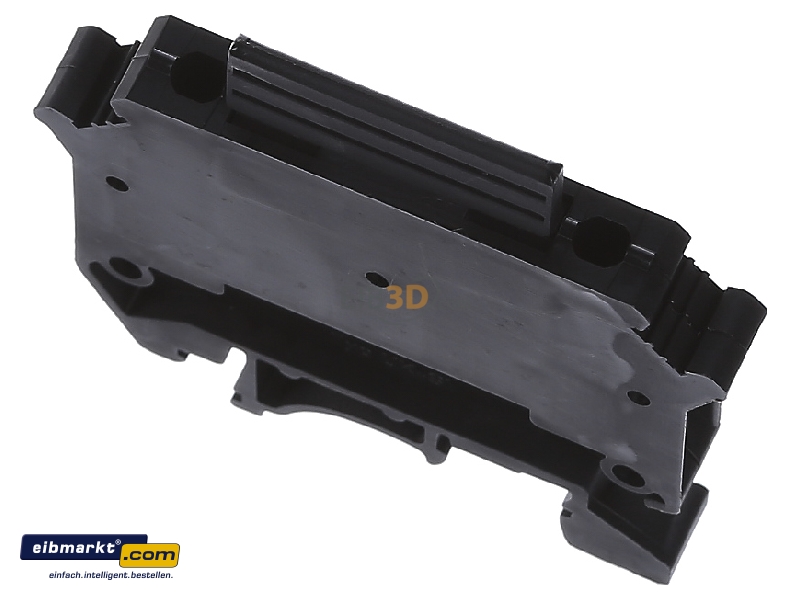

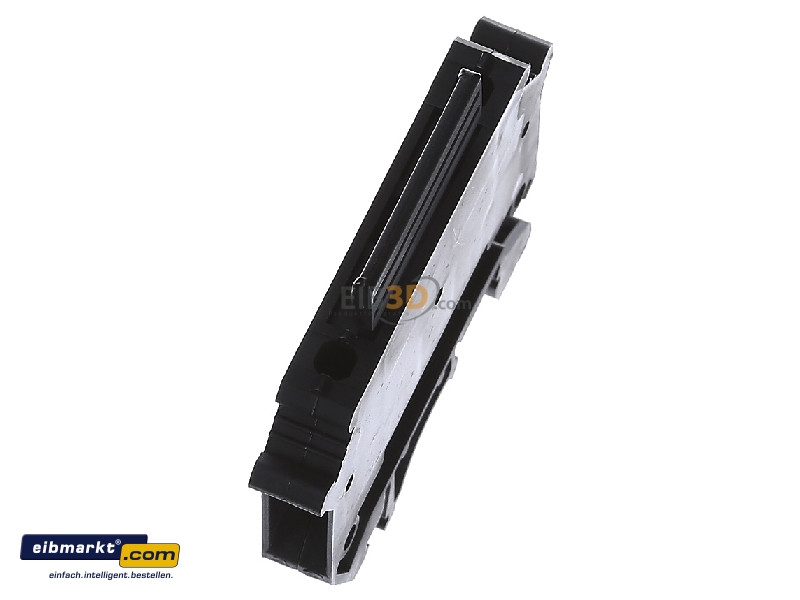

View top left Phoenix Contact UK-SI G-fuse 5x25 mm terminal block 6,3A 8,2mm
View top left

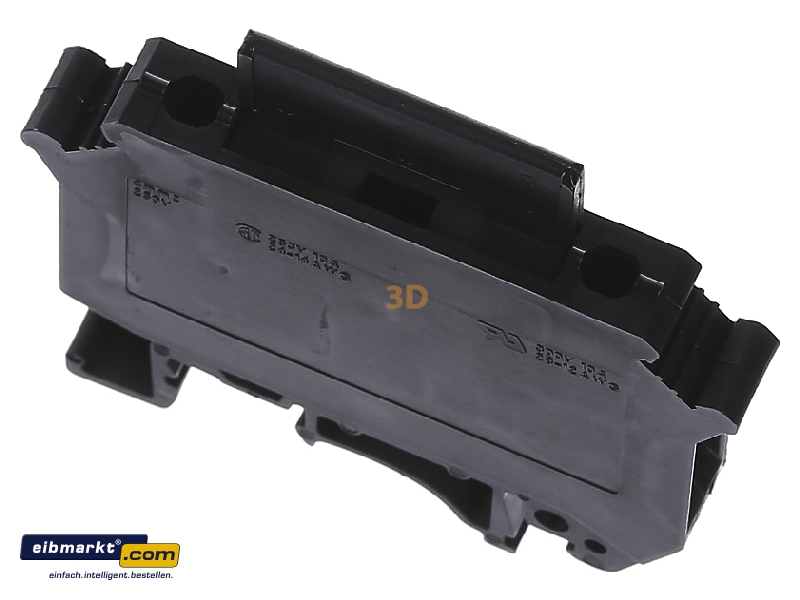

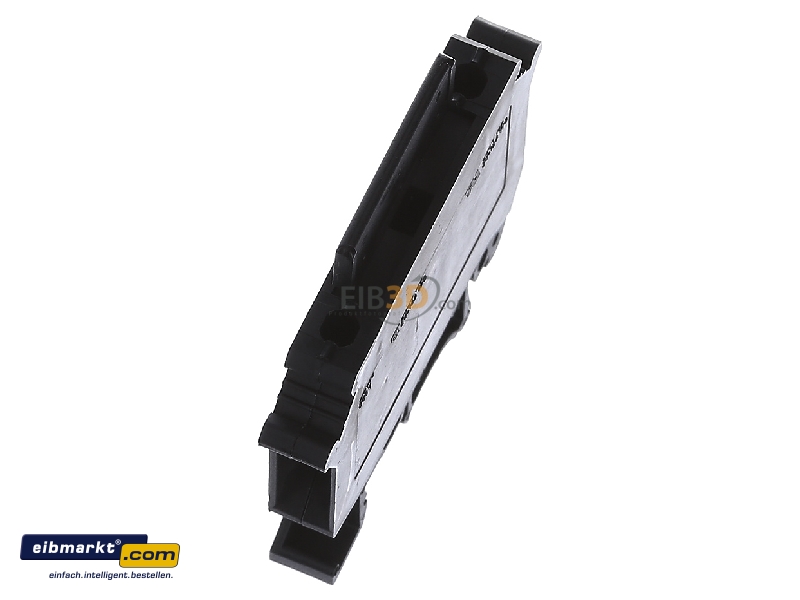

View top right Phoenix Contact UK-SI G-fuse 5x25 mm terminal block 6,3A 8,2mm
View top right
Top rear view Phoenix Contact UK-SI G-fuse 5x25 mm terminal block 6,3A 8,2mm
Top rear view

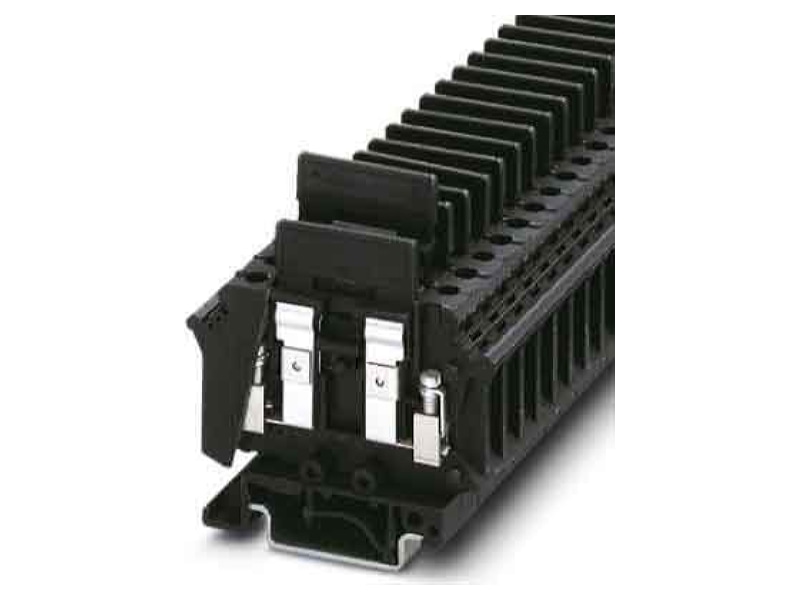

Product image 1 Phoenix UK SI G fuse 5x25 mm terminal block 6 3A 8 2mm
Product image 1

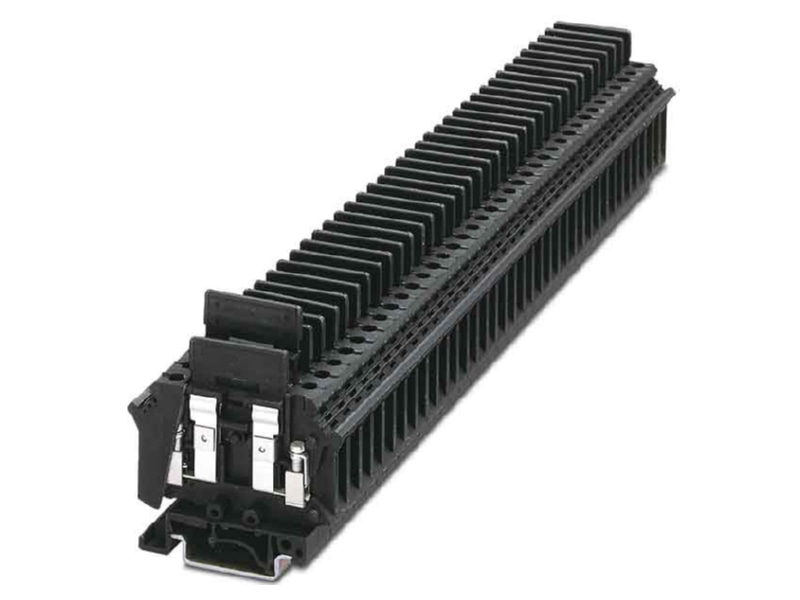

Product image 2 Phoenix UK SI G fuse 5x25 mm terminal block 6 3A 8 2mm
Product image 2
