G-fuse 5x20 mm terminal block 6,3A 6,2mm ST4-HESILA250(5X20)

EAN/GTIN: 4017918890490
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: ST4-HESILA250(5X20)
Manufact.-SKU: 3036563
Customs tariff no.: 85369095
Similar top items: Show now & compare
10,26 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

G-fuse 5x20 mm terminal block 6,3A 6,2mm Type of fuse insert G-fuse 5x20 mm, Type of fuse holder Swivelling, Type of indication element for defect indication Glow lamp, Supply voltage for defect-indication 110 ... 250V, Voltage type for defect indication AC/DC, Connectable conductor cross section fine-strand without cable end sleeve 0,08 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,14 ... 4mm², Connectable conductor cross section solid-core 0,08 ... 6mm², Connectable conductor cross section multi-wired 0,08 ... 4mm², Rated current In 6,3A, Rated voltage 250V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Number of levels 1, Connection position Sideways, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 6,2mm, Height at lowest possible mounting height 62,5mm, Length 61,5mm, Colour Black

More product images:

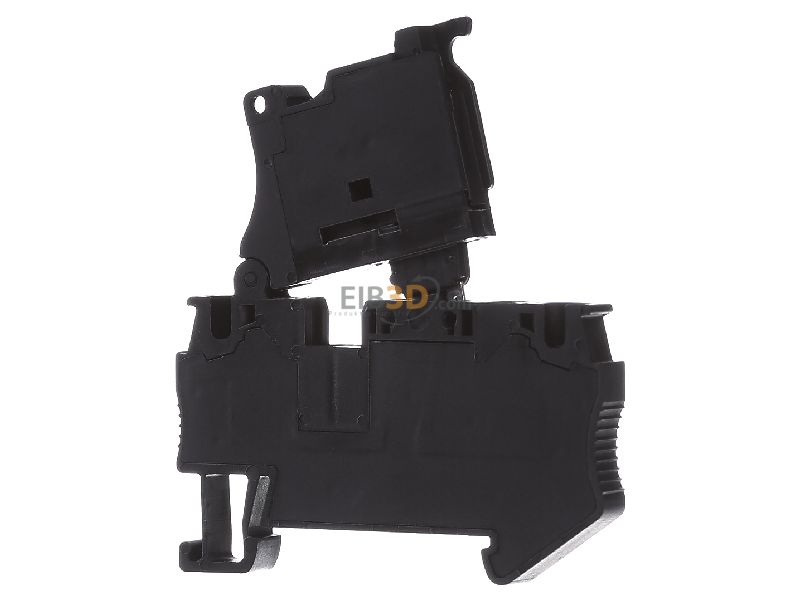

Front view Phoenix ST4-HESILA250(5X20) G-fuse 5x20 mm terminal block 6,3A 6,2mm
Front view

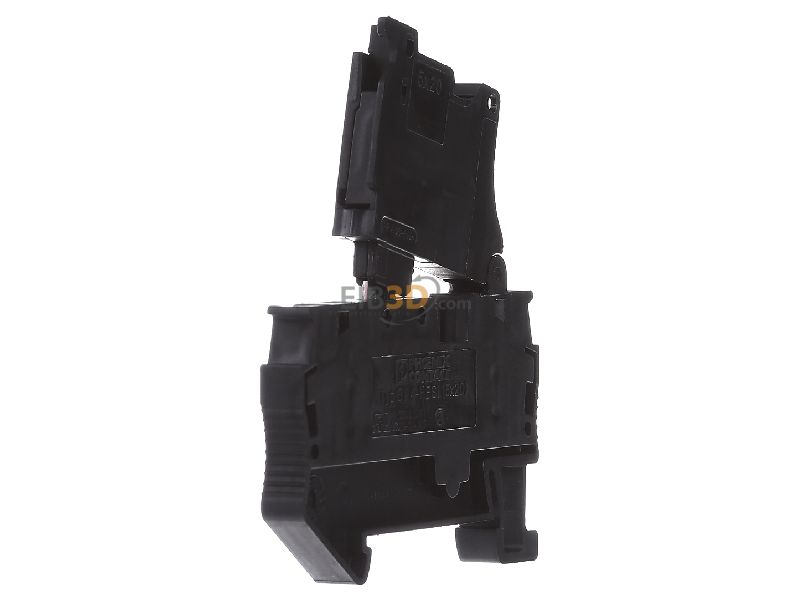

View on the left Phoenix ST4-HESILA250(5X20) G-fuse 5x20 mm terminal block 6,3A 6,2mm
View on the left

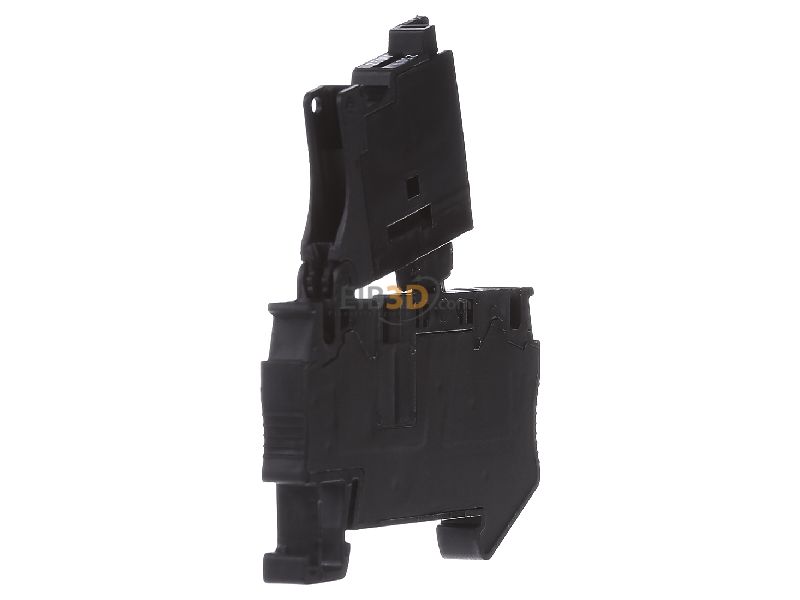

View on the right Phoenix ST4-HESILA250(5X20) G-fuse 5x20 mm terminal block 6,3A 6,2mm
View on the right

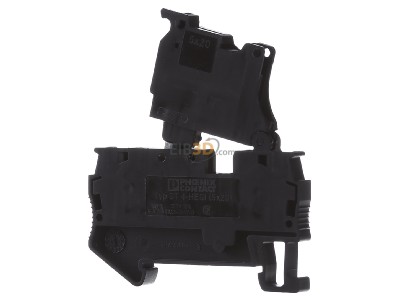

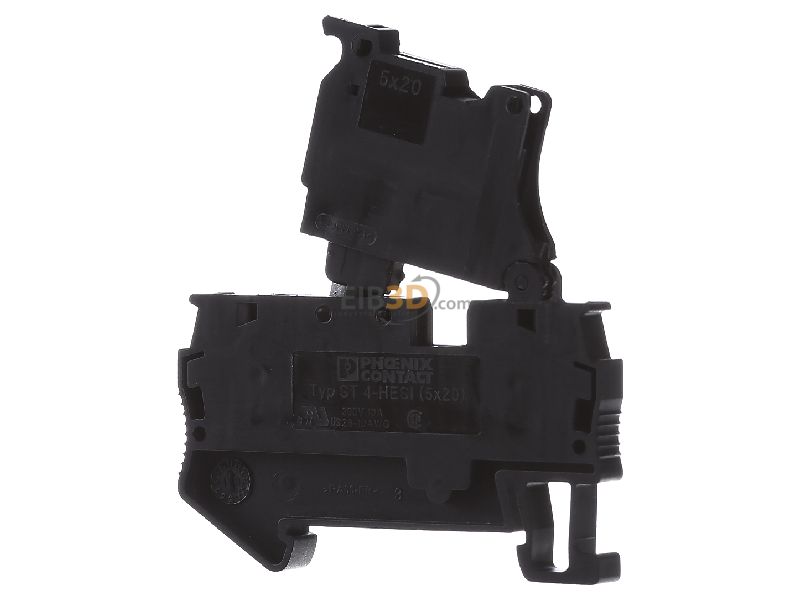

Back view Phoenix ST4-HESILA250(5X20) G-fuse 5x20 mm terminal block 6,3A 6,2mm
Back view

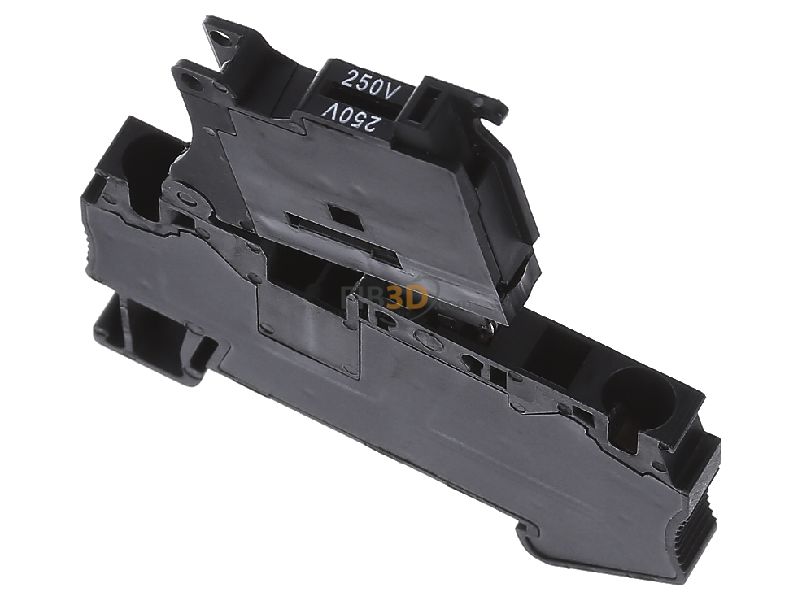

View up front Phoenix ST4-HESILA250(5X20) G-fuse 5x20 mm terminal block 6,3A 6,2mm
View up front

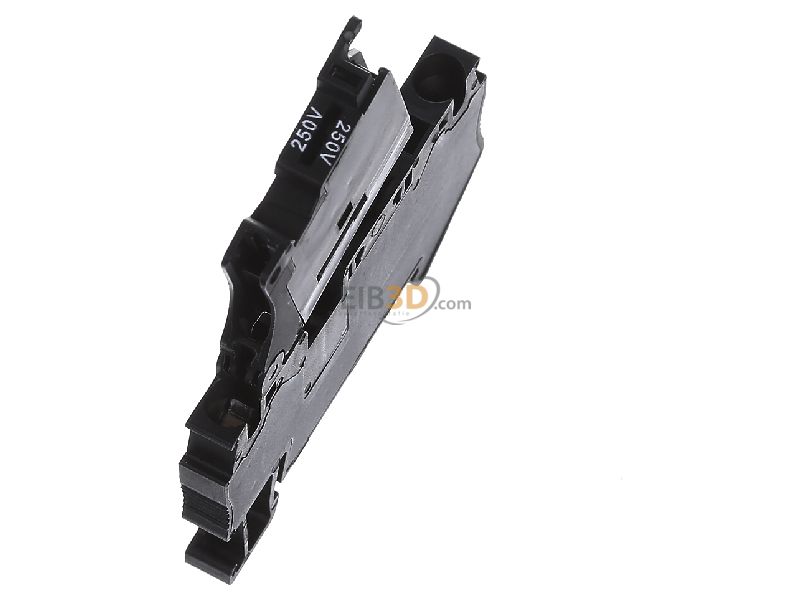

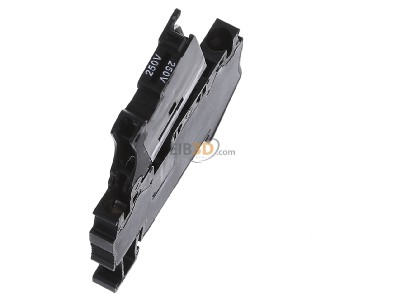

View top left Phoenix ST4-HESILA250(5X20) G-fuse 5x20 mm terminal block 6,3A 6,2mm
View top left

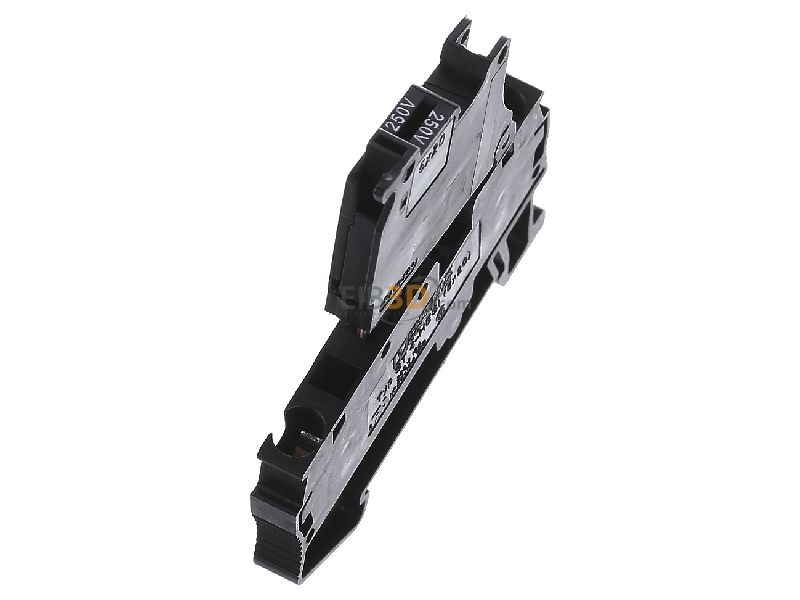

View top right Phoenix ST4-HESILA250(5X20) G-fuse 5x20 mm terminal block 6,3A 6,2mm
View top right
Top rear view Phoenix ST4-HESILA250(5X20) G-fuse 5x20 mm terminal block 6,3A 6,2mm
Top rear view

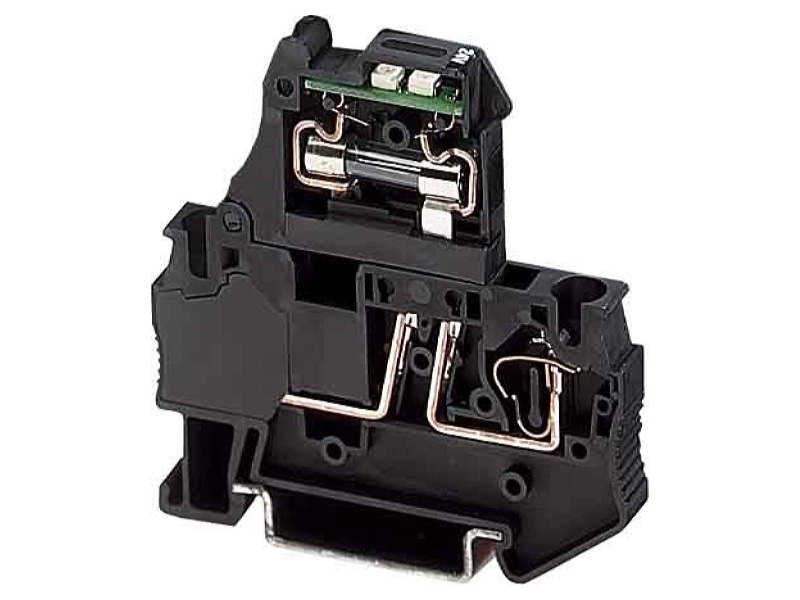

Product image 1 Phoenix ST4 HESILA250 5X20  G fuse 5x20 mm terminal block 6 3A 6 2mm
Product image 1

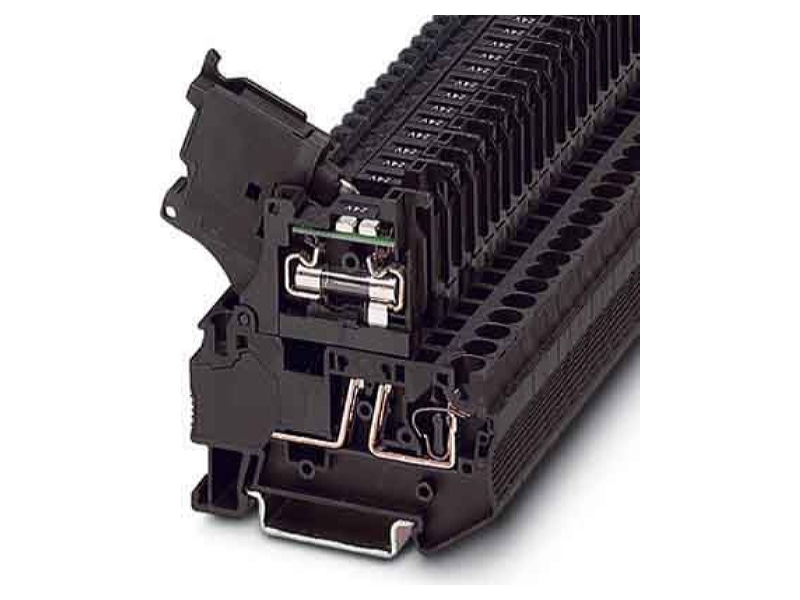

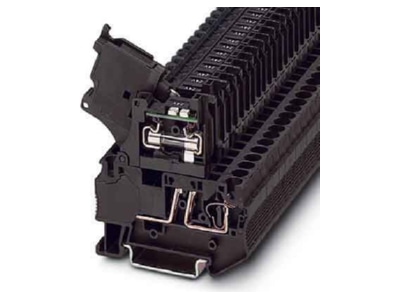

Product image 2 Phoenix ST4 HESILA250 5X20  G fuse 5x20 mm terminal block 6 3A 6 2mm
Product image 2
