Universal terminal block, 2 terminals for 0.2 ... 4mm², gray, UK 5N

EAN/GTIN: 4017918090760
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UK 5 N
Manufact.-SKU: 3004362
Customs tariff no.: 85369010
Similar top items: Show now & compare
1,43 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 6,2mm 32A Connectable conductor cross section fine-strand without cable end sleeve 0,2 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,25 ... 4mm², Connectable conductor cross section solid-core 0,2 ... 4mm², Connectable conductor cross section multi-wired 0,2 ... 4mm², Rated current In 32A, Rated voltage 800V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 6,2mm, Height at lowest possible mounting height 47mm, Length 42,5mm, Explosion-tested version ´Ex e´, Closing plate required, Colour Grey

More product images:

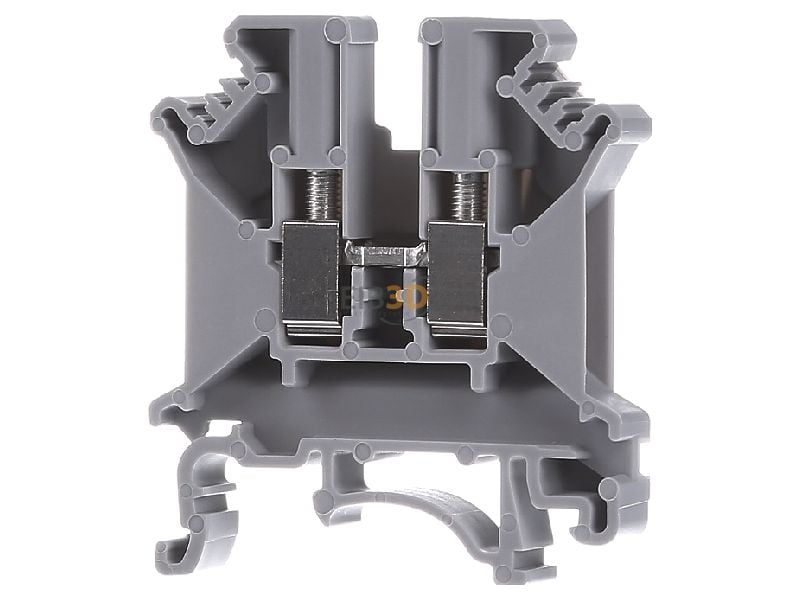

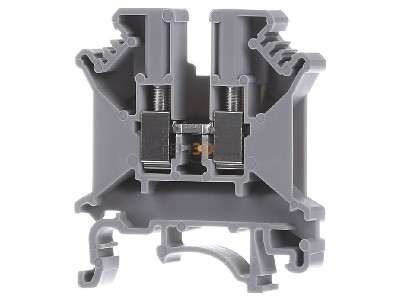

Front view Phoenix UK 5 N Universal terminal block, 2 terminals for 0.2 ... 4mm², gray, UK 5N
Front view

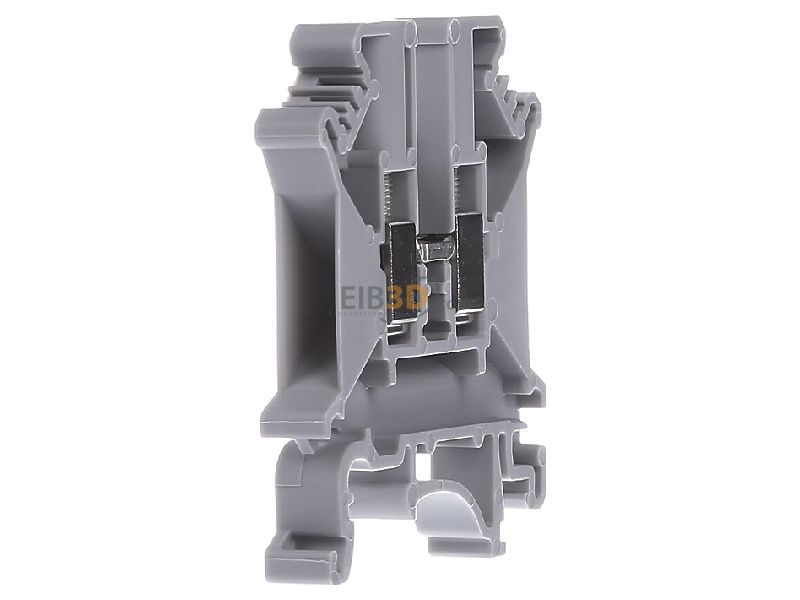

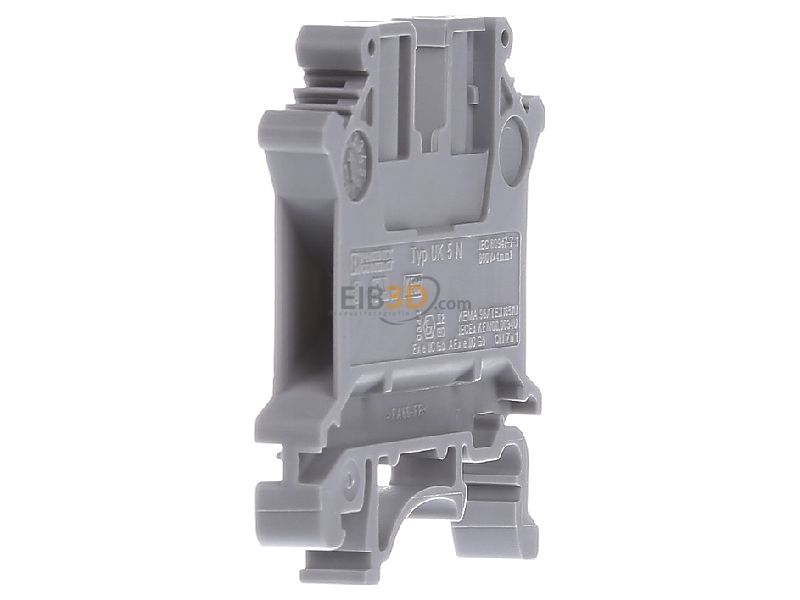

View on the left Phoenix UK 5 N Universal terminal block, 2 terminals for 0.2 ... 4mm², gray, UK 5N
View on the left

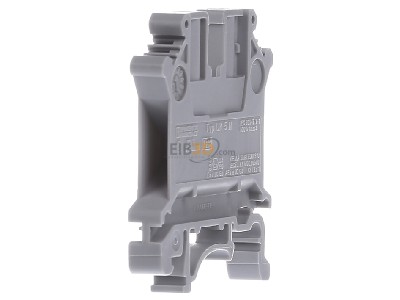

View on the right Phoenix UK 5 N Universal terminal block, 2 terminals for 0.2 ... 4mm², gray, UK 5N
View on the right
Back view Phoenix UK 5 N Universal terminal block, 2 terminals for 0.2 ... 4mm², gray, UK 5N
Back view

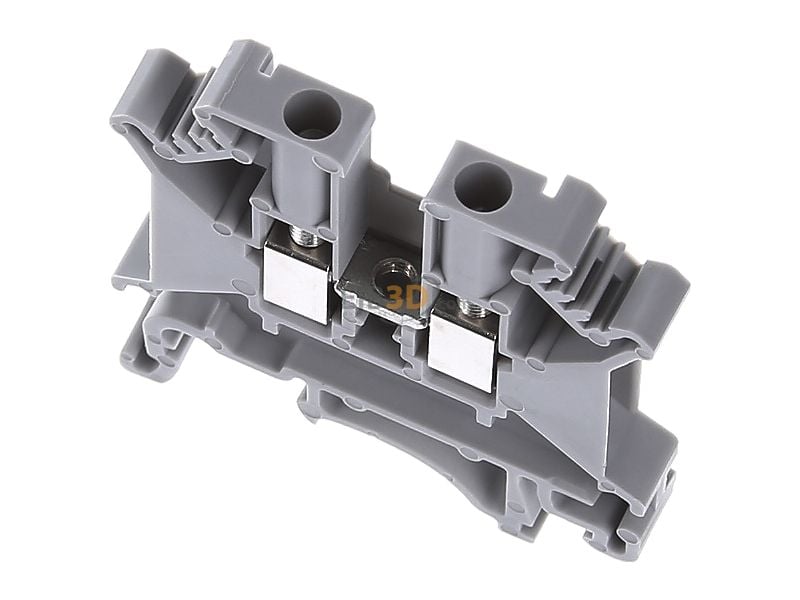

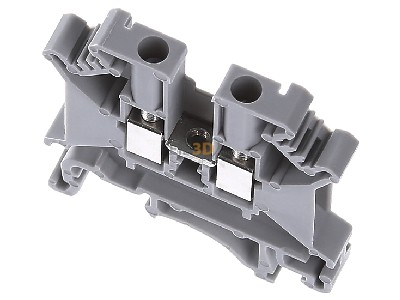

View up front Phoenix UK 5 N Universal terminal block, 2 terminals for 0.2 ... 4mm², gray, UK 5N
View up front

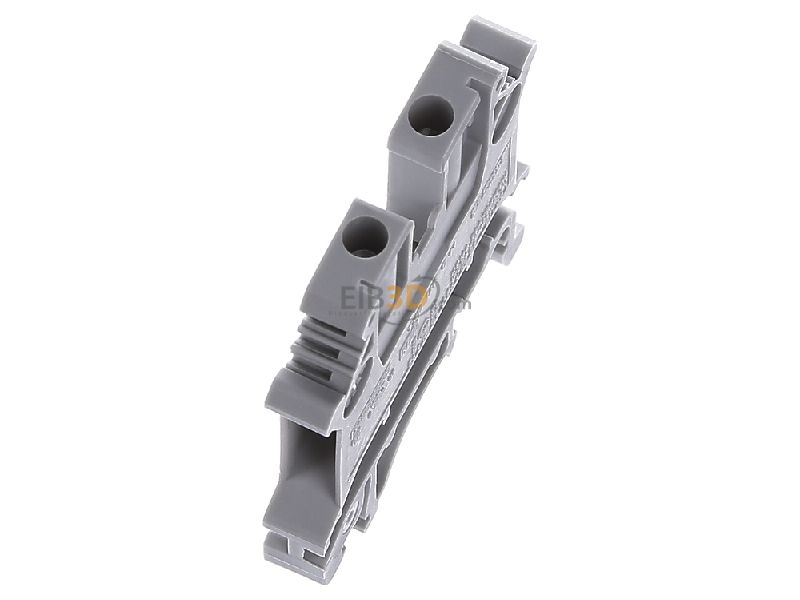

View top left Phoenix UK 5 N Universal terminal block, 2 terminals for 0.2 ... 4mm², gray, UK 5N
View top left

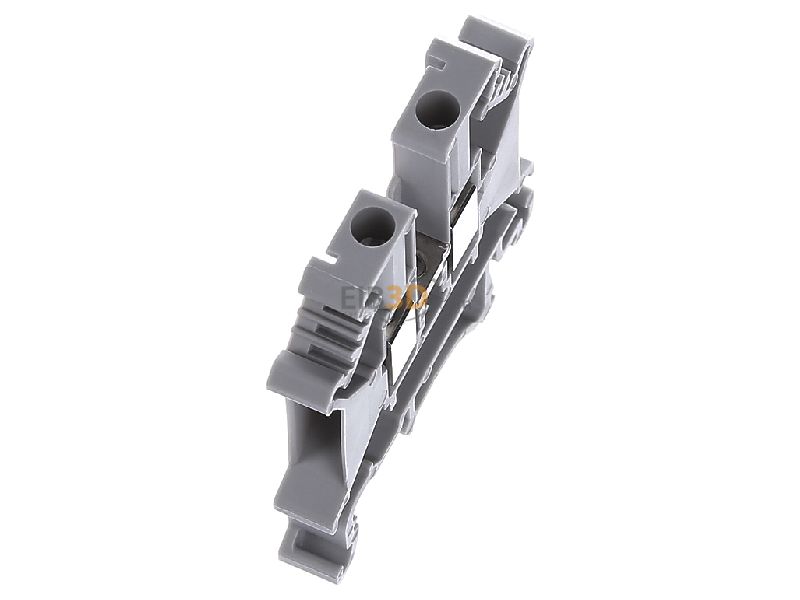

View top right Phoenix UK 5 N Universal terminal block, 2 terminals for 0.2 ... 4mm², gray, UK 5N
View top right
Top rear view Phoenix UK 5 N Universal terminal block, 2 terminals for 0.2 ... 4mm², gray, UK 5N
Top rear view
Product image 1 Phoenix UK 5 N Universal terminal block  2 terminals for 0 2     4mm   gray  UK 5N
Product image 1
Product image 2 Phoenix UK 5 N Universal terminal block  2 terminals for 0 2     4mm   gray  UK 5N
Product image 2
