Feed-through terminal block 31mm 309A UKH 150 BU

EAN/GTIN: 4017918091859
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UKH 150 BU
Manufact.-SKU: 3010123
Customs tariff no.: 85369010
Similar top items: Show now & compare
24,79 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 31mm 309A Connectable conductor cross section fine-strand without cable end sleeve 50 ... 150mm², Connectable conductor cross section fine-strand with cable end sleeve 50 ... 150mm², Connectable conductor cross section solid-core 35 ... 150mm², Connectable conductor cross section multi-wired 50 ... 150mm², Rated current In 309A, Rated voltage 1000V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 31mm, Height at lowest possible mounting height 107,3mm, Length 100mm, Explosion-tested version ´Ex e´, Colour Blue

More product images:

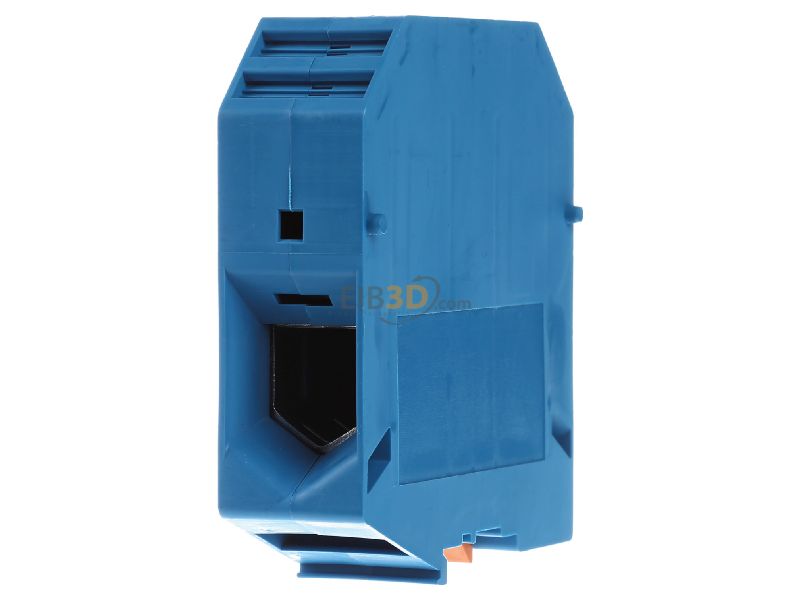

Front view Phoenix UKH 150 BU Feed-through terminal block 31mm 309A
Front view

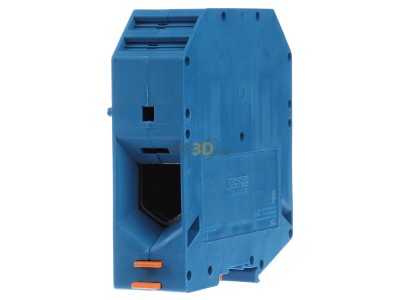

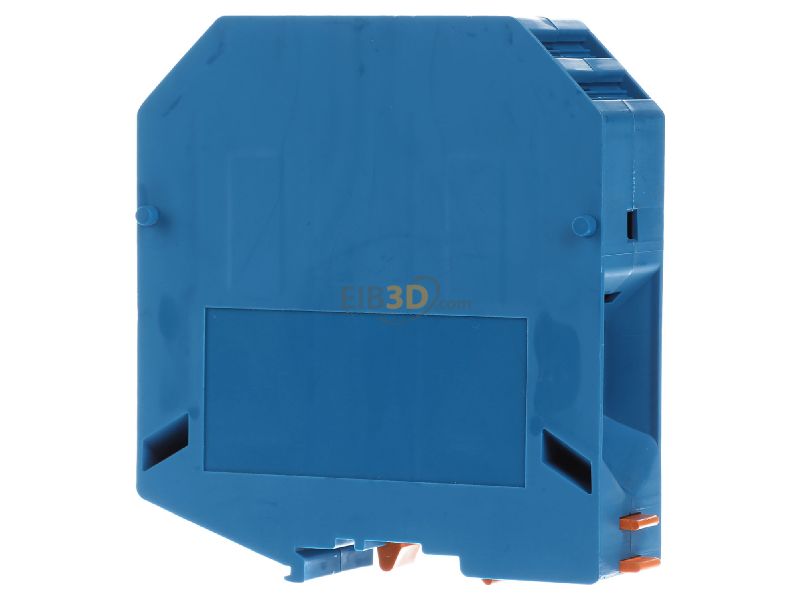

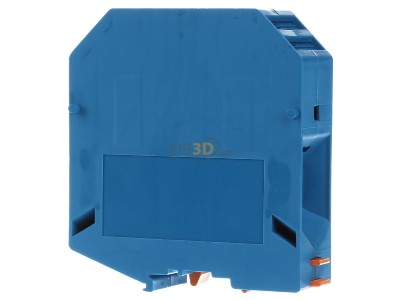

View on the left Phoenix UKH 150 BU Feed-through terminal block 31mm 309A
View on the left

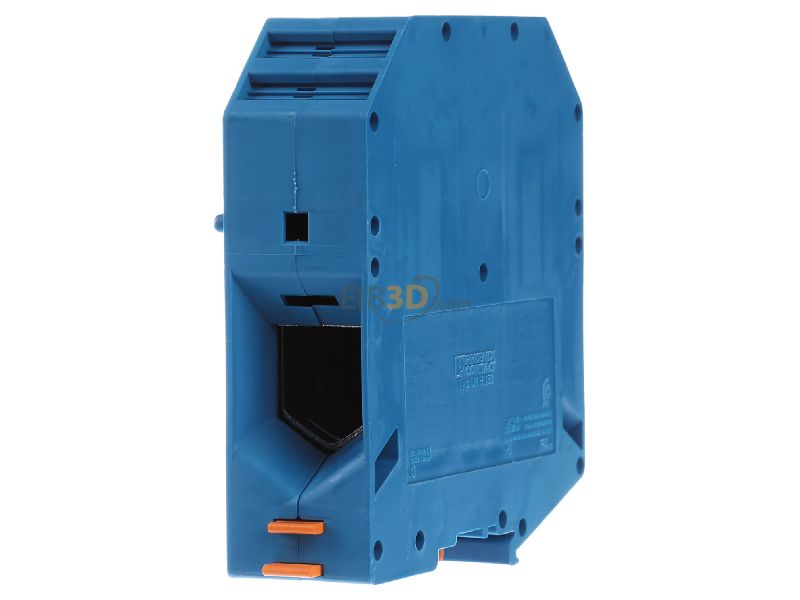

View on the right Phoenix UKH 150 BU Feed-through terminal block 31mm 309A
View on the right

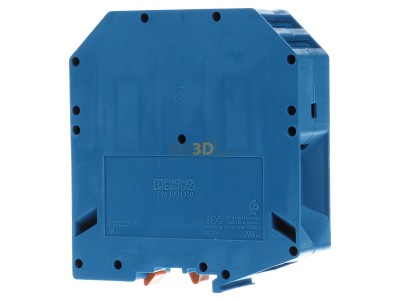

Back view Phoenix UKH 150 BU Feed-through terminal block 31mm 309A
Back view

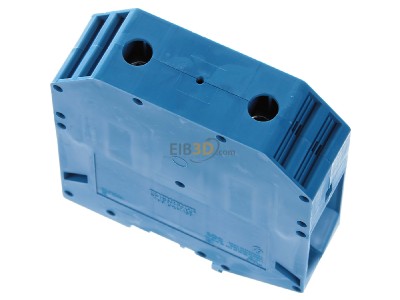

View up front Phoenix UKH 150 BU Feed-through terminal block 31mm 309A
View up front

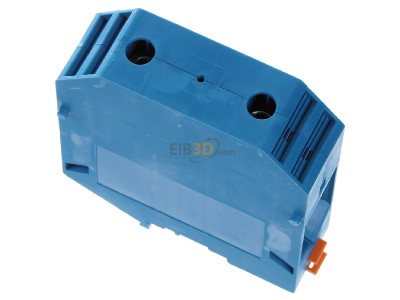

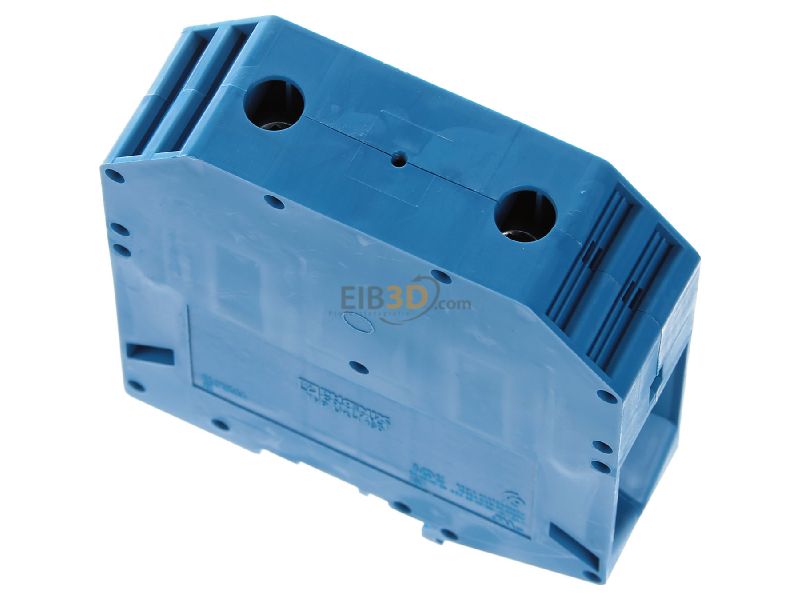

View top left Phoenix UKH 150 BU Feed-through terminal block 31mm 309A
View top left

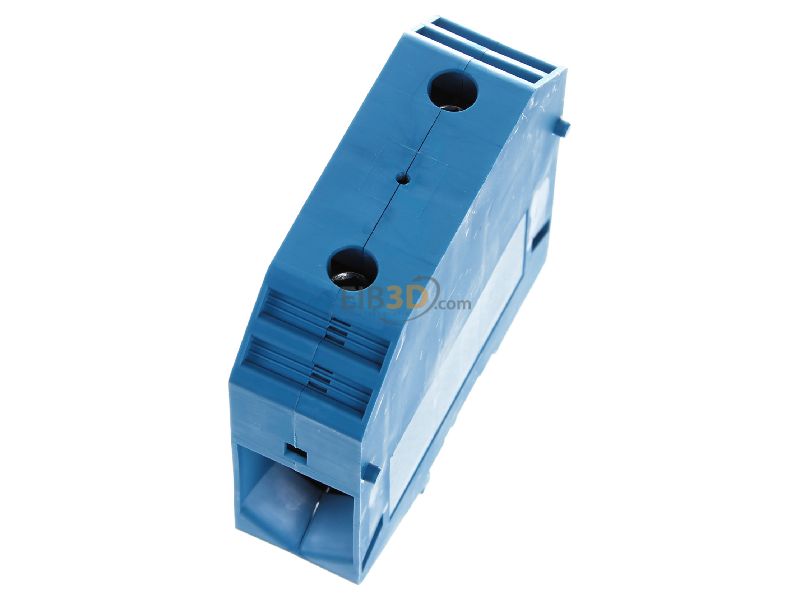

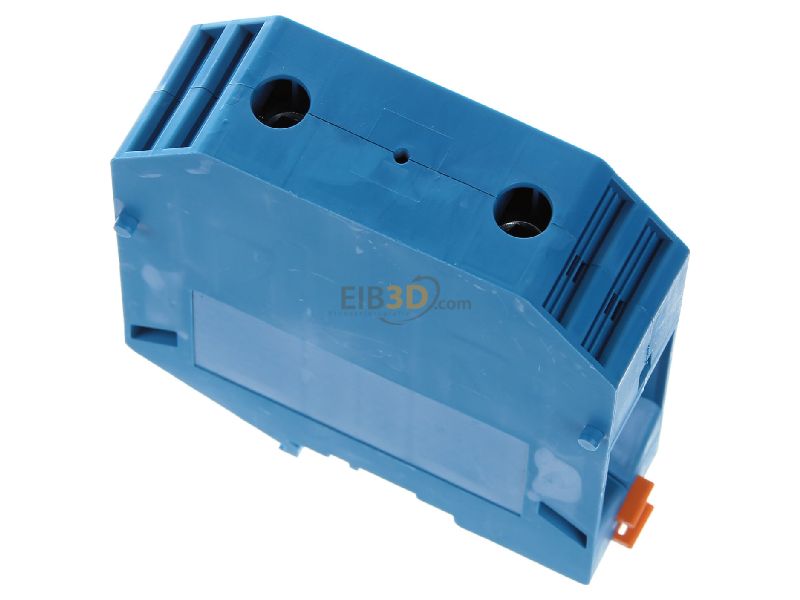

View top right Phoenix UKH 150 BU Feed-through terminal block 31mm 309A
View top right

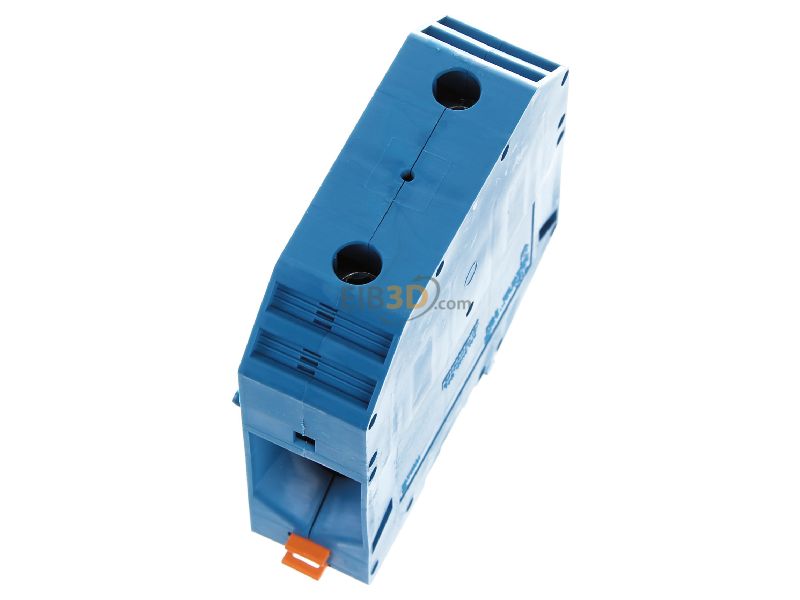

Top rear view Phoenix UKH 150 BU Feed-through terminal block 31mm 309A
Top rear view

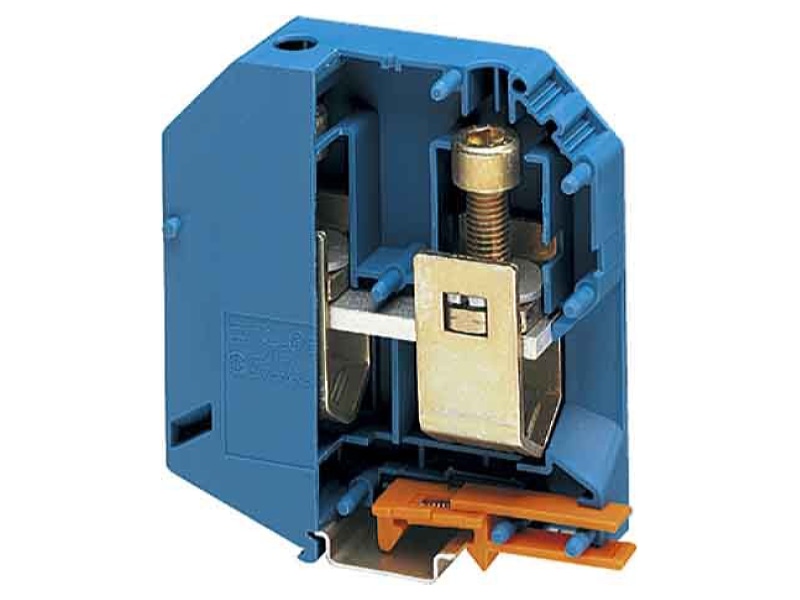

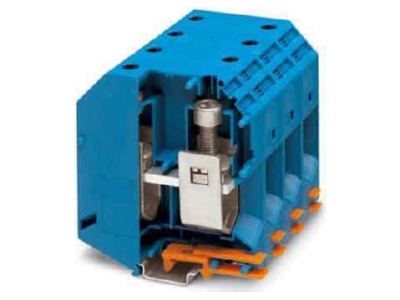

Product image 1 Phoenix UKH 150 BU Feed through terminal block 31mm 309A
Product image 1

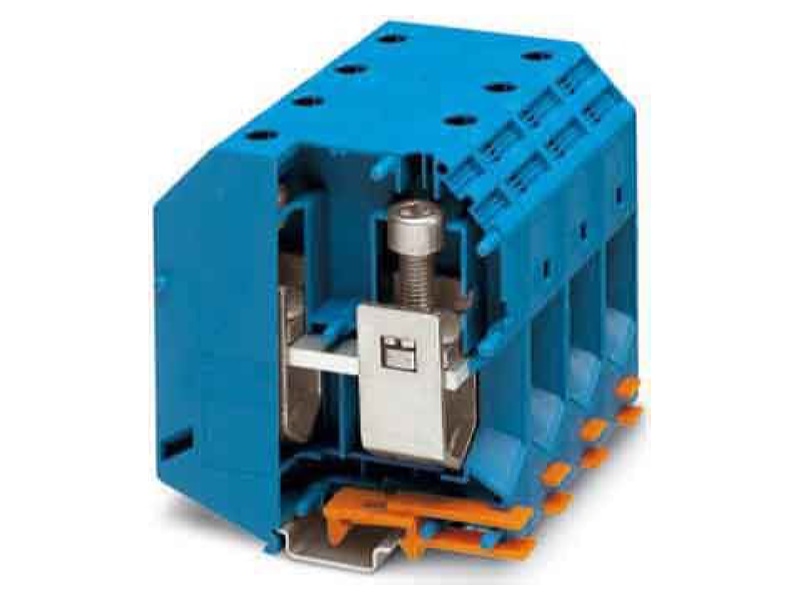

Product image 2 Phoenix UKH 150 BU Feed through terminal block 31mm 309A
Product image 2
