Feed-through terminal block 16mm 125A UT 35 BU

EAN/GTIN: 4017918977566
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UT 35 BU
Manufact.-SKU: 3044238
Customs tariff no.: 85369010
Similar top items: Show now & compare
4,16 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 16mm 125A Connectable conductor cross section fine-strand without cable end sleeve 1,5 ... 50mm², Connectable conductor cross section fine-strand with cable end sleeve 1,5 ... 35mm², Connectable conductor cross section solid-core 1,5 ... 50mm², Connectable conductor cross section multi-wired 1,5 ... 50mm², Rated current In 125A, Rated voltage 1000V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 16mm, Height at lowest possible mounting height 65,1mm, Length 60,2mm, Explosion-tested version ´Ex e´, Colour Blue

More product images:

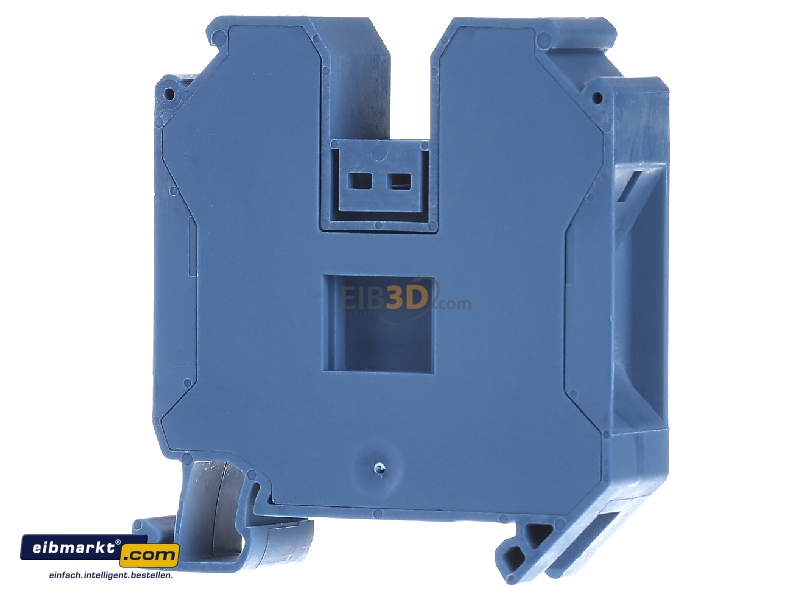

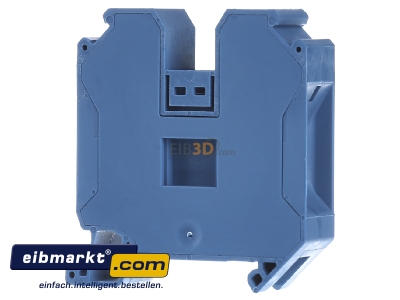

Front view Phoenix Contact UT 35 BU Feed-through terminal block 16mm 125A
Front view

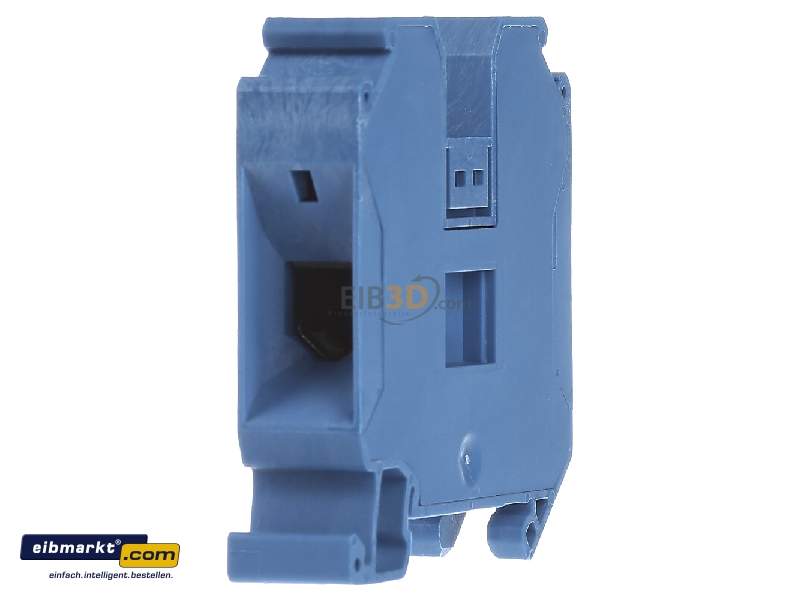

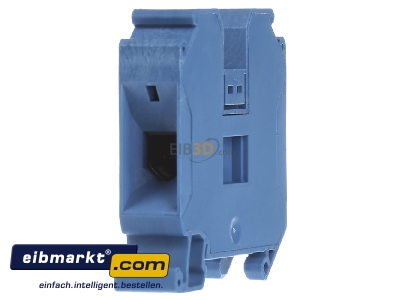

View on the left Phoenix Contact UT 35 BU Feed-through terminal block 16mm 125A
View on the left

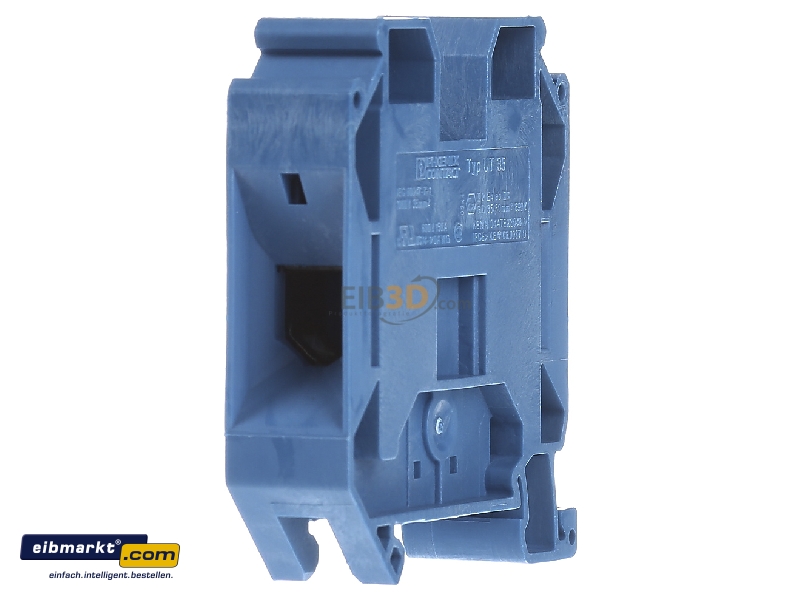

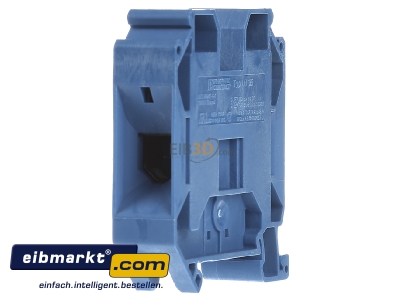

View on the right Phoenix Contact UT 35 BU Feed-through terminal block 16mm 125A
View on the right

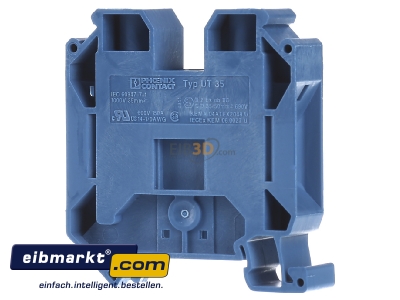

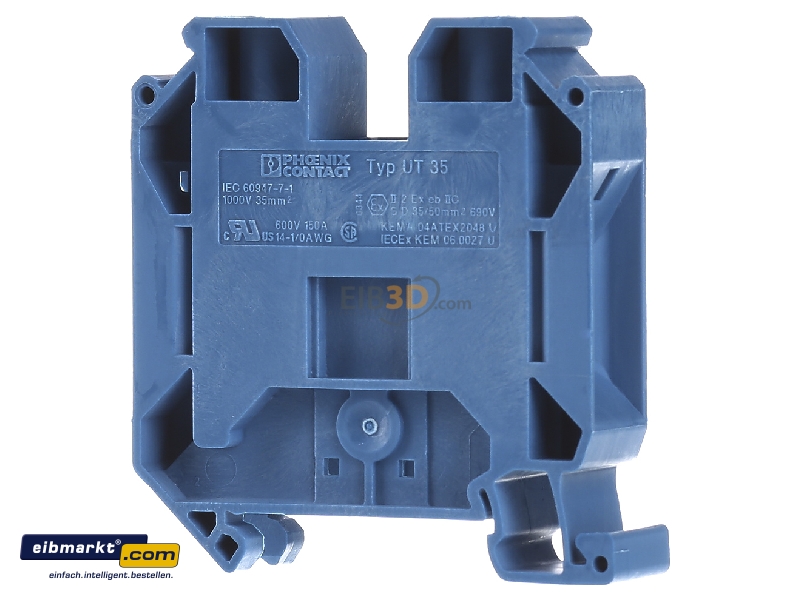

Back view Phoenix Contact UT 35 BU Feed-through terminal block 16mm 125A
Back view

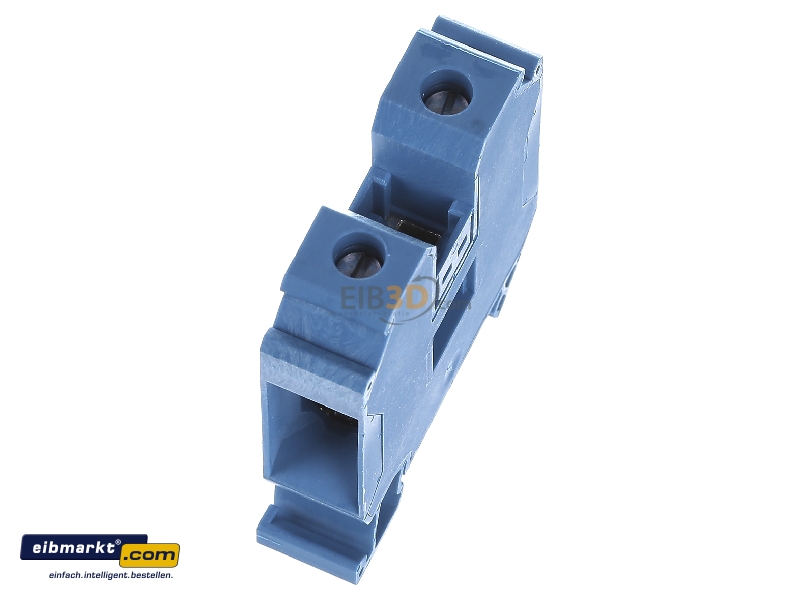

View up front Phoenix Contact UT 35 BU Feed-through terminal block 16mm 125A
View up front

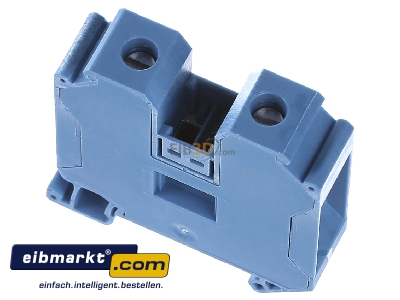

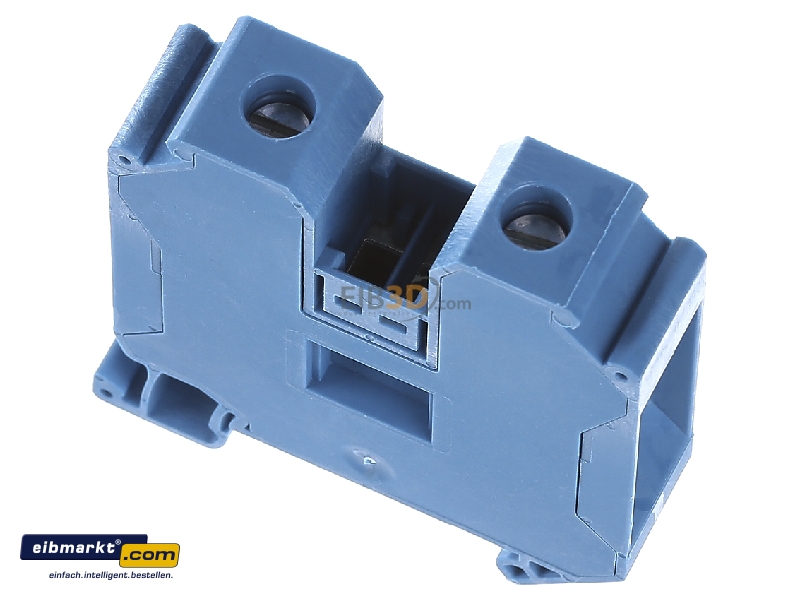

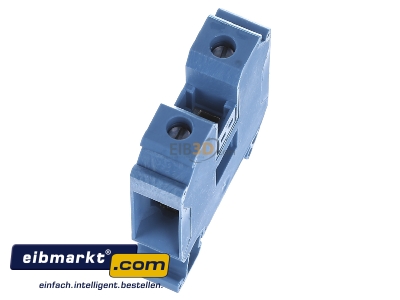

View top left Phoenix Contact UT 35 BU Feed-through terminal block 16mm 125A
View top left

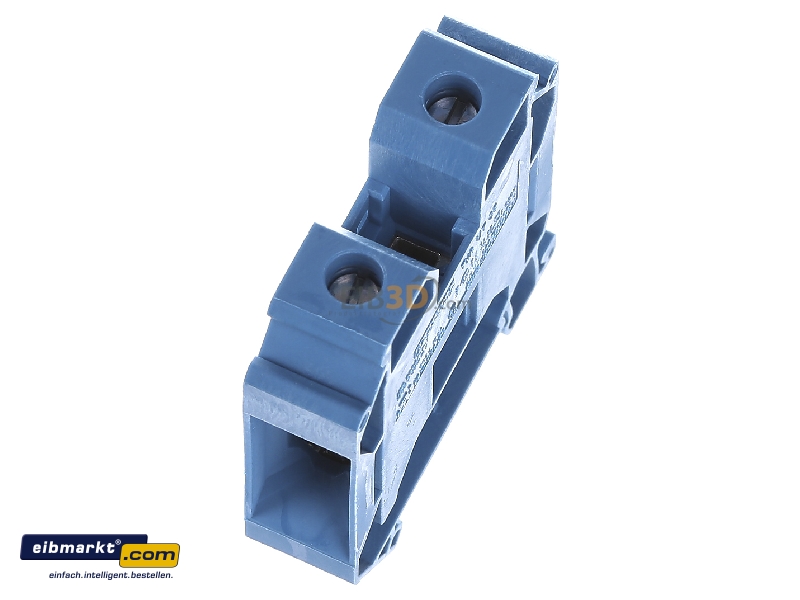

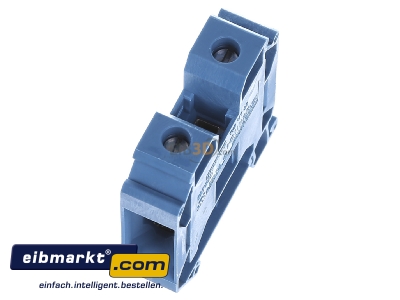

View top right Phoenix Contact UT 35 BU Feed-through terminal block 16mm 125A
View top right

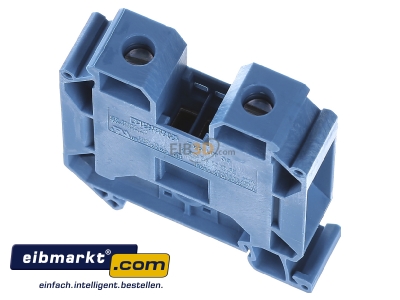

Top rear view Phoenix Contact UT 35 BU Feed-through terminal block 16mm 125A
Top rear view
Product image 1 Phoenix UT 35 BU Feed through terminal block 16mm 125A
Product image 1
Product image 2 Phoenix UT 35 BU Feed through terminal block 16mm 125A
Product image 2
