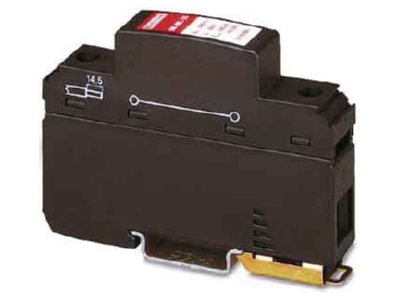

Feed-through terminal block 17,7mm 100A DK-BIC-35
Source photo:
Phoenix
(fig. might be different or similar)

Feed-through terminal block 17,7mm 100A DK-BIC-35

EAN/GTIN: 4017918108212
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: DK-BIC-35
Manufact.-SKU: 2749880
Customs tariff no.: 85363010
Similar top items: Show now & compare
24,80 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Feed-through terminal block 17,7mm 100A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 25mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 25mm², Connectable conductor cross section solid-core 0,5 ... 35mm², Rated current In 100A, Rated voltage 600V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -40 ... 85°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 17,7mm, Height at lowest possible mounting height 89,8mm, Colour Other

More product images:

Product image 1 Phoenix DK BIC 35 Feed through terminal block 17 7mm 100A
Product image 1
Product image 2 Phoenix DK BIC 35 Feed through terminal block 17 7mm 100A
Product image 2
