Disconnect terminal block 20A 1-p 5,2mm ST 2,5-TG

EAN/GTIN: 4017918890612
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: ST 2,5-TG
Manufact.-SKU: 3038435
Customs tariff no.: 85369010
Similar top items: Show now & compare
1,73 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Disconnect terminal block 20A 1-p 5,2mm Connectable conductor cross section fine-strand without cable end sleeve 0,08 ... 2,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,14 ... 2,5mm², Connectable conductor cross section solid-core 0,08 ... 4mm², Connectable conductor cross section multi-wired 0,08 ... 2,5mm², Rated current In 20A, Rated voltage 400V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5,2mm, Height at lowest possible mounting height 36,5mm, Closing plate required, Colour Grey, Type of slitting Pluggable, Type of cross disconnection None, Length 60,5mm

More product images:

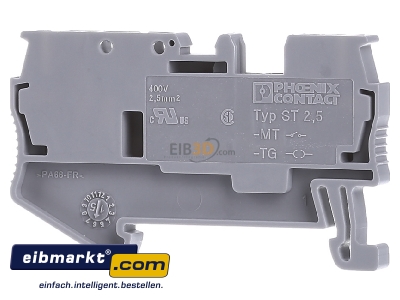

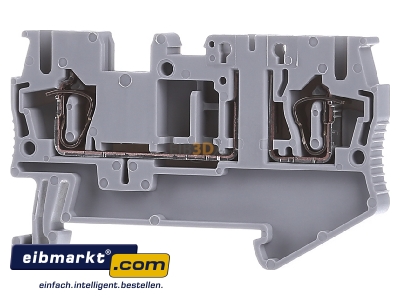

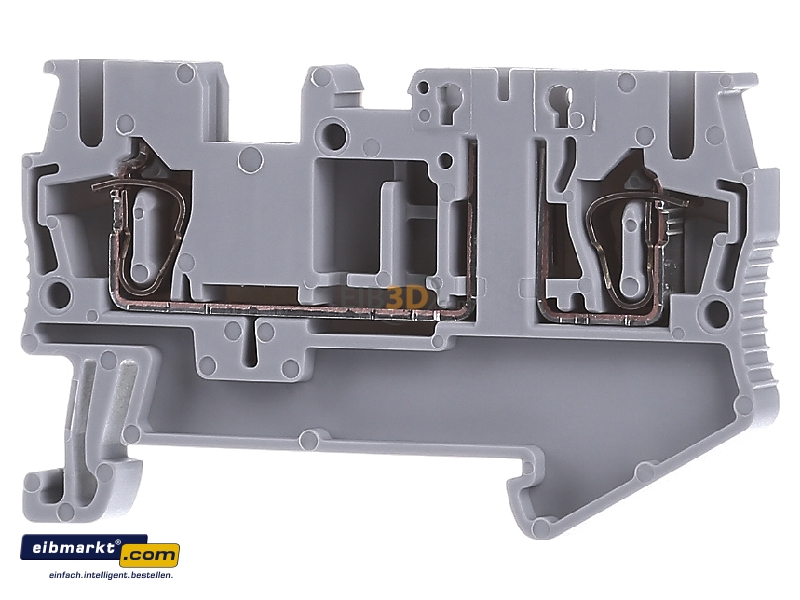

Front view Phoenix Contact ST 2,5-TG Disconnect terminal block 16A 1-p 5,2mm -
Front view

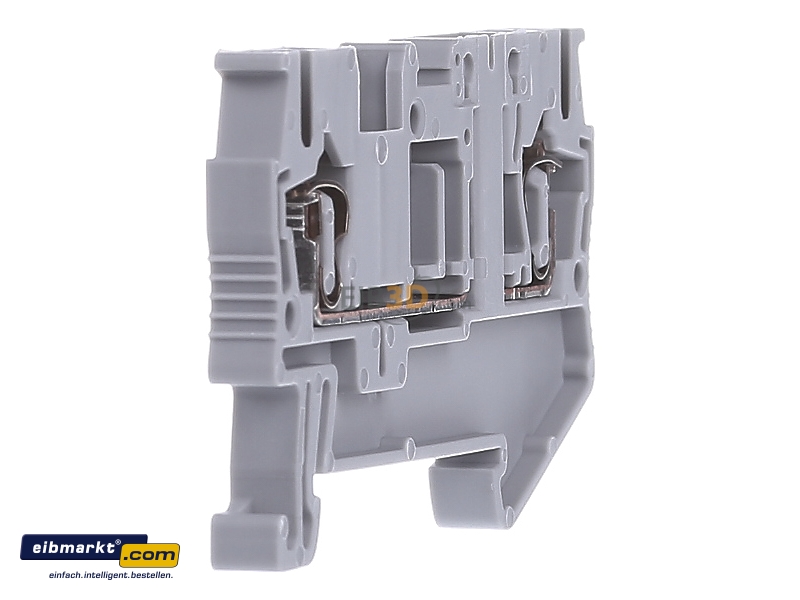

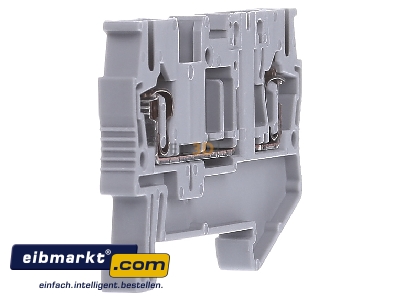

View on the left Phoenix Contact ST 2,5-TG Disconnect terminal block 16A 1-p 5,2mm -
View on the left

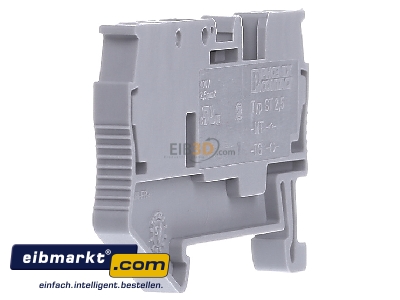

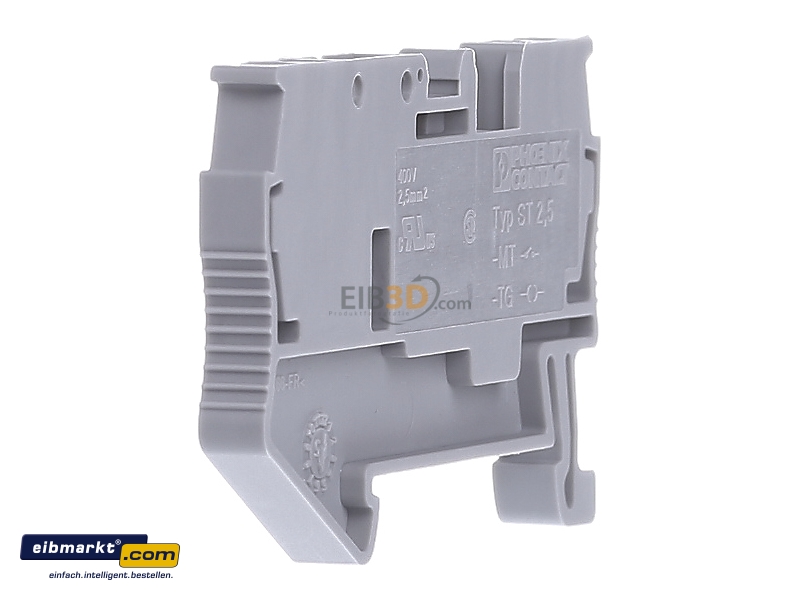

View on the right Phoenix Contact ST 2,5-TG Disconnect terminal block 16A 1-p 5,2mm -
View on the right

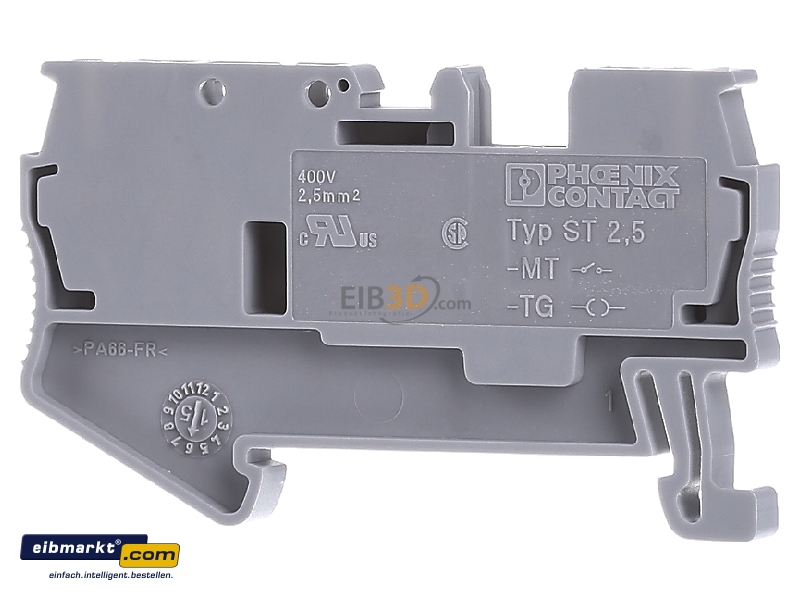

Back view Phoenix Contact ST 2,5-TG Disconnect terminal block 16A 1-p 5,2mm -
Back view

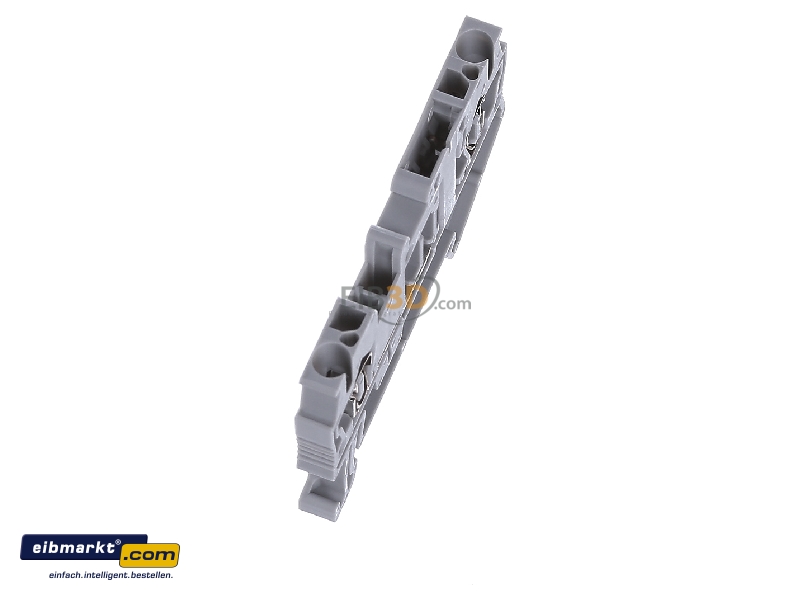

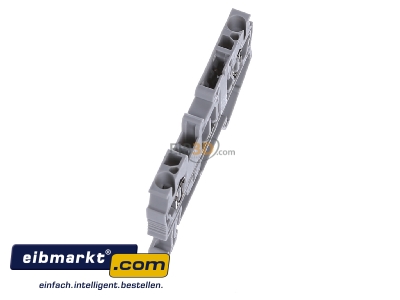

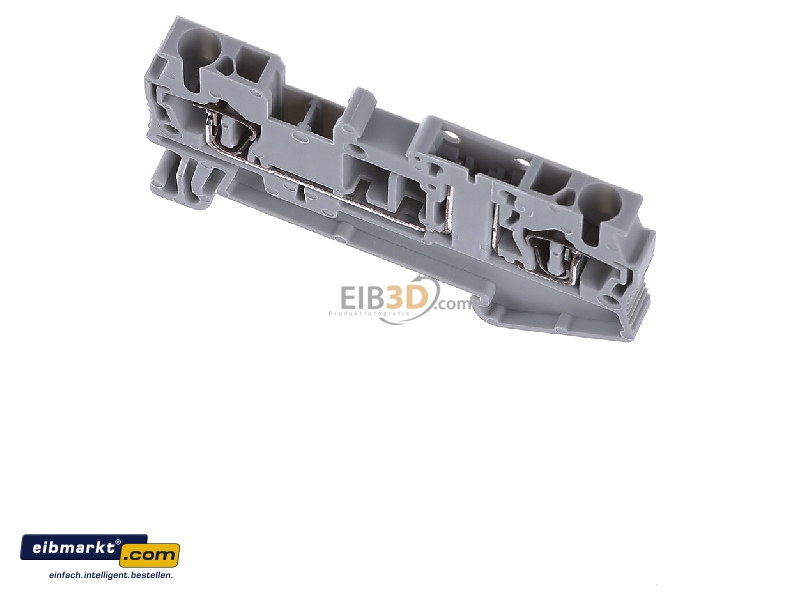

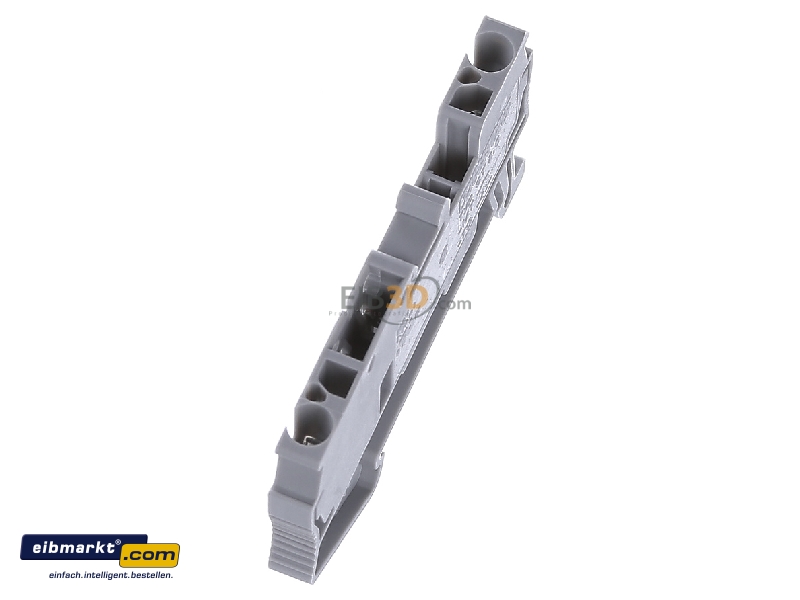

View up front Phoenix Contact ST 2,5-TG Disconnect terminal block 16A 1-p 5,2mm -
View up front

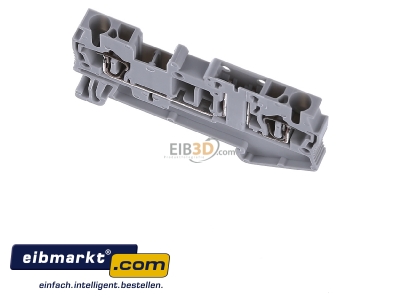

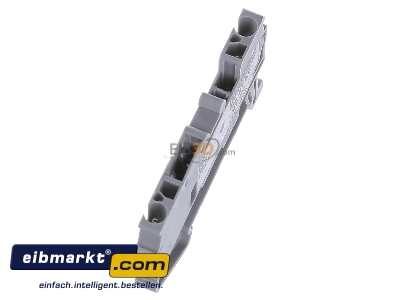

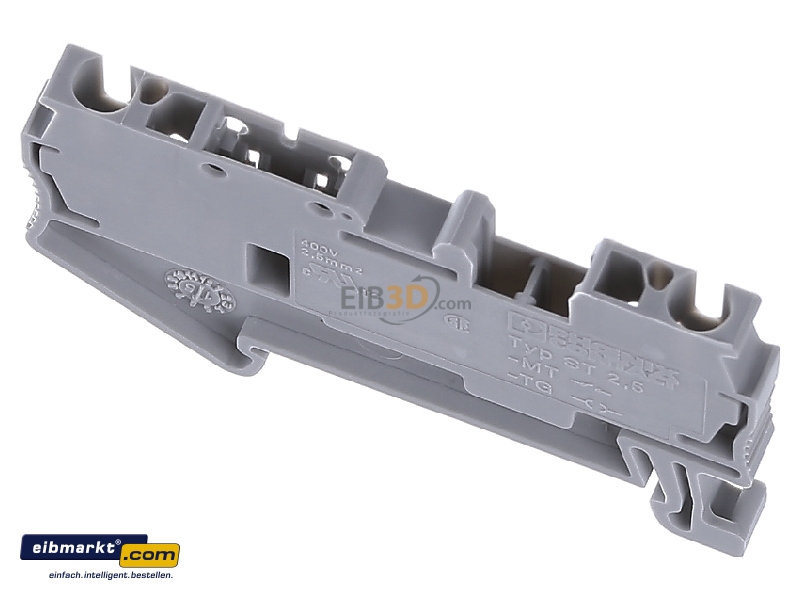

View top left Phoenix Contact ST 2,5-TG Disconnect terminal block 16A 1-p 5,2mm -
View top left
View top right Phoenix Contact ST 2,5-TG Disconnect terminal block 16A 1-p 5,2mm -
View top right

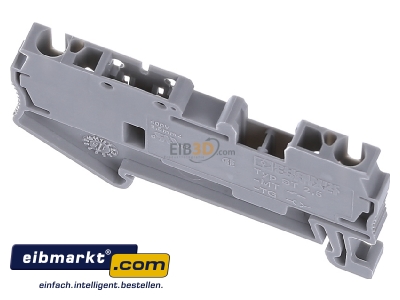

Top rear view Phoenix Contact ST 2,5-TG Disconnect terminal block 16A 1-p 5,2mm -
Top rear view

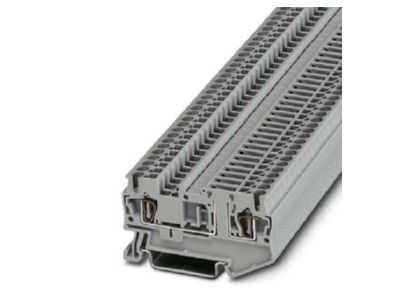

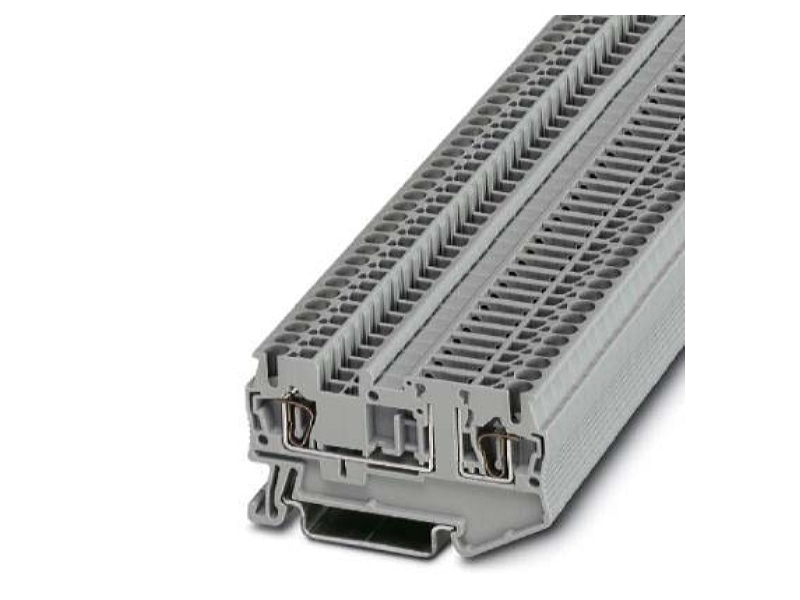

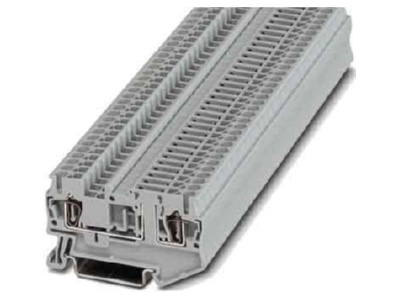

Product image 1 Phoenix ST 2 5 TG Disconnect terminal block 20A 1 p 5 2mm
Product image 1

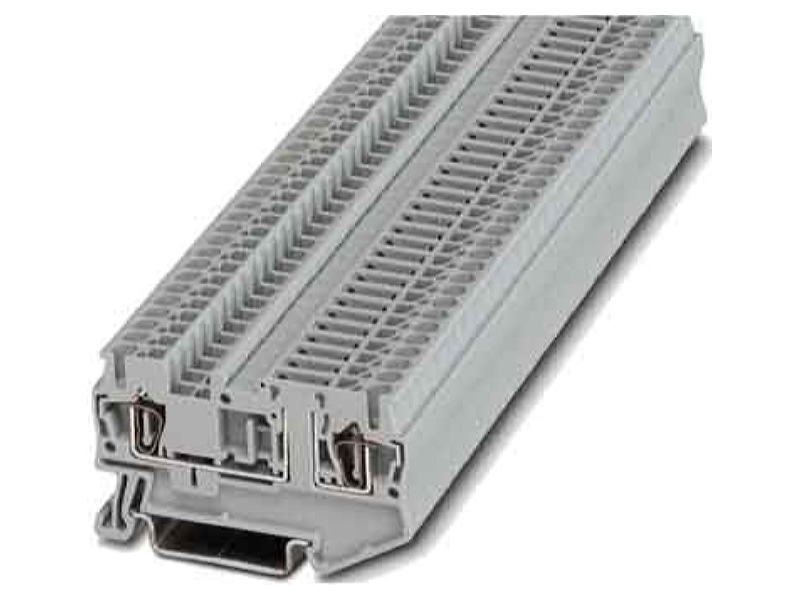

Product image 2 Phoenix ST 2 5 TG Disconnect terminal block 20A 1 p 5 2mm
Product image 2
