DC-power supply 85...264V/24V 72W TRIOPS2G1AC24DC3C2LP
Source photo:
Phoenix
(fig. might be different or similar)

DC-power supply 85...264V/24V 72W TRIOPS2G1AC24DC3C2LP

EAN/GTIN: 4046356959445
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: TRIOPS2G1AC24DC3C2LP
Manufact.-SKU: 2903147
Customs tariff no.: 85044095
Similar top items: Show now & compare
66,59 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

DC-power supply 85...264V/24V 72W Voltage type of supply voltage AC, 1st secondary output voltage 24 ... 24V, 2nd secondary output voltage 24 ... 28V, Max. output current 1 3A, Secondary voltage adjustable, Short-circuit-proof, Rated supply voltage at AC 50 Hz 85 ... 264V, Rated supply voltage at AC 60 Hz 85 ... 264V, Rated supply voltage at DC 110 ... 250V, Output voltage stabilized, Power consumption 0,7VA, Power output 72W, Stabilized, Type of electric connection Other, Rail mounting possible, Width in number of modular spacings 1,7, Built-in height 130mm, Width 30mm, Height 130mm, Depth 115mm, Suitable for safety functions, Degree of protection (IP) IP20

More product images:

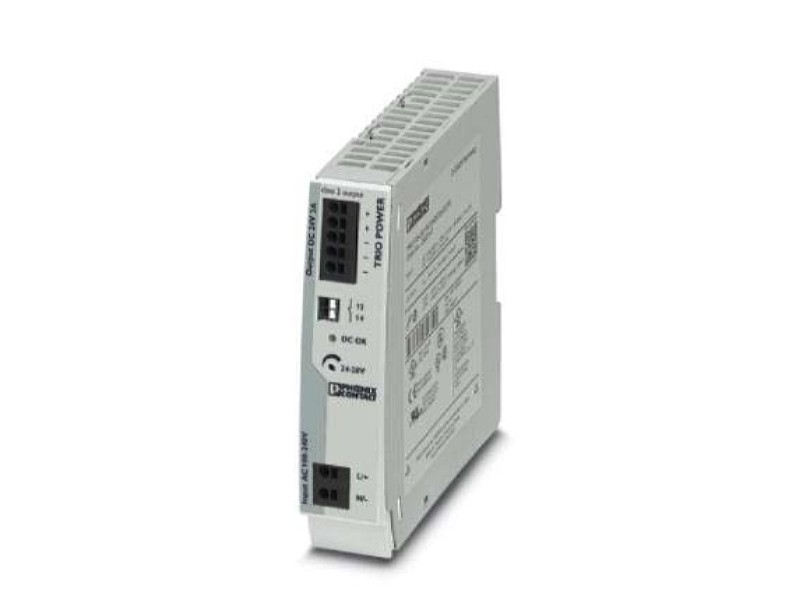

Product image 1 Phoenix TRIOPS2G1AC24DC3C2LP DC power supply 85   264V 24V 72W
Product image 1

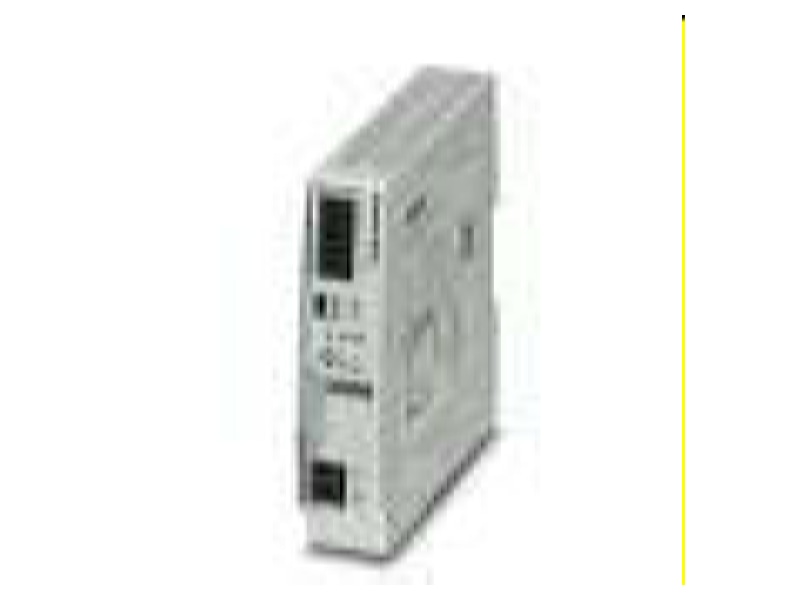

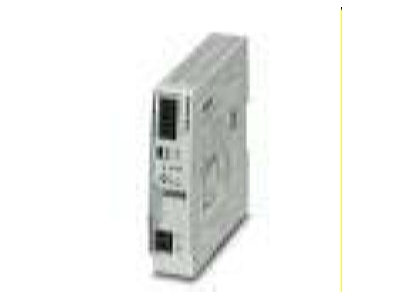

Product image 2 Phoenix TRIOPS2G1AC24DC3C2LP DC power supply 85   264V 24V 72W
Product image 2
