DC-power supply 85...264V/24...28V 120W TRIOPS2G/1AC/24DC/5

EAN/GTIN: 4046356960847
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: TRIOPS2G/1AC/24DC/5
Manufact.-SKU: 2903148
Customs tariff no.: 85044095
Similar top items: Show now & compare
95,16 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

DC-power supply 85...264V/24...28V 120W Voltage type of supply voltage AC, 1st secondary output voltage 24 ... 28V, Max. output current 1 5A, Secondary voltage adjustable, Nominal value output voltage 1 24V, Nominal value output current 1 5A, Short-circuit-proof, Rated supply voltage at AC 50 Hz 85 ... 264V, Rated supply voltage at AC 60 Hz 85 ... 264V, Rated supply voltage at DC 110 ... 250V, Output voltage stabilized, Power consumption 1,1VA, Power output 120W, Stabilized, Type of electric connection Other, Rail mounting possible, Built-in width 35mm, Built-in height 130mm, Width 35mm, Height 130mm, Depth 115mm, Suitable for safety functions, SIL according to IEC 61508 None, Performance level acc. EN ISO 13849-1 None, Degree of protection (IP) IP20

More product images:

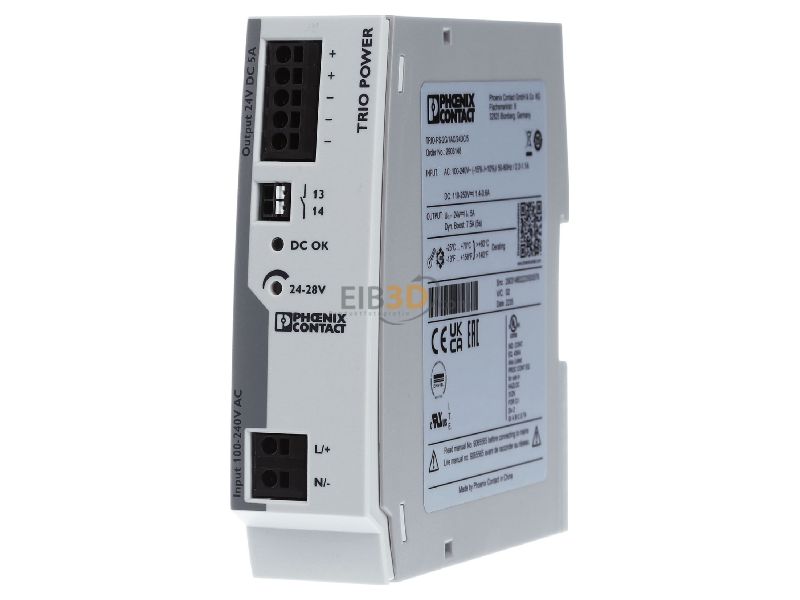

Front view Phoenix TRIOPS2G/1AC/24DC/5 DC-power supply 85...264V/24...28V 120W
Front view

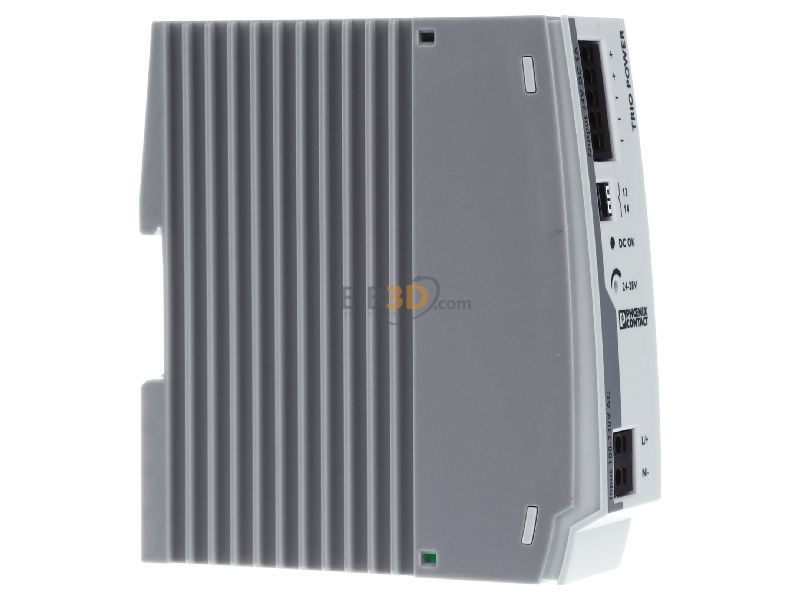

View on the left Phoenix TRIOPS2G/1AC/24DC/5 DC-power supply 85...264V/24...28V 120W
View on the left

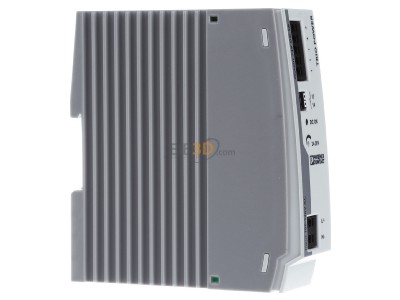

View on the right Phoenix TRIOPS2G/1AC/24DC/5 DC-power supply 85...264V/24...28V 120W
View on the right

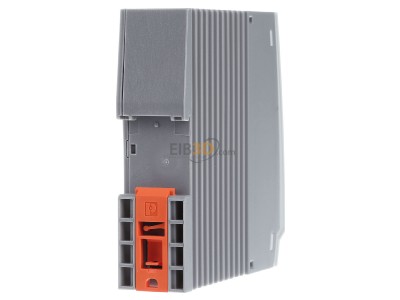

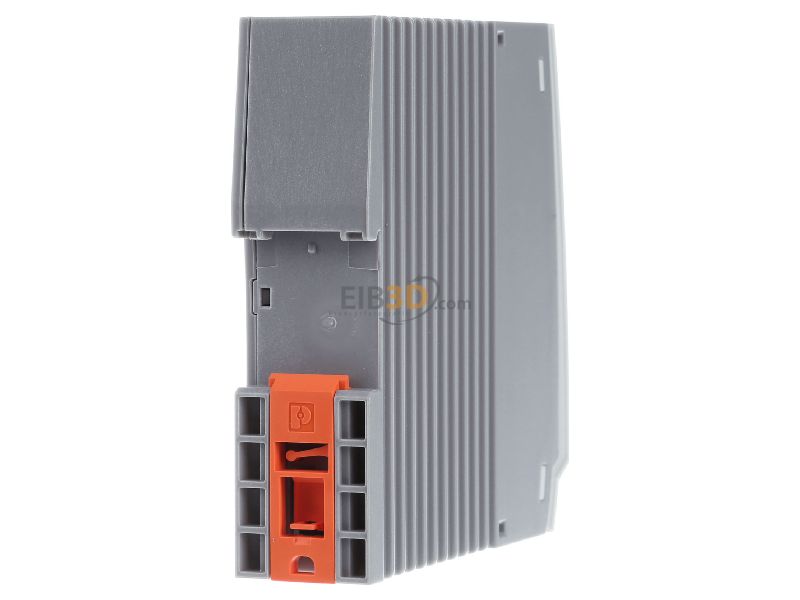

Back view Phoenix TRIOPS2G/1AC/24DC/5 DC-power supply 85...264V/24...28V 120W
Back view

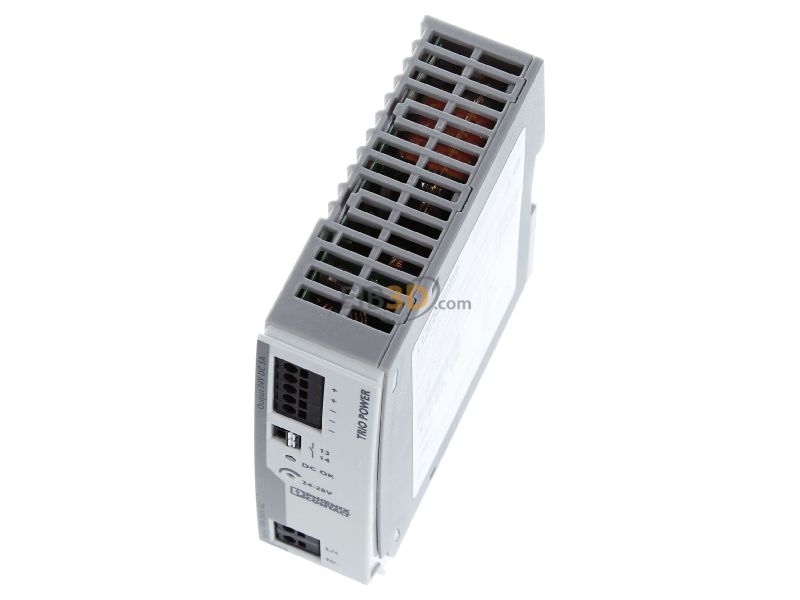

View up front Phoenix TRIOPS2G/1AC/24DC/5 DC-power supply 85...264V/24...28V 120W
View up front

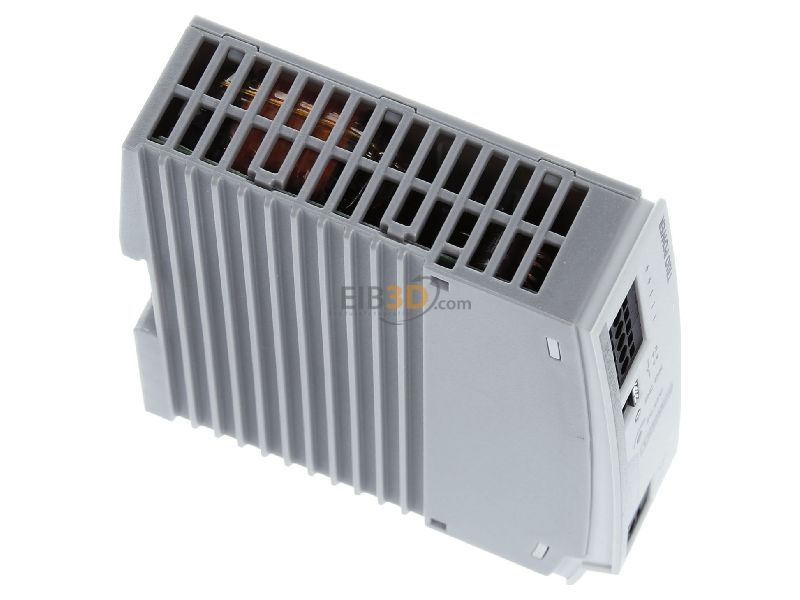

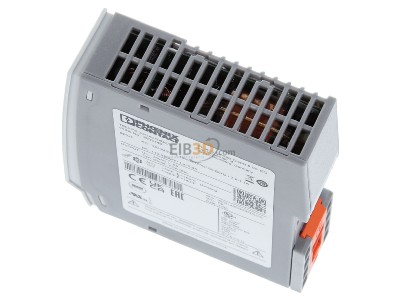

View top left Phoenix TRIOPS2G/1AC/24DC/5 DC-power supply 85...264V/24...28V 120W
View top left

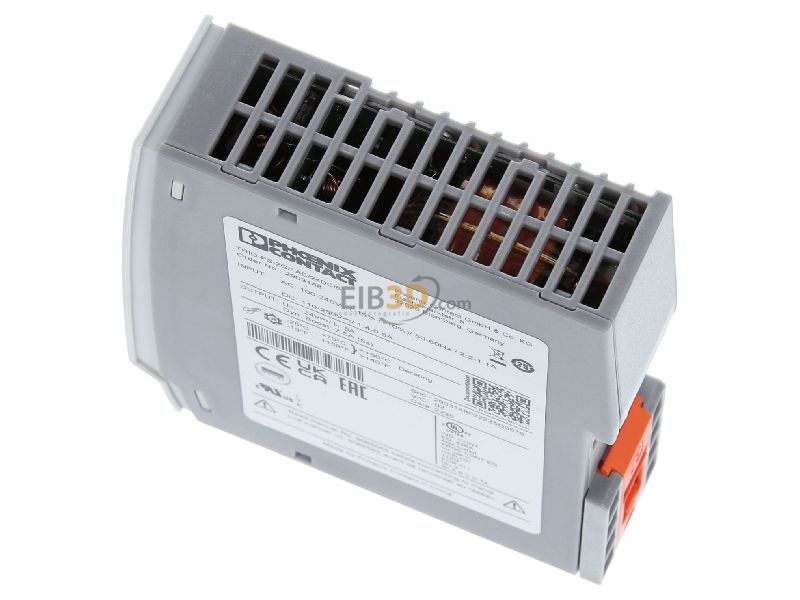

View top right Phoenix TRIOPS2G/1AC/24DC/5 DC-power supply 85...264V/24...28V 120W
View top right

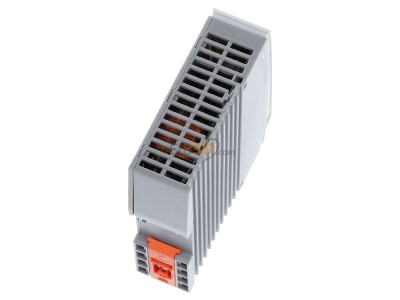

Top rear view Phoenix TRIOPS2G/1AC/24DC/5 DC-power supply 85...264V/24...28V 120W
Top rear view
