DC-power supply 85...264V/12V 36W STEP-PS/ 1AC/12DC/3

EAN/GTIN: 4046356309578
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: STEP-PS/ 1AC/12DC/3
Manufact.-SKU: 2868570
Customs tariff no.: 85044095
Similar top items: Show now & compare
63,62 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

DC-power supply 85...264V/12V 36W Voltage type of supply voltage AC/DC, 1st secondary output voltage 12 ... 12V, 2nd secondary output voltage 10 ... 16,5V, Max. output current 1 3A, Max. output current 2 3,3A, Max. output current 3 4,9A, Secondary voltage adjustable, Short-circuit-proof, Rated supply voltage at AC 50 Hz 85 ... 264V, Rated supply voltage at AC 60 Hz 85 ... 264V, Rated supply voltage at DC 95 ... 250V, Output voltage stabilized, Power consumption 0,3VA, Power output 36W, Stabilized, Type of electric connection Screw connection, Rail mounting possible, Suitable for DIN installation panels, Width in number of modular spacings 3, Built-in height 90mm, Width 54mm, Height 90mm, Depth 61mm, Suitable for safety functions, Degree of protection (IP) IP20

More product images:

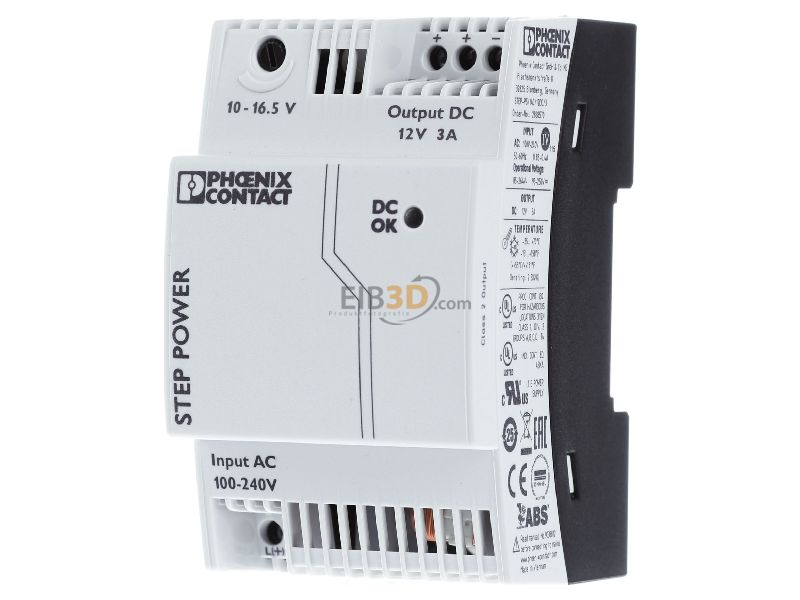

Front view Phoenix STEP-PS/ 1AC/12DC/3 DC-power supply 85...264V/12V 36W
Front view

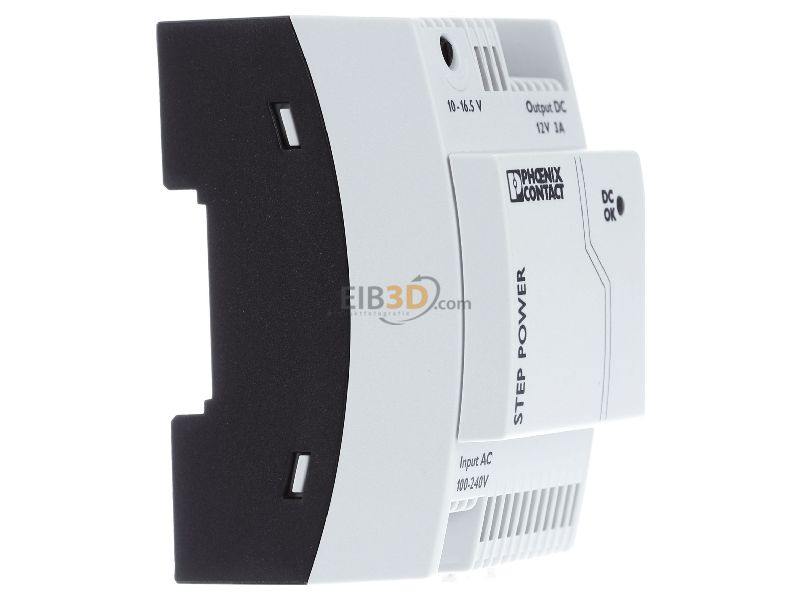

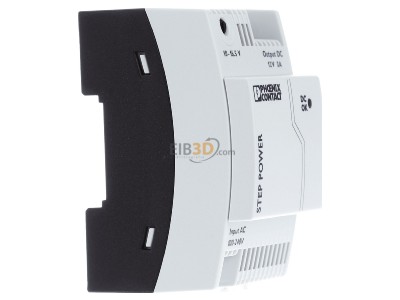

View on the left Phoenix STEP-PS/ 1AC/12DC/3 DC-power supply 85...264V/12V 36W
View on the left

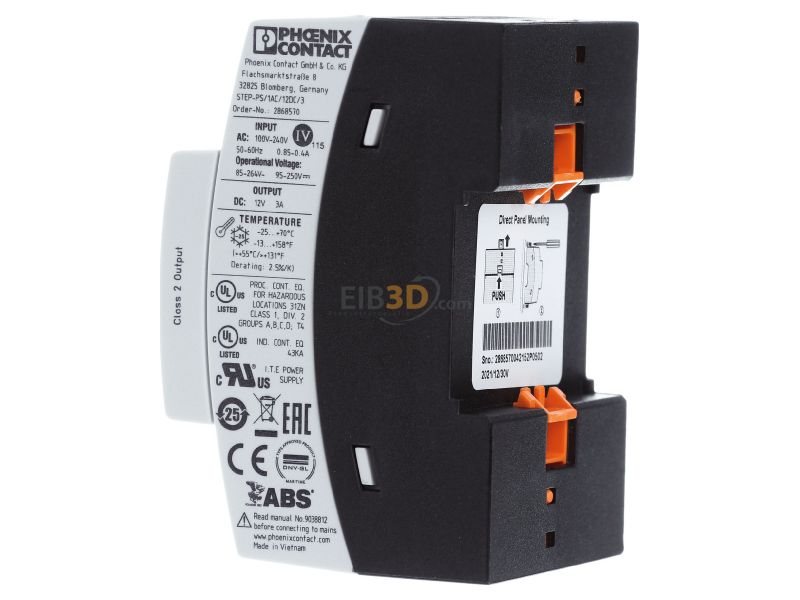

View on the right Phoenix STEP-PS/ 1AC/12DC/3 DC-power supply 85...264V/12V 36W
View on the right

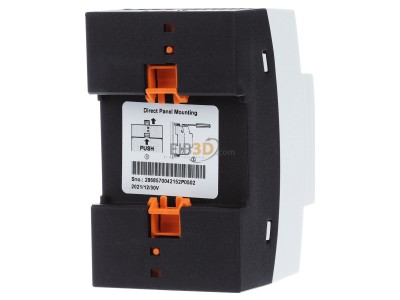

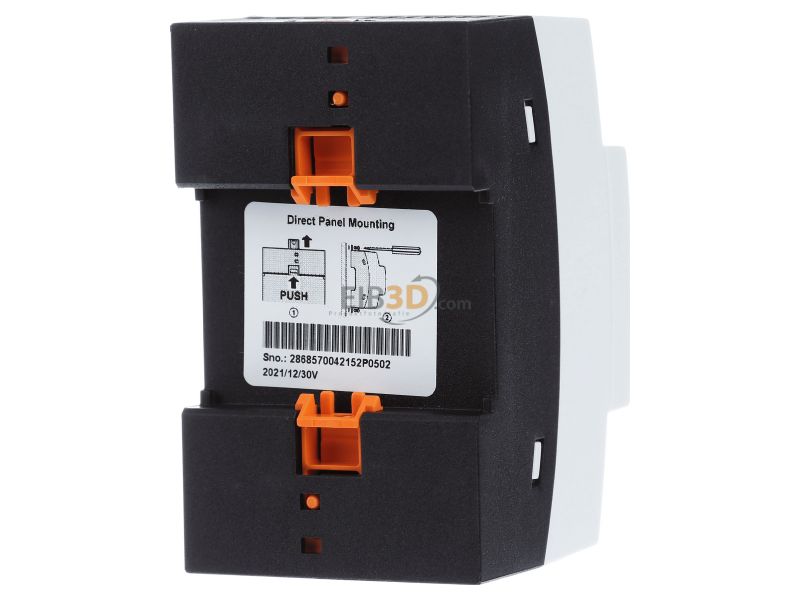

Back view Phoenix STEP-PS/ 1AC/12DC/3 DC-power supply 85...264V/12V 36W
Back view

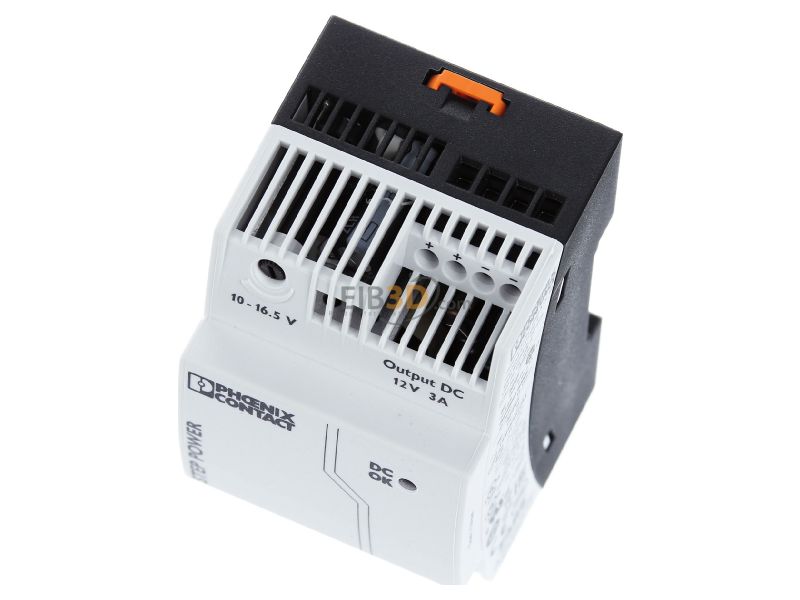

View up front Phoenix STEP-PS/ 1AC/12DC/3 DC-power supply 85...264V/12V 36W
View up front

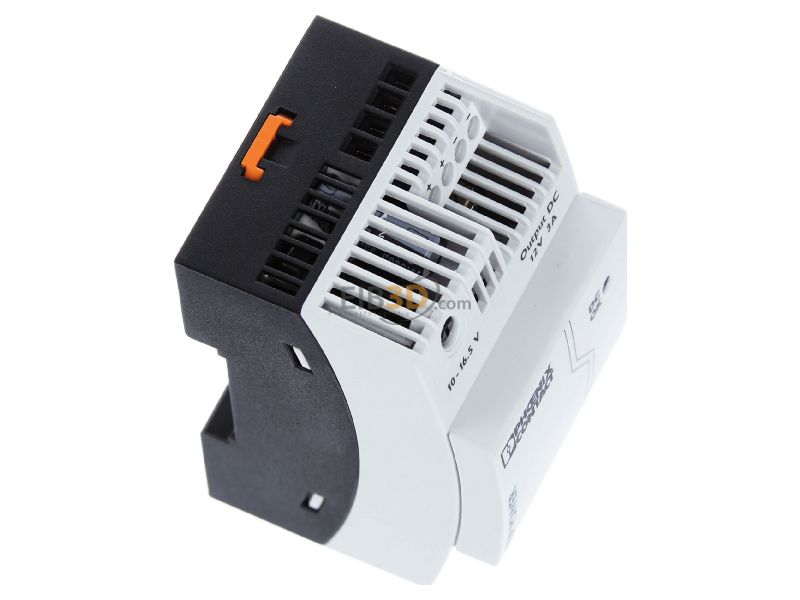

View top left Phoenix STEP-PS/ 1AC/12DC/3 DC-power supply 85...264V/12V 36W
View top left

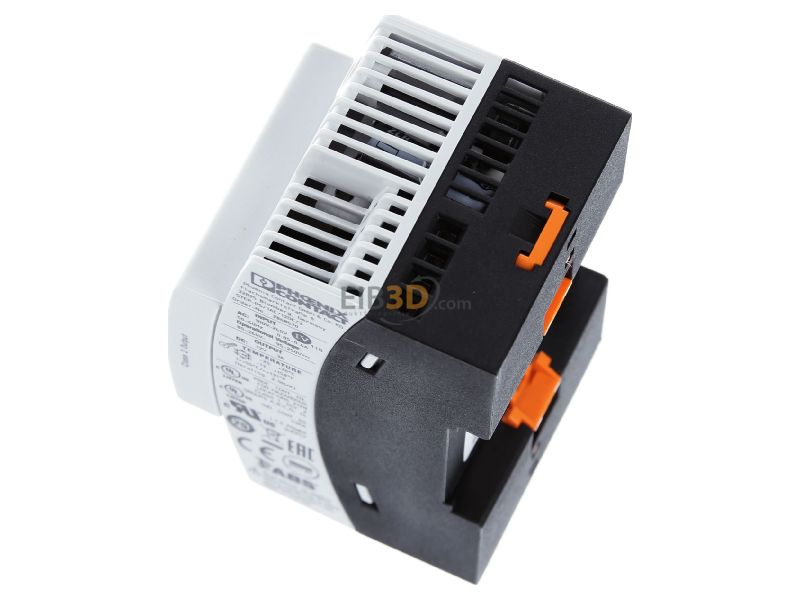

View top right Phoenix STEP-PS/ 1AC/12DC/3 DC-power supply 85...264V/12V 36W
View top right

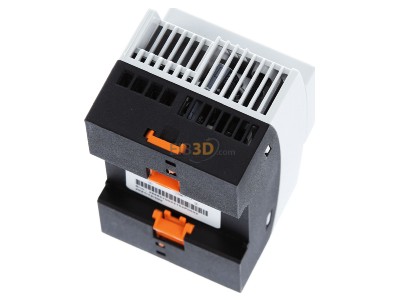

Top rear view Phoenix STEP-PS/ 1AC/12DC/3 DC-power supply 85...264V/12V 36W
Top rear view
