Source photo: www.EIB3D.com

Socket insert for connector 5p VC-TFS 5/1M-PEA

EAN/GTIN: 4017918969165
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: VC-TFS 5/1M-PEA
Manufact.-SKU: 1607502
Customs tariff no.: 85366990
Order level:
(minimum)
5 pce
Similar top items: Show now & compare
68,85 EUR Price incl. tax. 19,00%
(for 5 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 5 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Socket insert for connector 5p Contact type Socket, Number of poles 5, Material connector of connector insert Thermoplastic, Rated current In 70A, Ambient temperature -40 ... 100°C, Rated voltage 690V, Rated surge voltage 6kV, Over voltage category III, Pollution degree 3, Type of electric connection Screw connection, Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 16mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 0,5mm², Connectable conductor cross section solid-core 0,5 ... 16mm², Connectable conductor cross section multi-wired 0,5 ... 16mm², Material of contact surface Brass, Material contact Brass, Inflammability class of insulation material acc. with UL94 V0, With protective conductor

More product images:

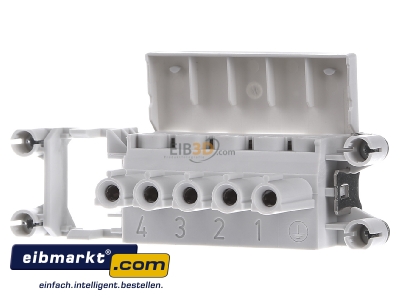

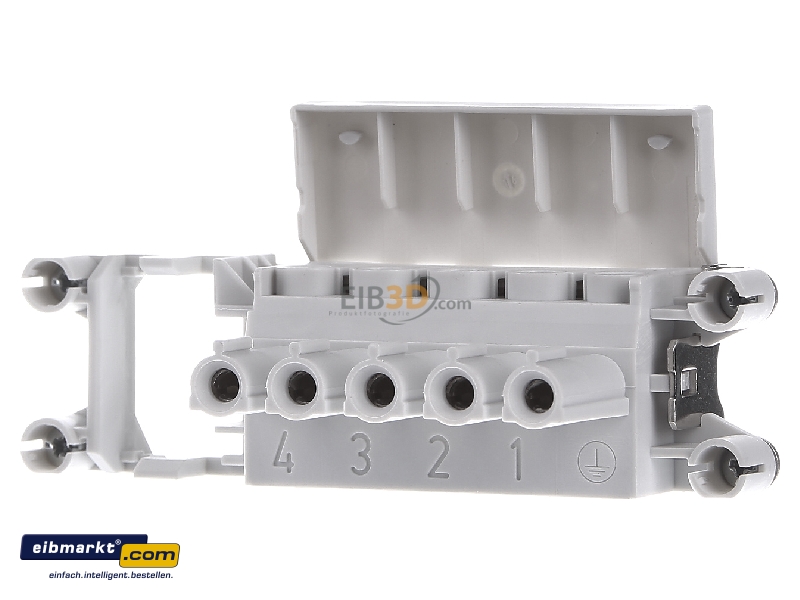

Front view Phoenix Contact 1607502 Socket insert for connector 5p
Front view

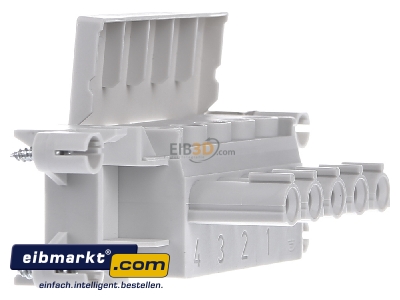

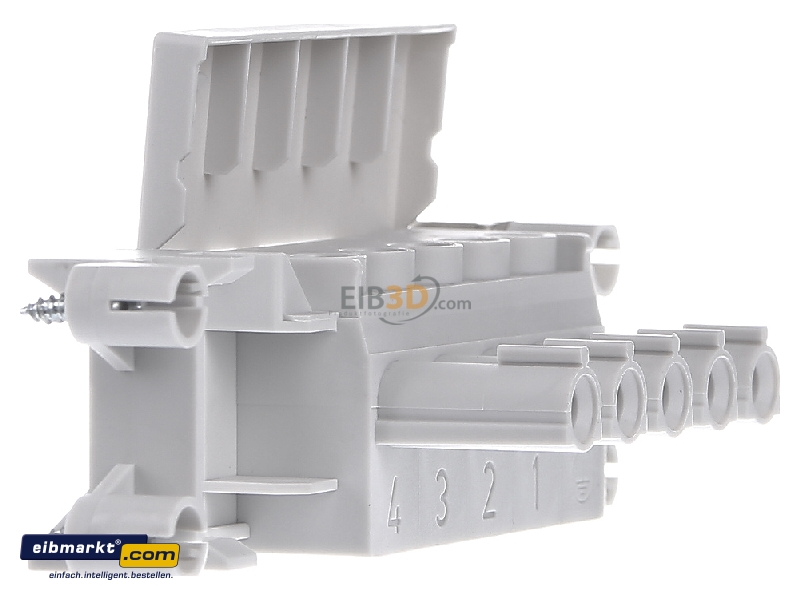

View on the left Phoenix Contact 1607502 Socket insert for connector 5p
View on the left

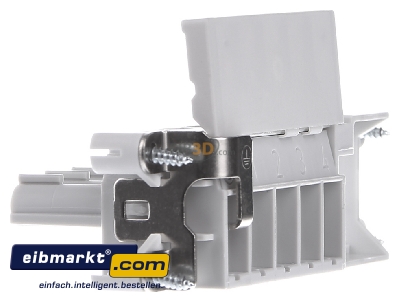

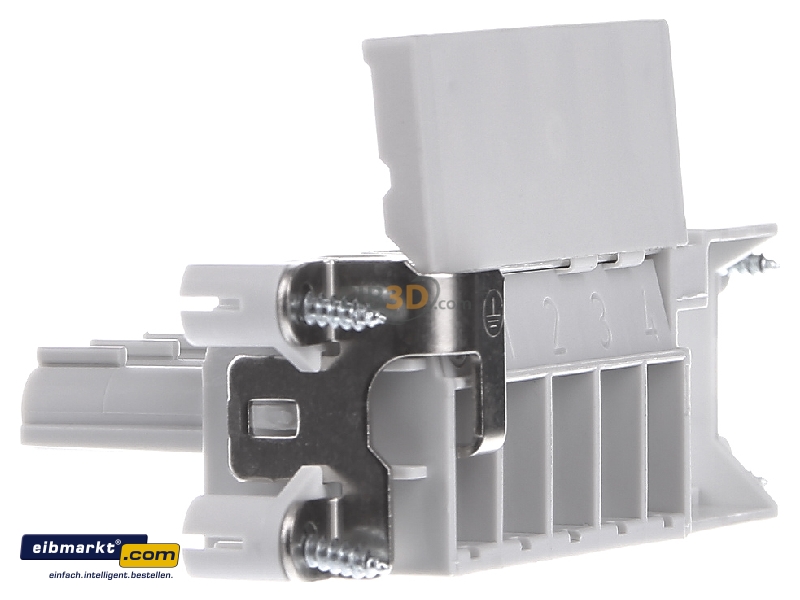

View on the right Phoenix Contact 1607502 Socket insert for connector 5p
View on the right

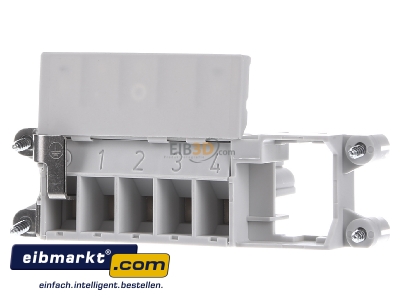

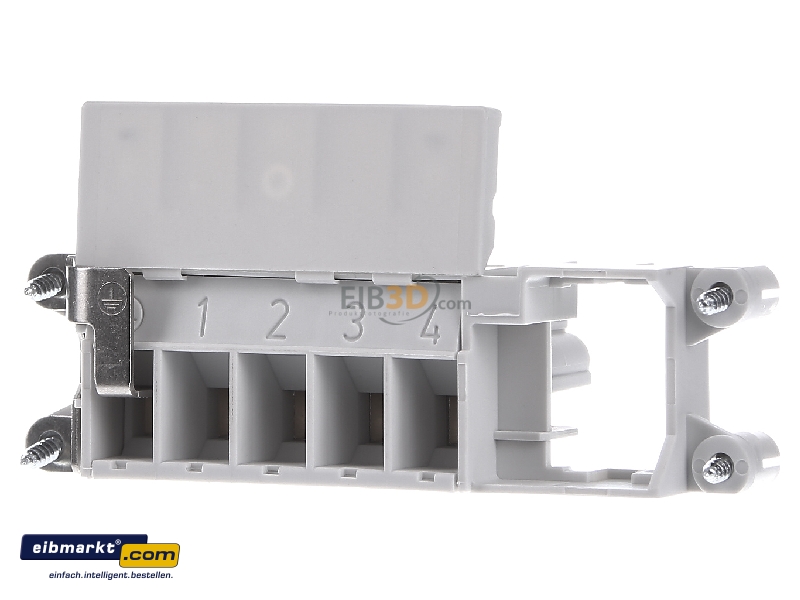

Back view Phoenix Contact 1607502 Socket insert for connector 5p
Back view

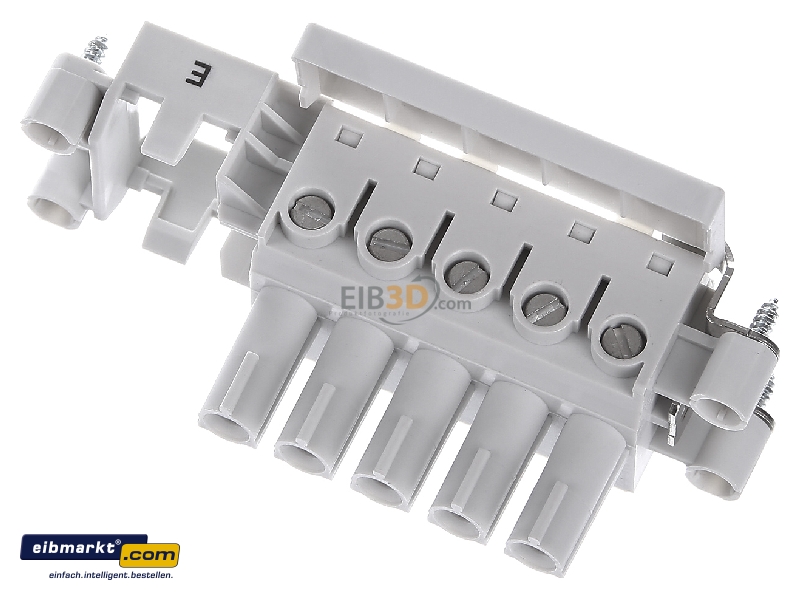

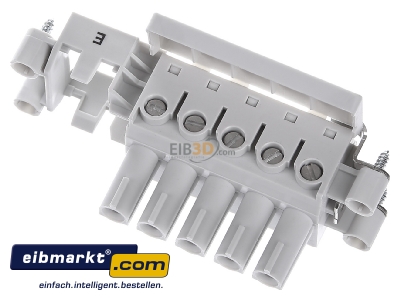

View up front Phoenix Contact 1607502 Socket insert for connector 5p
View up front

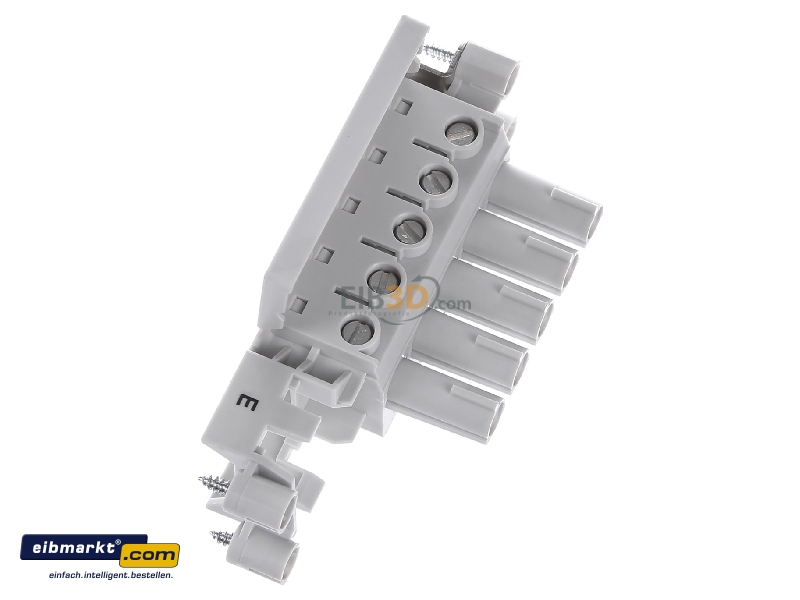

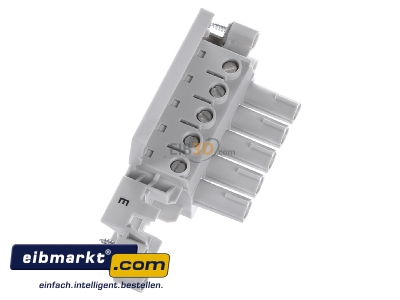

View top left Phoenix Contact 1607502 Socket insert for connector 5p
View top left

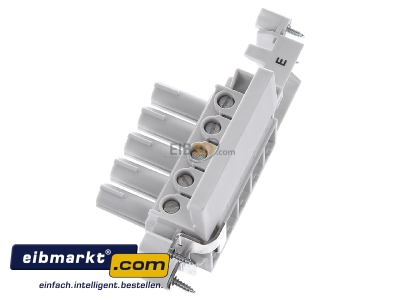

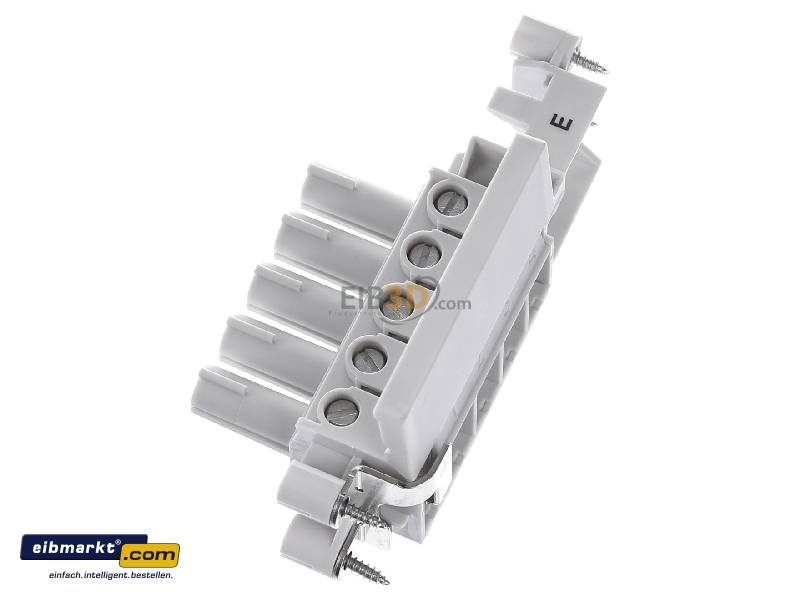

View top right Phoenix Contact 1607502 Socket insert for connector 5p
View top right

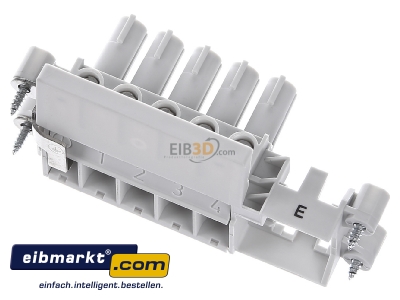

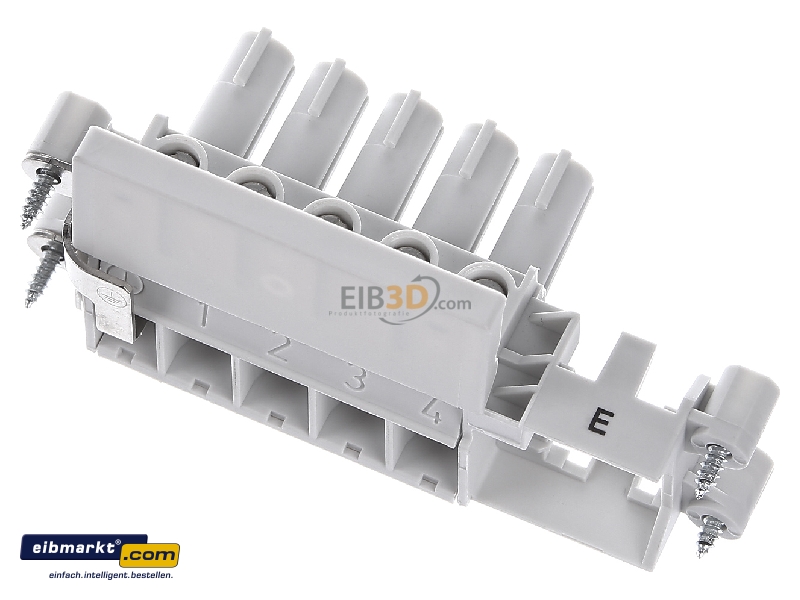

Top rear view Phoenix Contact 1607502 Socket insert for connector 5p
Top rear view
