Wall- /ceiling bracket for cable tray BSSU 190 1010 FS
Source photo:
OBO
(fig. might be different or similar)

Wall- /ceiling bracket for cable tray BSSU 190 1010 FS

EAN/GTIN: 4012197332426
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: BSSU 190 1010 FS
Manufact.-SKU: 6044390
Customs tariff no.: 73089059
Similar top items: Show now & compare
18,00 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Symmetrical floor support up to width 100 BSSU 190 1010 FS Suitable for cable support system width 100 ... 100mm, other version, suitable for cable tray, screw-in tray fastening, material steel, surface protection strip galvanized, lower part of the symmetrical floor support for the BKRS system, suitable for traverse type BSST 100 Can be used for walkable cable trays width 100 mm. With threaded passages for mounting connecting components, e.g. B. pipe clamps, as well as with slots for floor mounting up to M10. Fastening material must be ordered separately.

More product images:

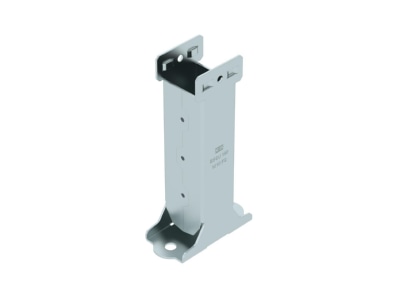

Product image OBO BSSU 190 1010 FS Wall   ceiling bracket for cable tray
Product image

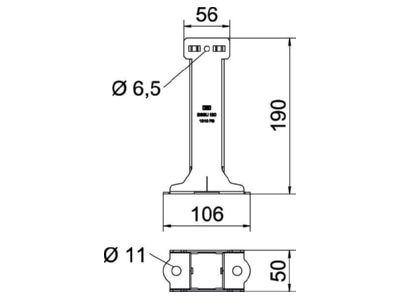

Dimensional drawing OBO BSSU 190 1010 FS Wall   ceiling bracket for cable tray
Dimensional drawing
