Flush mounted mounted box D=60mm UG 66-LKG
Source photo:
OBO
(fig. might be different or similar)

Flush mounted mounted box D=60mm UG 66-LKG

EAN/GTIN: 4012197281182
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: UG 66-LKG
Manufact.-SKU: 2003712
Customs tariff no.: 39259080
Order level:
(minimum)
250 pce
Similar top items: Show now & compare
41,07 EUR Price incl. tax. 19,00%
(for 250 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 250 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

UP device box UG 66-LKG Installation type flush-mounted, round shape, device junction box/box design, single version, diameter 60mm, depth 66 ... 66mm, fastening of the devices with screws or spreads, housing feedthrough through knockout opening, for pipe diameter 20/25 mm , entry from the rear, number of entries 11, halogen-free, surface protection untreated, protection class (IP) IP30, screwed cover fastening, flush-mounted device box for use in masonry with an installation depth of at least 66 mm. • 4 x 3 screw domes • Connection socket with bayonet lock that can be coupled on both sides • 6 combination pipe entries Ø 20 and 25 mm • 4 entries up to Ø 20 mm • 2 entries up to Ø 14 mm • 1 entry up to Ø 20 mm in the floor

More product images:

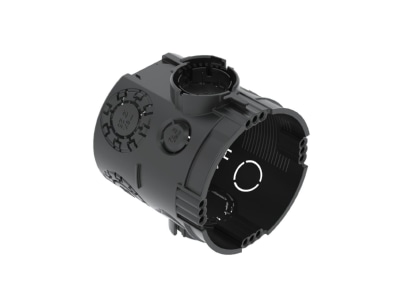

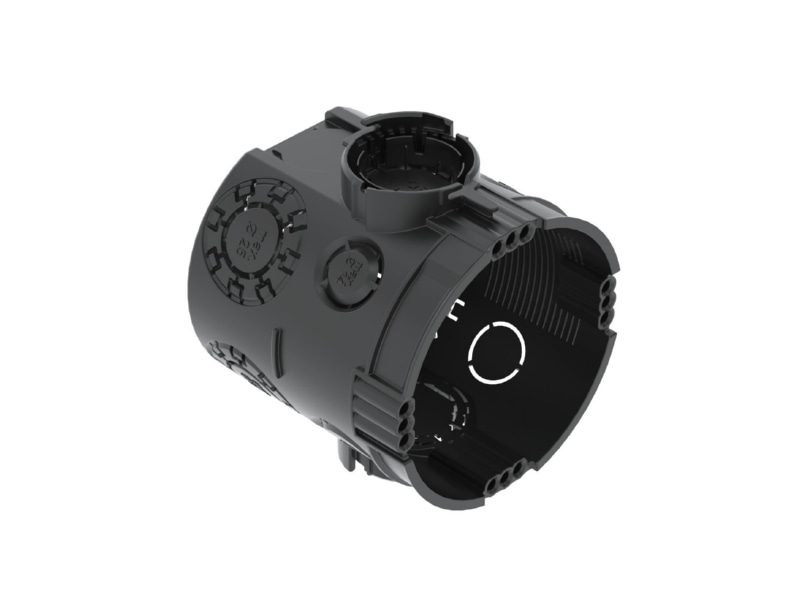

Product image OBO UG 66 LKG Flush mounted mounted box D 60mm
Product image

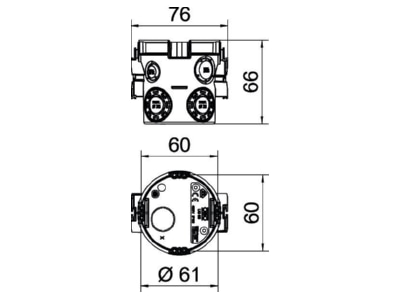

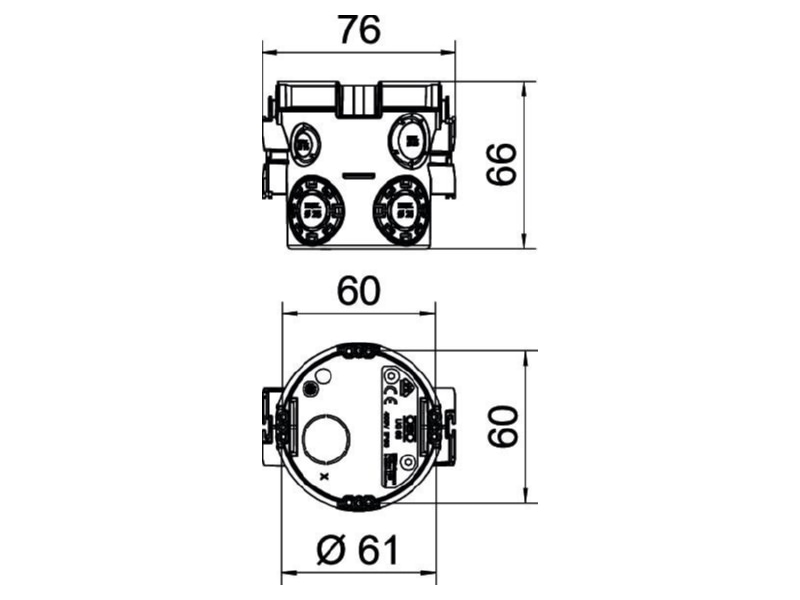

Dimensional drawing OBO UG 66 LKG Flush mounted mounted box D 60mm
Dimensional drawing
