Flush mounted mounted box D=60mm UG 46-LKG
Source photo:
OBO
(fig. might be different or similar)

Flush mounted mounted box D=60mm UG 46-LKG

EAN/GTIN: 4012197281168
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: UG 46-LKG
Manufact.-SKU: 2003711
Customs tariff no.: 39259080
Order level:
(minimum)
350 pce
Similar top items: Show now & compare
39,97 EUR Price incl. tax. 19,00%
(for 350 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 350 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

UP device box UG 46-LKG Installation type flush-mounted, round shape, device junction box/box design, single version, equipment without, diameter 60mm, depth 46 ... 46mm, fastening of the devices with screws or spreads, for pipe diameters 20/25 mm, Entry from the rear, number of entries 7, surface protection untreated, protection class (IP) IP30, flush-mounted device box for use in masonry with an installation depth of at least 46 mm. • 4 x 3 screw domes • Connection piece with bayonet lock that can be coupled on both sides • 6 combination pipe entries Ø 20 and 25 mm • 1 entry up to Ø 20 mm in the floor

More product images:

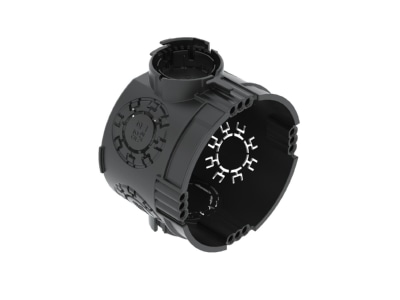

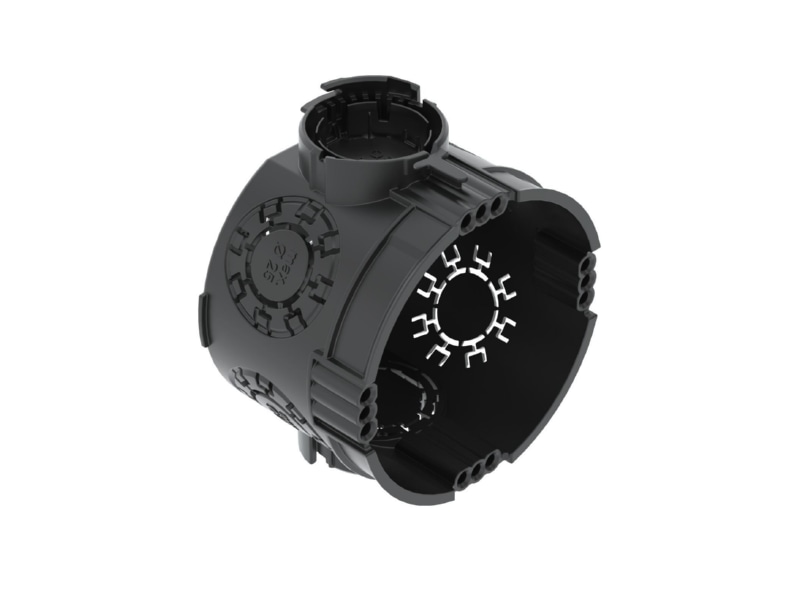

Product image OBO UG 46 LKG Flush mounted mounted box D 60mm
Product image

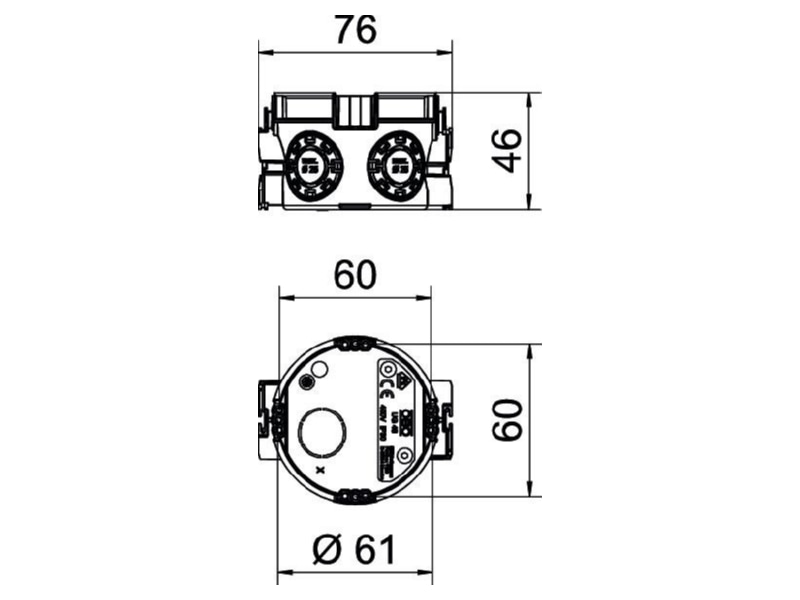

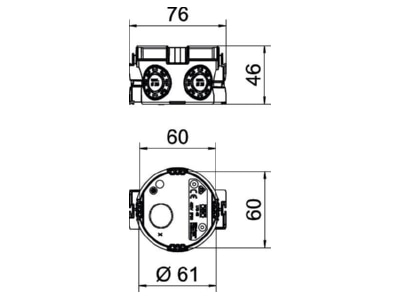

Dimensional drawing OBO UG 46 LKG Flush mounted mounted box D 60mm
Dimensional drawing
