Surge protection device 230V 2-pole ÜSS 45-O-RW
Source photo:
OBO
(fig. might be different or similar)

Surge protection device 230V 2-pole ÜSS 45-O-RW

EAN/GTIN: 4012196117673
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: ÜSS 45-O-RW
Manufact.-SKU: 6117473
Customs tariff no.: 85381000
Similar top items: Show now & compare
81,94 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
12 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Nominal voltage AC=230 V, Max. continuous voltage AC=255 V, Max. continuous voltage DC=255 V, Nominal load current=16 A, Nominal discharge surge current (8/20) (L-N)=2,5 kA, Total discharge current (8/20) (L+N-PE)=5 kA, Voltage protection level=1,5 kV, Voltage protection level L-N=1,5 kV, Number of poles=2, Mounting method=Other, With remote signalling contact=no, Signalling at the device=Optic, Category type 3=yes, With interference suppressor filter=no, Degree of protection (IP)=IP20

More product images:

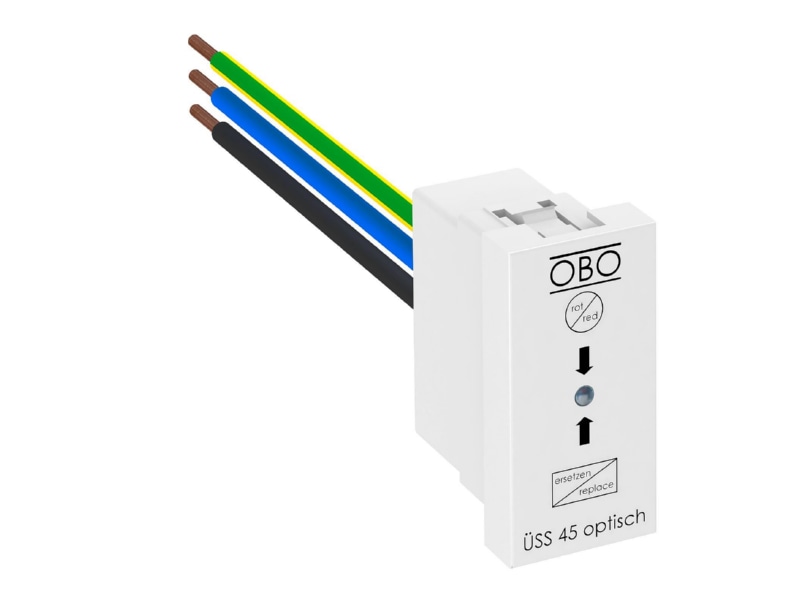

Product image OBO UeSS 45 O RW Surge protection device 230V 2 pole
Product image

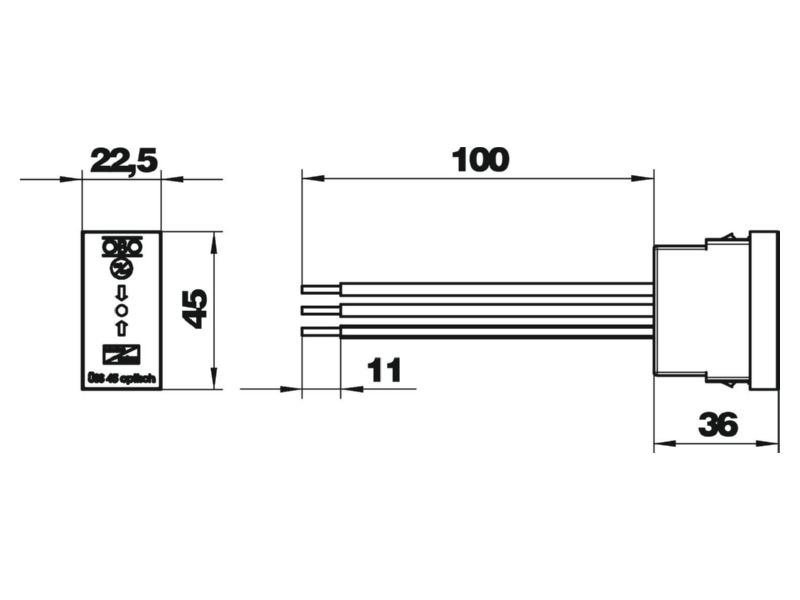

Dimensional drawing 1 OBO UeSS 45 O RW Surge protection device 230V 2 pole
Dimensional drawing 1

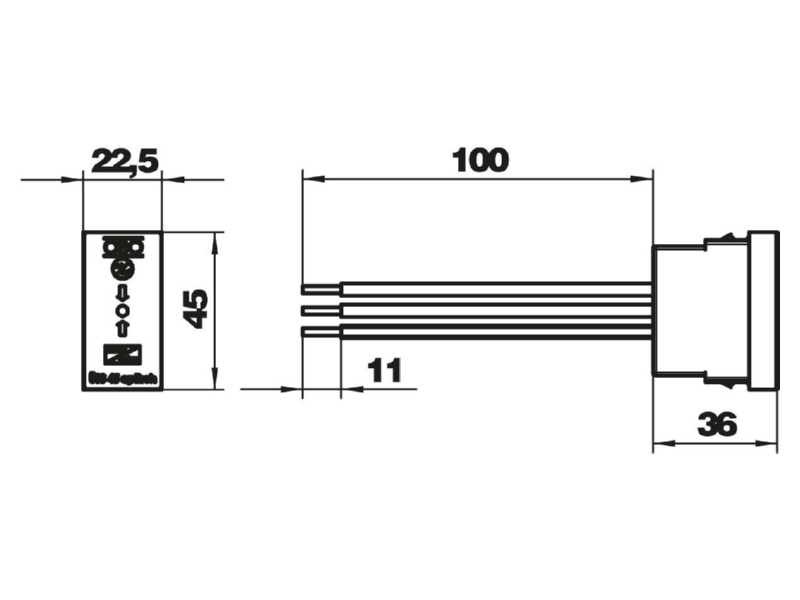

Dimensional drawing 2 OBO UeSS 45 O RW Surge protection device 230V 2 pole
Dimensional drawing 2
