Surface mounted box 125x100mm A 18 HF RO
Source photo:
OBO
(fig. might be different or similar)

Surface mounted box 125x100mm A 18 HF RO

EAN/GTIN: 4012195917151
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: A 18 HF RO
Manufact.-SKU: 2000418
Customs tariff no.: 39269097
Order level:
(minimum)
10 pce
Similar top items: Show now & compare
77,06 EUR Price incl. tax. 19,00%
(for 10 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 10 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Max. conductor cross section=2,5 mm², Equipped with=None, Shape=Square, Mounting method=Wall-/ceiling mounting, Inlet from the rear=no, Length=125 mm, Width=100 mm, Depth=40 mm, Tackable=no, Number of inlets=18, Type of housing feed-through=Preembossing, Material=Plastic, Halogen free=yes, Surface protection=Untreated, Colour=Red, Degree of protection (IP)=IP55, Cover attachment=Snapped on, Sealable=no, Rated insulation voltage Ui=690 V, Circuit integrity=None, With screening=no, Weatherproof=no, Operating temperature=-5..45 °C, Explosion-tested version=no, For Ex-zone gas=None, For Ex-Zone dust=None

More product images:

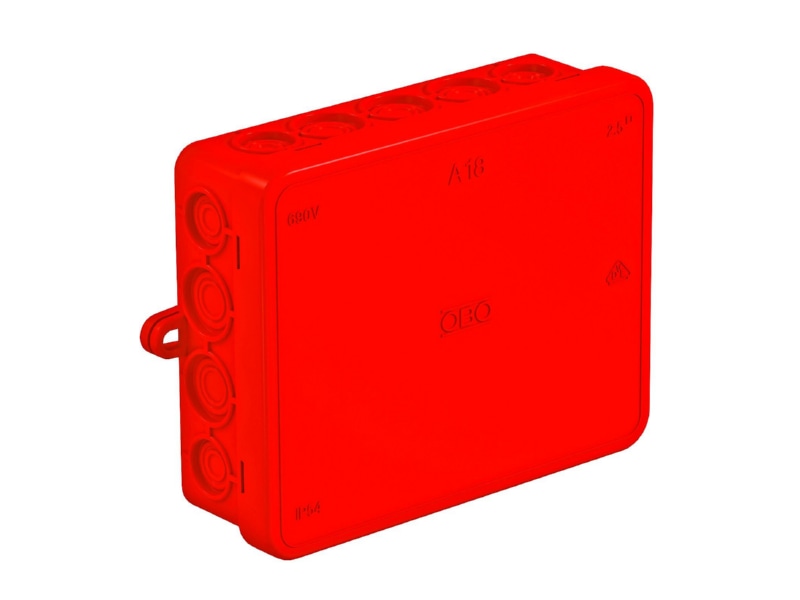

Product image OBO A 18 HF RO Surface mounted box 125x100mm
Product image

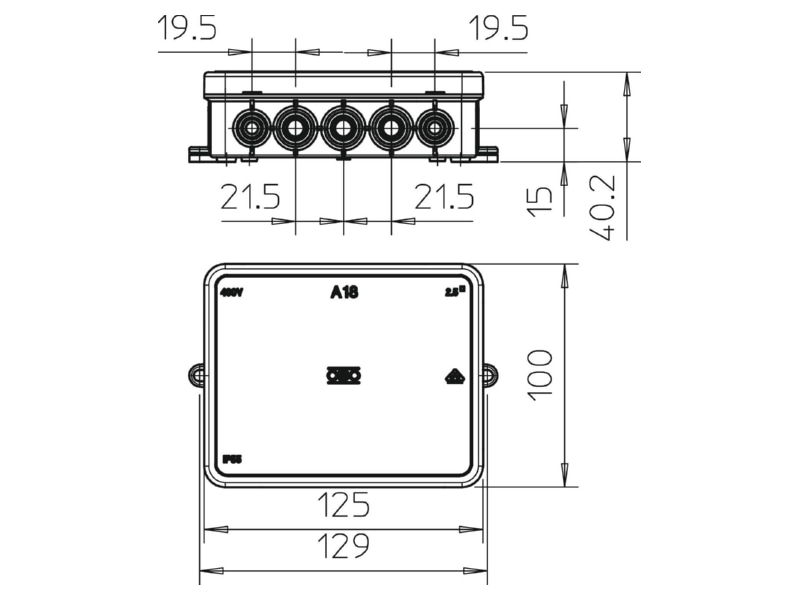

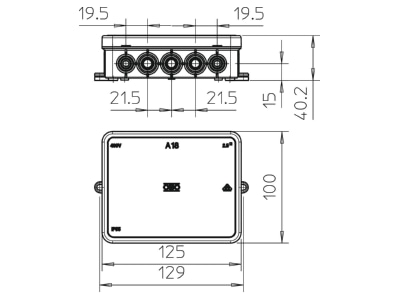

Dimensional drawing 1 OBO A 18 HF RO Surface mounted box 125x100mm
Dimensional drawing 1

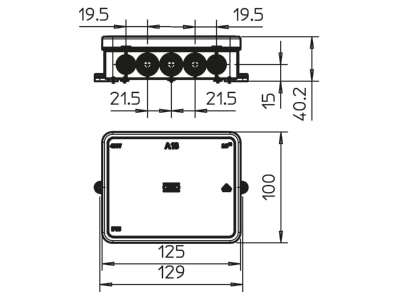

Dimensional drawing 2 OBO A 18 HF RO Surface mounted box 125x100mm
Dimensional drawing 2
