Manufacturer:
Niedax

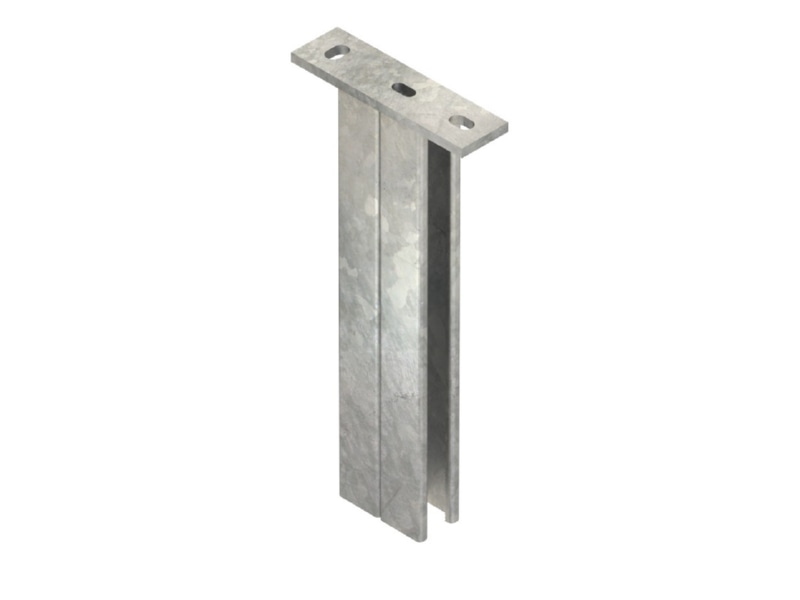

Ceiling profile for cable tray 1508mm HKC 96ZD/1500 F

EAN/GTIN: 4013339210398
Manufacturer: Niedax
Manufacturer no.: HKC 96ZD/1500 F
Customs tariff no.: 73089059
Similar top items: Show now & compare
200,96 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

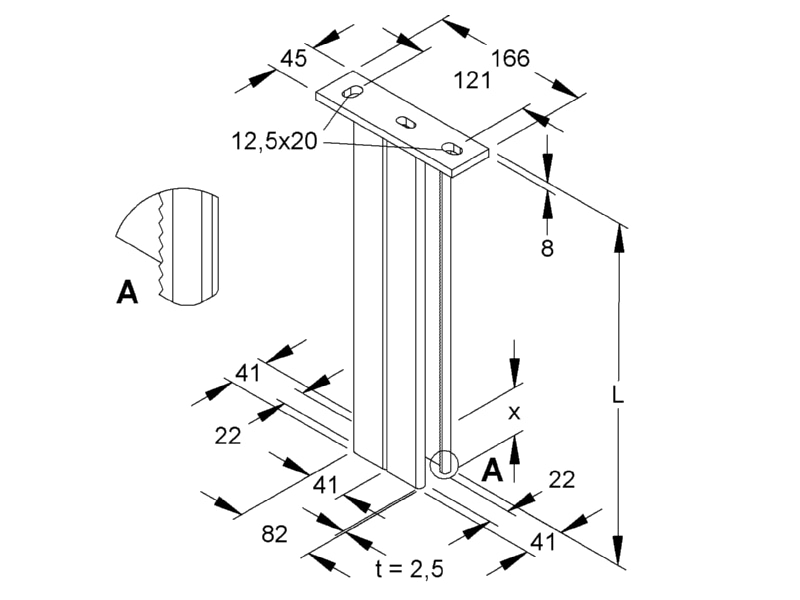

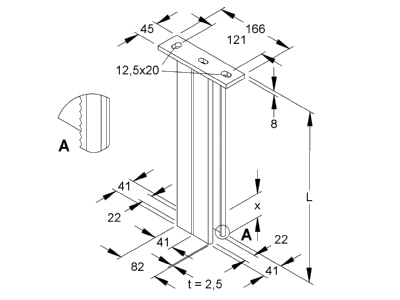

Hanging handle HKC 96ZD/1500 F length 1508mm, profile width 41mm, profile height 82mm, version C-profile double-sided, load capacity 1.8kN, material steel, material quality other, surface protection hot-dip galvanized, weight 9.152kg, hanging handle STRUT, heavy version, with welded head plate, C -Profiles, unperforated, system HKC 96ZD/..., for STRUT bracket HKC 96Z/..., for one- and both-sided installation (horizontally at the same height or offset in height). For static reasons and to enable problem-free placement of the protective cap, the boom must be mounted above the end of the hanging bracket at a distance of x=30 mm (bottom edge of the boom to the end of the hanging bracket). Use for: boom HKC 96Z/... = 650 mm length dimensions (approx. dimensions) head plate L x W xd: 166 x 45 x 8 mm mounting holes: 12.5 x 20 mm central distance: 121 mm double C-profile: 41 x 82 mm Slot widths: 22 mm Total length L including head plate: 1508 mm Material: Steel, hot-dip galvanized according to DIN EN ISO 1461
