Source photo: www.EIB3D.com

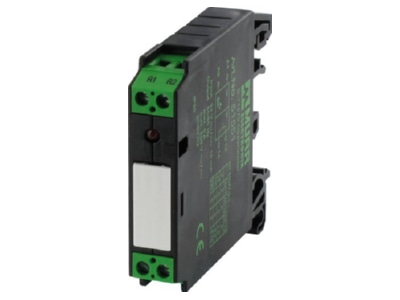

Switching relay AC 24V DC 24V 51551

EAN/GTIN: 4048879027496
WEEE: DE 20188891
Manufacturer: Murrelektronik
Manufacturer no.: 51551
Customs tariff no.: 85364900
Similar top items: Show now & compare
24,63 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

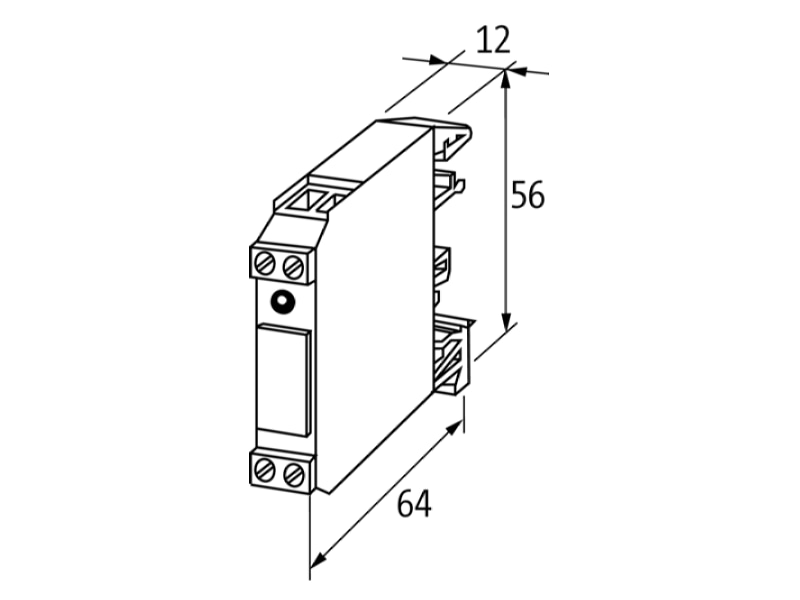

Switching relay AC 24V DC 24V Type of electric connection Screw connection, Rated control supply voltage Us at AC 50HZ 24 ... 24V, Rated control supply voltage Us at AC 60HZ 24 ... 24V, Rated control supply voltage Us at DC 24 ... 24V, Voltage type for actuating AC/DC, Drive, polarization Polarized, Number of contacts as normally closed contact 0, Number of contacts as normally open contact 1, Number of contacts as change-over contact 0, Complete with socket, Width 12mm, Height 56mm, Depth 64mm

More product images:

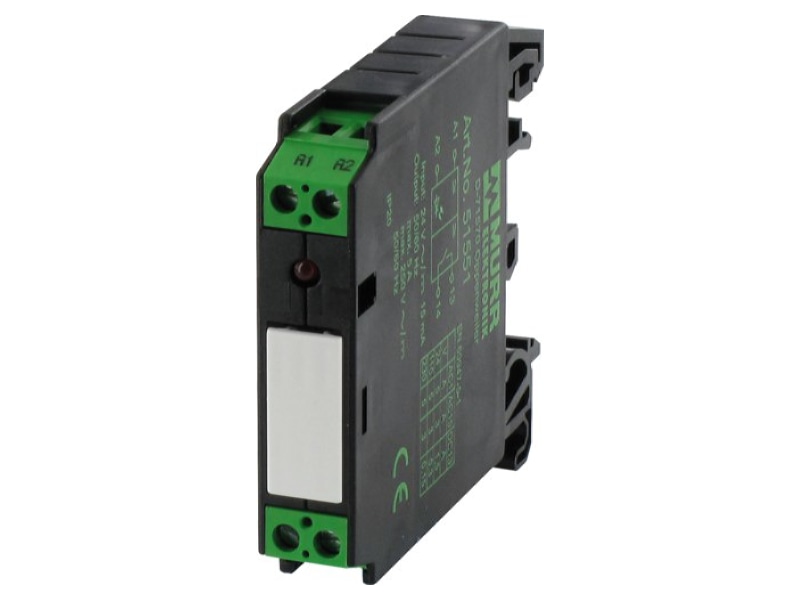

Front view Murrelektronik 51551 Switching relay AC 24V DC 24V -
Front view
View on the left Murrelektronik 51551 Switching relay AC 24V DC 24V -
View on the left
View on the right Murrelektronik 51551 Switching relay AC 24V DC 24V -
View on the right
Back view Murrelektronik 51551 Switching relay AC 24V DC 24V -
Back view
View up front Murrelektronik 51551 Switching relay AC 24V DC 24V -
View up front
View top left Murrelektronik 51551 Switching relay AC 24V DC 24V -
View top left
View top right Murrelektronik 51551 Switching relay AC 24V DC 24V -
View top right
Top rear view Murrelektronik 51551 Switching relay AC 24V DC 24V -
Top rear view
