Ventilator for in-house bathrooms ER 60 F
Source photo:
Maico
(fig. might be different or similar)

Ventilator for in-house bathrooms ER 60 F

EAN/GTIN: 4012799841029
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: ER 60 F
Manufact.-SKU: 0084.0102
Customs tariff no.: 84145100
Similar top items: Show now & compare
258,55 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Ventilator for in-house bathrooms Nominal width 60mm, Flow rate 62m³/h, Colour White, Air handling temperature -20 ... 40°C, Mounting method Flush mounted (plaster), Rated voltage 230V, Mains frequency 50Hz, Assembly arrangement With twilight switch delayed, Nominal current 0,16A, Rotational speed 12501/min, Material housing Plastic, Degree of protection (IP) Other, Width 250mm, Height 260mm, Depth 150mm

More product images:

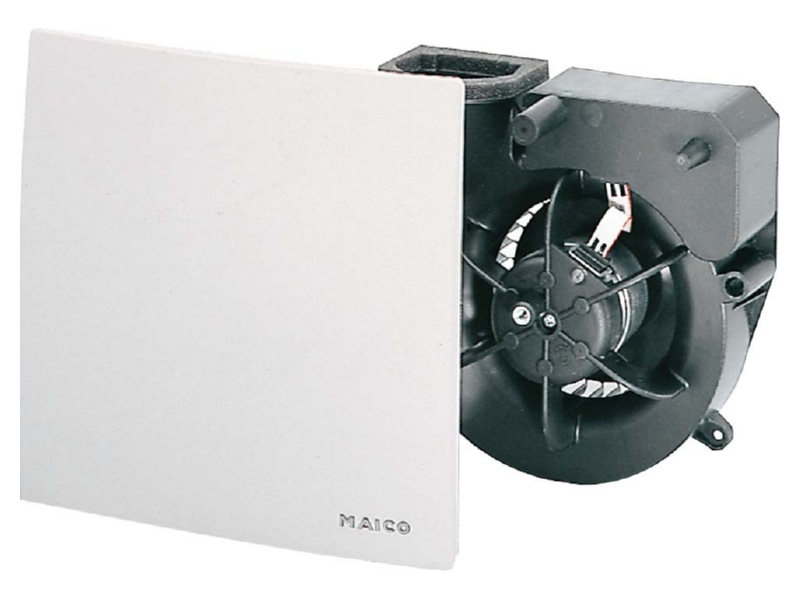

Product image 1 Maico ER 60 F Ventilator for in house bathrooms
Product image 1

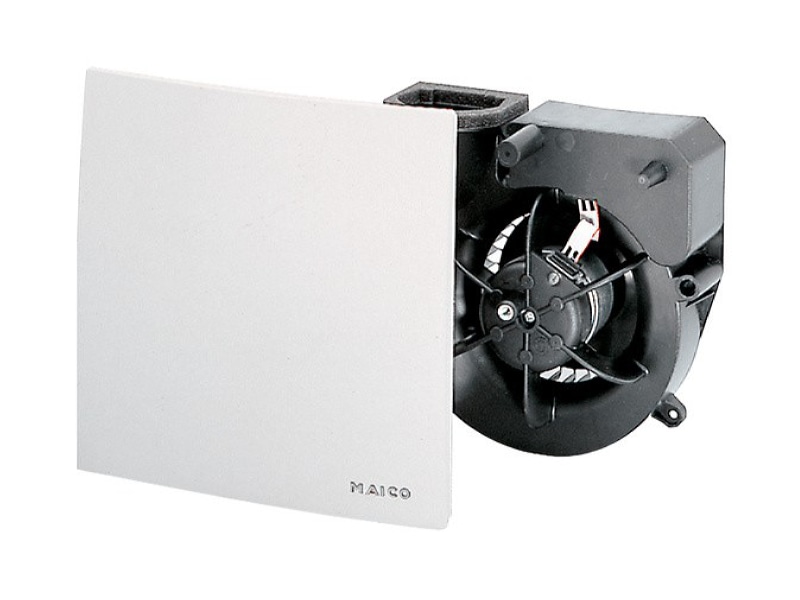

Product image 2 Maico ER 60 F Ventilator for in house bathrooms
Product image 2

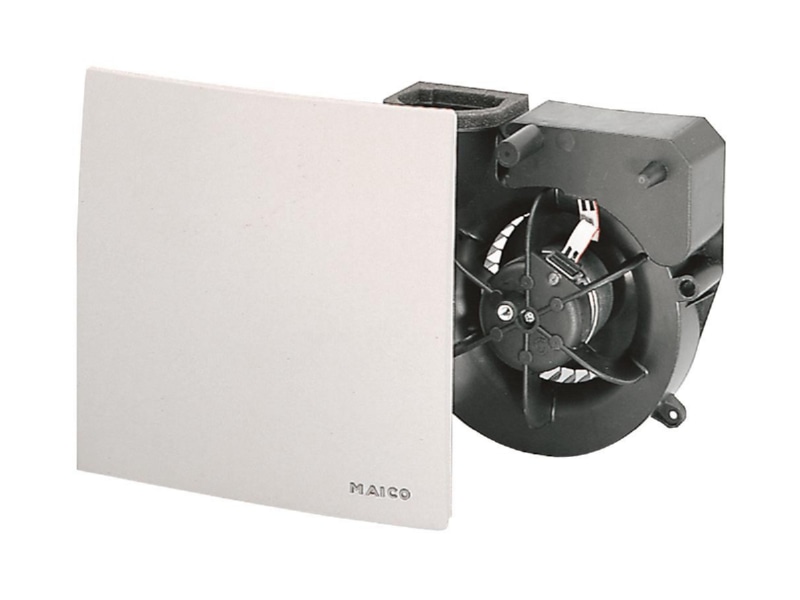

Product image 3 Maico ER 60 F Ventilator for in house bathrooms
Product image 3

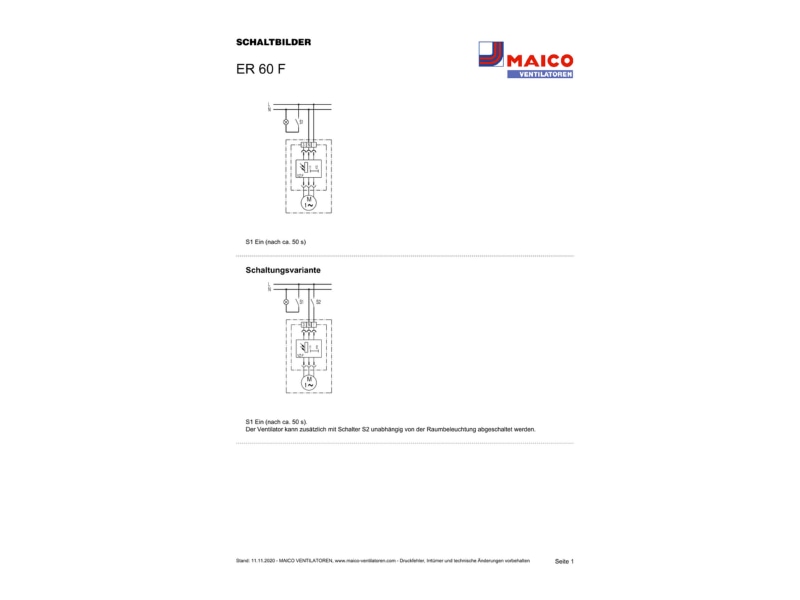

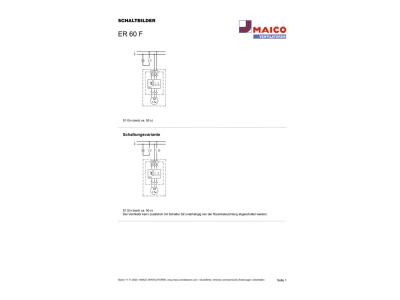

Circuit diagram Maico ER 60 F Ventilator for in house bathrooms
Circuit diagram

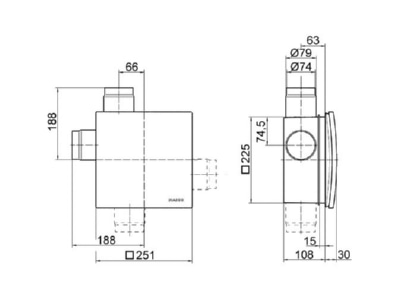

Dimensional drawing 1 Maico ER 60 F Ventilator for in house bathrooms
Dimensional drawing 1

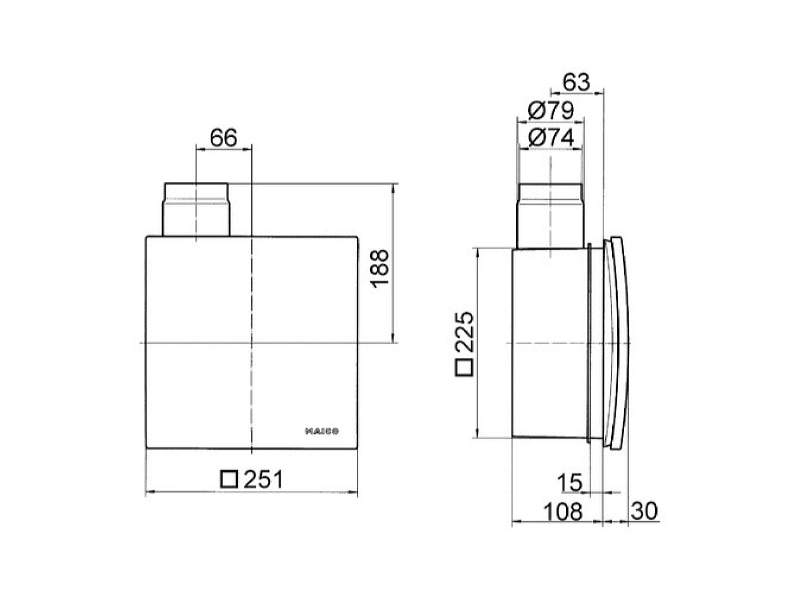

Dimensional drawing 2 Maico ER 60 F Ventilator for in house bathrooms
Dimensional drawing 2
