Sound absorber rectangular air duct RSKI 90/1000
Source photo:
Maico
(fig. might be different or similar)

Sound absorber rectangular air duct RSKI 90/1000

EAN/GTIN: 4012799731184
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: RSKI 90/1000
Manufact.-SKU: 0073.0118
Customs tariff no.: 84879090
Similar top items: Show now & compare
2.134,00 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pipe silencer length 900, NW 900 RSKI 90/1000 material other, nominal width duct 900mm, nominal height duct 900mm, length 900mm, connection 1 other, connection 2 other, link thickness 50mm, attenuation 63 Hz 2dB, attenuation 125 Hz 4dB, attenuation 250 Hz 8dB, Damping 500 Hz 15dB, damping 1000 Hz 16dB, damping 2000 Hz 11dB, damping 4000 Hz 8dB, damping 8000 Hz 7dB, processing backdrops Other, max. Medium temperature (continuous operation) 150 ° C, cylindrical ripe silencer for air -technical systems. Version with backdrop for greater noise reduction. The interior of the silencer is made of perforated sheet metal. Operating temperature between -40 °C and +150 °C.Item: RSKI 90/1000, installation location: fan, material: steel, galvanized, color: silver, weight: 130 kg, weight with packaging: 130 kg, width: 1100 mm, Height: 1100 mm, Depth: 900 mm, Width with packaging: 1100 mm, Height with packaging: 1100 mm, Depth with packaging: 900 mm

More product images:

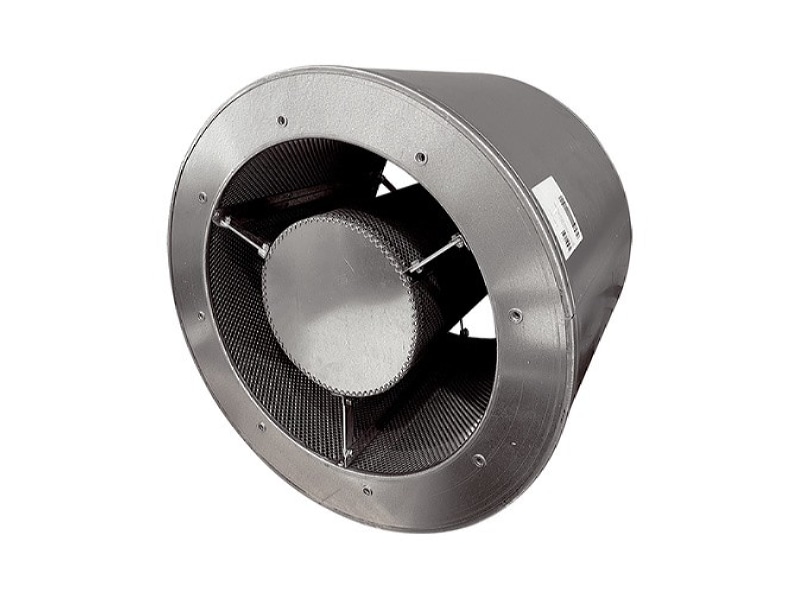

Product image 1 Maico RSKI 90 1000 Sound absorber rectangular air duct
Product image 1

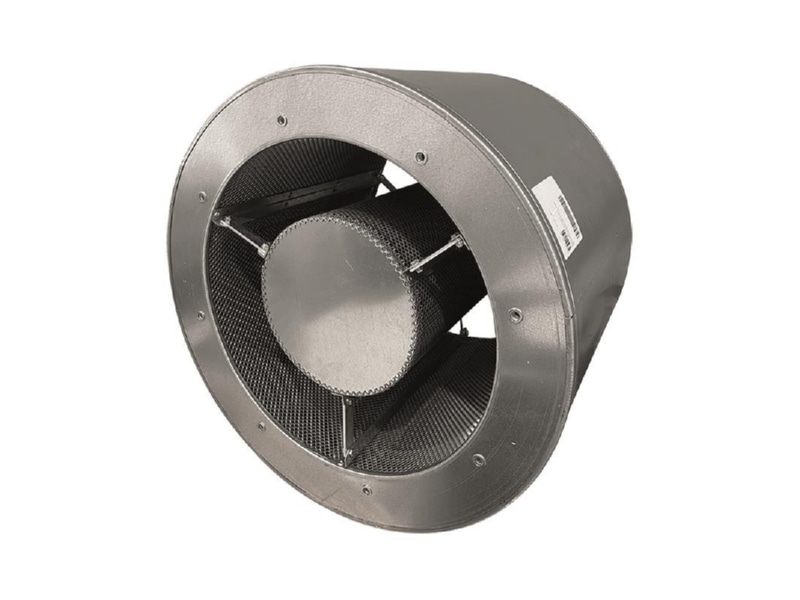

Product image 2 Maico RSKI 90 1000 Sound absorber rectangular air duct
Product image 2

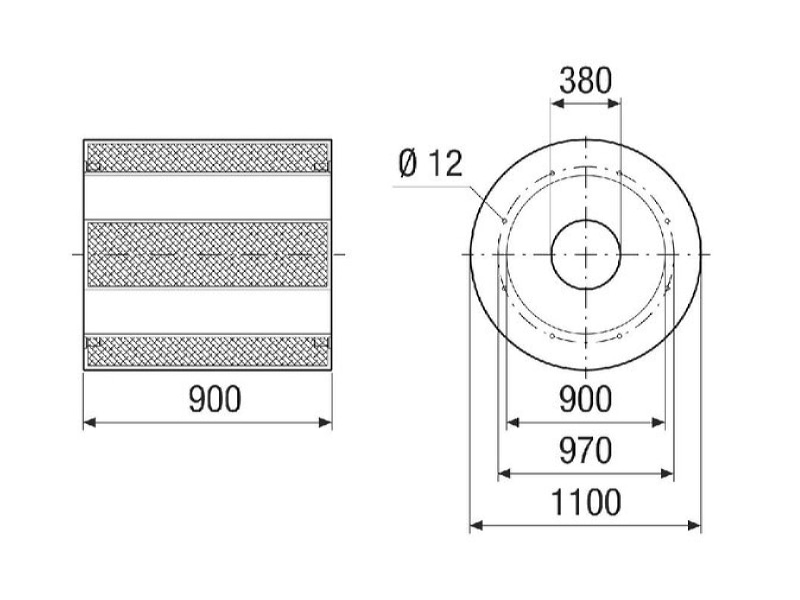

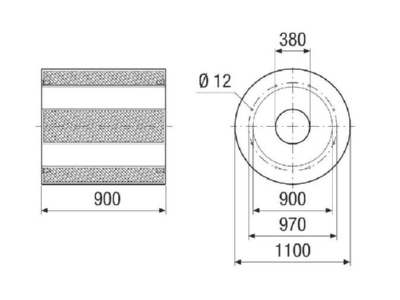

Dimensional drawing Maico RSKI 90 1000 Sound absorber rectangular air duct
Dimensional drawing
