Sound absorber rectangular air duct RSKI 80/1500
Source photo:
Maico
(fig. might be different or similar)

Sound absorber rectangular air duct RSKI 80/1500

EAN/GTIN: 4012799731160
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: RSKI 80/1500
Manufact.-SKU: 0073.0116
Customs tariff no.: 84879090
Similar top items: Show now & compare
2.097,66 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pipe silencer length 1200, NW 800 RSKI 80/1500 material other, nominal width duct 800mm, nominal height duct 1200mm, length 1200mm, connection 1 other, connection 2 other, link thickness 50mm, attenuation 63 Hz 2dB, attenuation 125 Hz 3dB, attenuation 250 Hz 9dB , Damping 500 Hz 12DB, damping 1000 Hz 17dB, damping 2000 Hz 15dB, damping 4000 Hz 9dB, damping 8000 Hz 8dB, processing scenes Other, max. Medium temperature (continuous operation) 150 ° C, cylindrical ripe silencer for air -technical systems. Version with backdrop for greater noise reduction. The interior of the silencer is made of perforated sheet metal. Operating temperature between -40 °C and +150 °C.Item: RSKI 80/1500, installation location: fan, material: steel, galvanized, color: silver, weight: 79 kg, weight with packaging: 79 kg, width: 1000 mm, Height: 1000 mm, Depth: 1200 mm, Width with packaging: 1000 mm, Height with packaging: 1000 mm, Depth with packaging: 1200 mm

More product images:

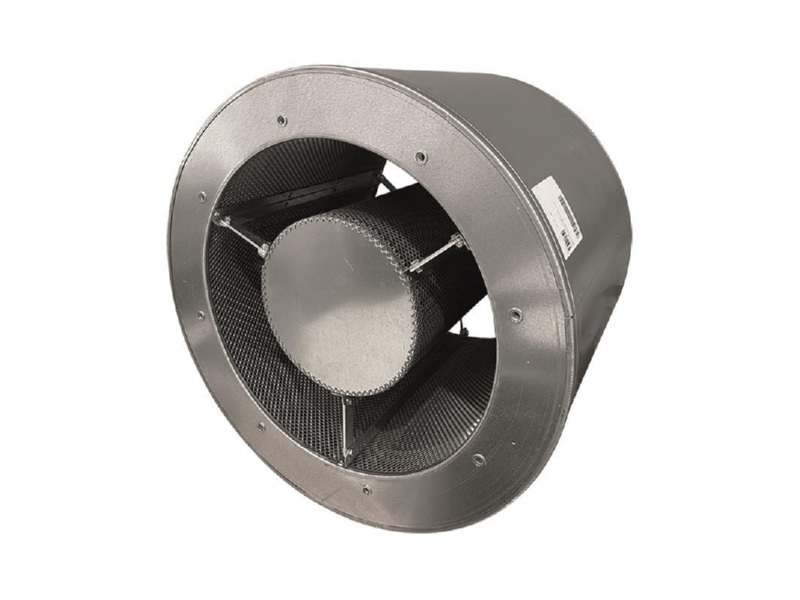

Product image 1 Maico RSKI 80 1500 Sound absorber rectangular air duct
Product image 1

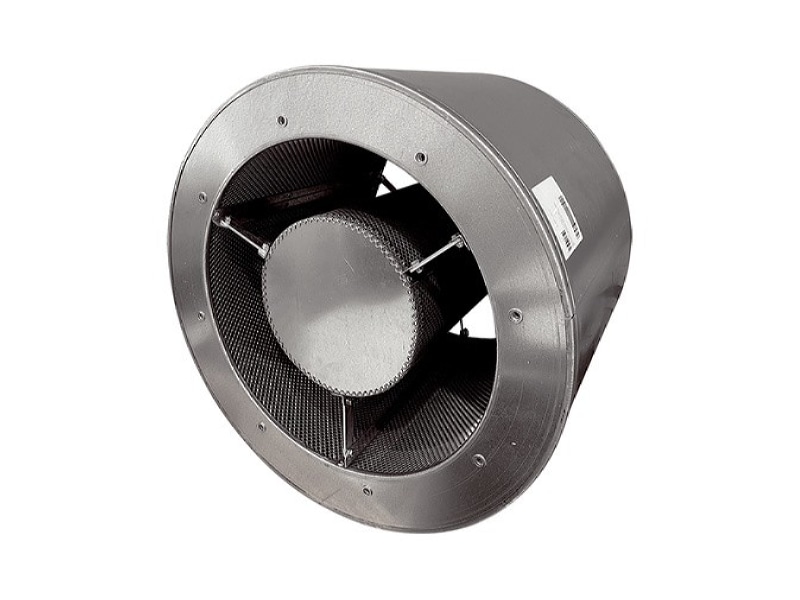

Product image 2 Maico RSKI 80 1500 Sound absorber rectangular air duct
Product image 2

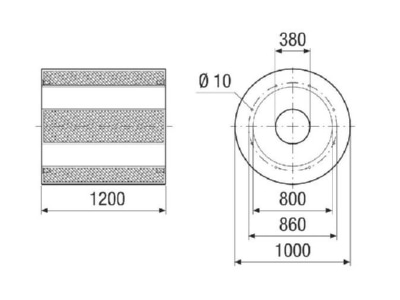

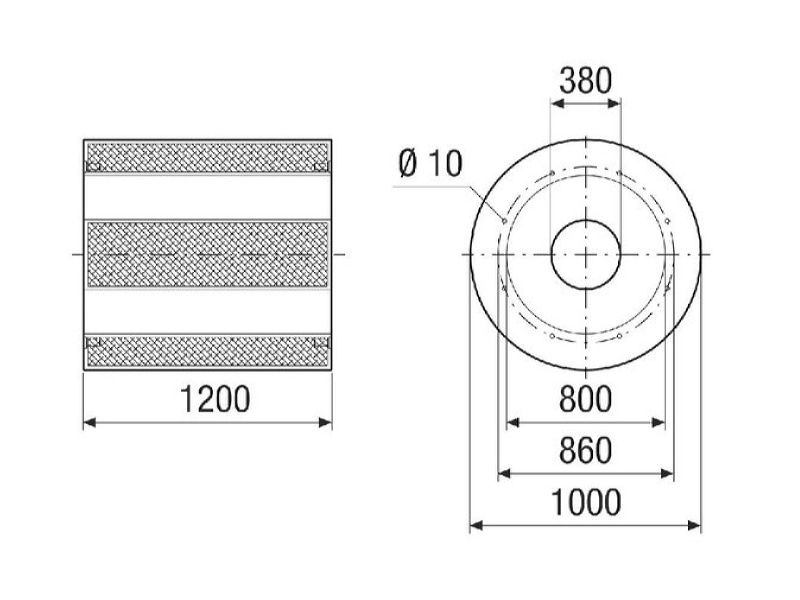

Dimensional drawing Maico RSKI 80 1500 Sound absorber rectangular air duct
Dimensional drawing
