Sound absorber rectangular air duct RSKI 71/1000
Source photo:
Maico
(fig. might be different or similar)

Sound absorber rectangular air duct RSKI 71/1000

EAN/GTIN: 4012799731122
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: RSKI 71/1000
Manufact.-SKU: 0073.0112
Customs tariff no.: 84879090
Similar top items: Show now & compare
1.573,66 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pipe silencer length 710, NW 710 RSKI 71/1000 material other, nominal width duct 710mm, nominal height duct 710mm, length 710mm, connection 1 other, connection 2 other, link thickness 50mm, attenuation 63 Hz 1dB, attenuation 125 Hz 2dB, attenuation 250 Hz 7dB, Attenuation 500 Hz 15dB, Attenuation 1000 Hz 20dB, Attenuation 2000 Hz 18dB, Attenuation 4000 Hz 12dB, Attenuation 8000 Hz 10dB, Processing backdrops other, Max. medium temperature (continuous operation) 150°C, Cylindrical pipe silencer for ventilation systems Attachments. Version with backdrop for greater noise reduction. The interior of the silencer is made of perforated sheet metal. Operating temperature between -40 °C and +150 °C.Item: RSKI 71/1000, installation location: fan, material: steel, galvanized, color: silver, weight: 44 kg, weight with packaging: 44 kg, width: 870 mm, Height: 870 mm, Depth: 710 mm, Width with packaging: 870 mm, Height with packaging: 870 mm, Depth with packaging: 710 mm

More product images:

Product image 1 Maico RSKI 71 1000 Sound absorber rectangular air duct
Product image 1

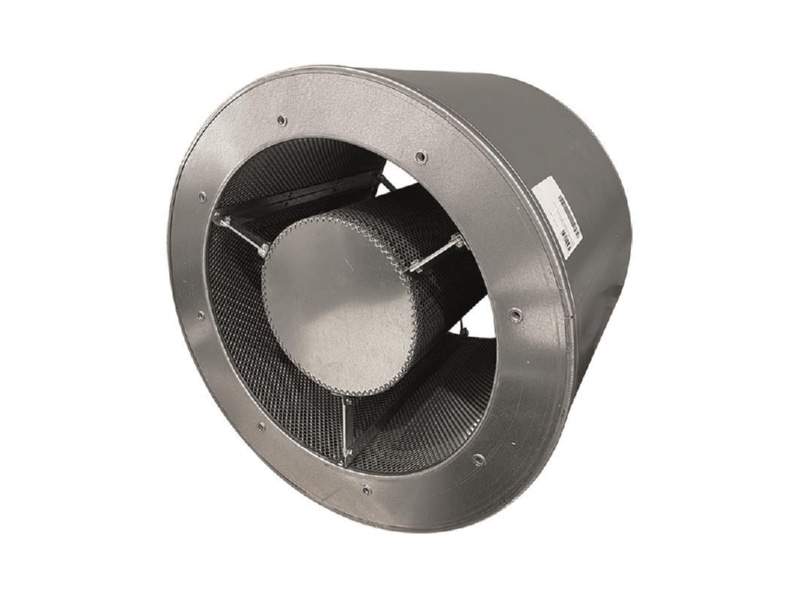

Product image 2 Maico RSKI 71 1000 Sound absorber rectangular air duct
Product image 2

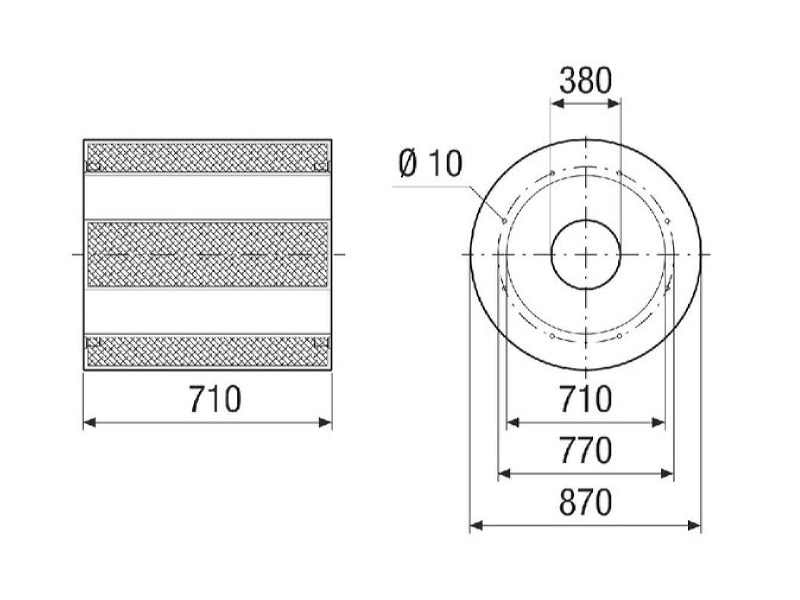

Dimensional drawing Maico RSKI 71 1000 Sound absorber rectangular air duct
Dimensional drawing
