Sound absorber rectangular air duct RSKI 63/2000
Source photo:
Maico
(fig. might be different or similar)

Sound absorber rectangular air duct RSKI 63/2000

EAN/GTIN: 4012799731115
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: RSKI 63/2000
Manufact.-SKU: 0073.0111
Customs tariff no.: 84879090
Similar top items: Show now & compare
1.694,76 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pipe silencer length 1260, NW 630 RSKI 63/2000 material other, nominal width duct 630mm, nominal height duct 1260mm, length 1260mm, connection 1 other, connection 2 other, link thickness 50mm, attenuation 63 Hz 1dB, attenuation 125 Hz 1dB, attenuation 250 Hz 6dB , Attenuation 500 Hz 15dB, Attenuation 1000 Hz 19dB, Attenuation 2000 Hz 16dB, Attenuation 4000 Hz 10dB, Attenuation 8000 Hz 8dB, Processing backdrops other, Max. medium temperature (continuous operation) 150°C, Cylindrical pipe silencer for ventilation systems . Version with backdrop for greater noise reduction. The interior of the silencer is made of perforated sheet metal. Operating temperature between -40 °C and +150 °C.Article: RSKI 63/2000, installation location: fan, material: steel, galvanized, color: silver, weight: 55 kg, weight with packaging: 55 kg, width: 790 mm, Height: 790 mm, Depth: 1260 mm, Width with packaging: 790 mm, Height with packaging: 790 mm, Depth with packaging: 1260 mm

More product images:

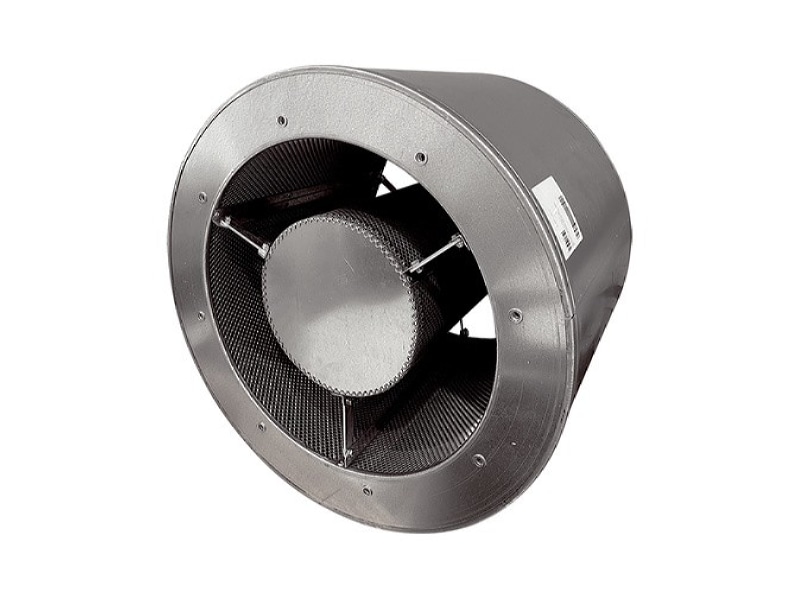

Product image 1 Maico RSKI 63 2000 Sound absorber rectangular air duct
Product image 1

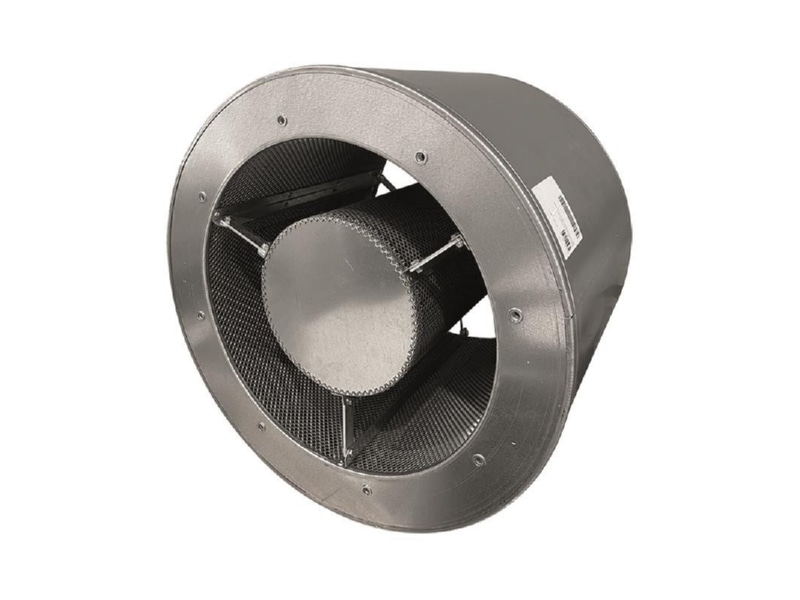

Product image 2 Maico RSKI 63 2000 Sound absorber rectangular air duct
Product image 2

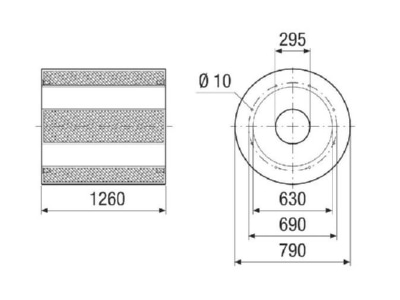

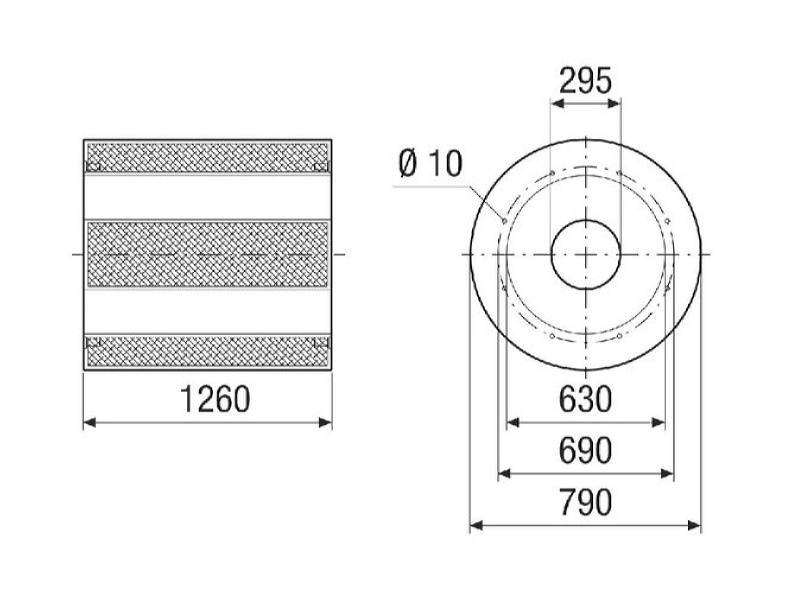

Dimensional drawing Maico RSKI 63 2000 Sound absorber rectangular air duct
Dimensional drawing
