Sound absorber rectangular air duct RSKI 63/1500
Source photo:
Maico
(fig. might be different or similar)

Sound absorber rectangular air duct RSKI 63/1500

EAN/GTIN: 4012799731108
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: RSKI 63/1500
Manufact.-SKU: 0073.0110
Customs tariff no.: 84879090
Similar top items: Show now & compare
1.618,86 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pipe silencer length 945, NW 630 RSKI 63/1500 material other, nominal width duct 630mm, nominal height duct 945mm, length 945mm, connection 1 other, connection 2 other, link thickness 50mm, attenuation 63 Hz 1dB, attenuation 125 Hz 1dB, attenuation 250 Hz 6dB, Attenuation 500 Hz 15dB, Attenuation 1000 Hz 19dB, Attenuation 2000 Hz 16dB, Attenuation 4000 Hz 10dB, Attenuation 8000 Hz 8dB, Processing backdrops other, Max. medium temperature (continuous operation) 150°C, Cylindrical pipe silencer for ventilation systems . Version with backdrop for greater noise reduction. The interior of the silencer is made of perforated sheet metal. Operating temperature between -40 °C and +150 °C.Article: RSKI 63/1500, installation location: fan, material: steel, galvanized, color: silver, weight: 44 kg, weight with packaging: 44 kg, width: 790 mm, Height: 790 mm, Depth: 945 mm, Width with packaging: 790 mm, Height with packaging: 790 mm, Depth with packaging: 945 mm

More product images:

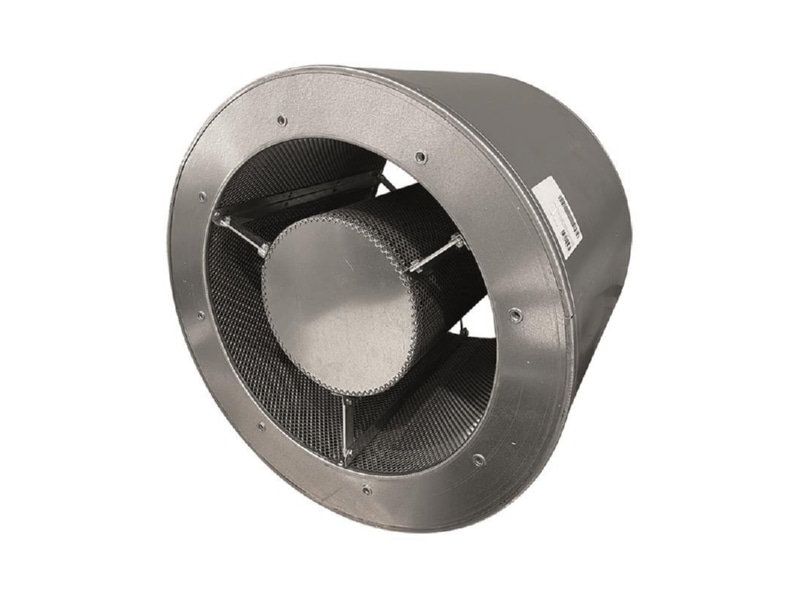

Product image 1 Maico RSKI 63 1500 Sound absorber rectangular air duct
Product image 1

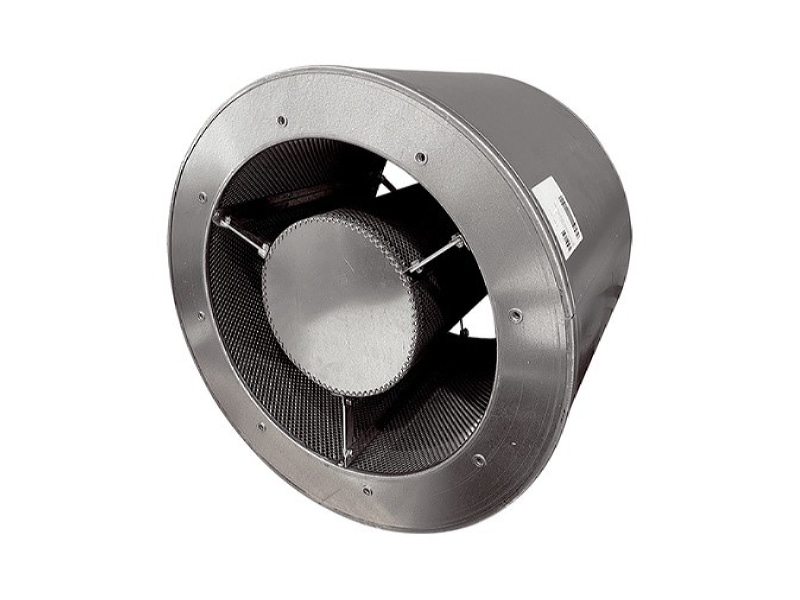

Product image 2 Maico RSKI 63 1500 Sound absorber rectangular air duct
Product image 2

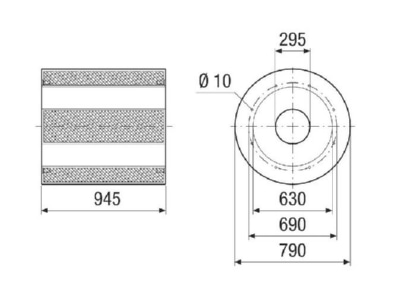

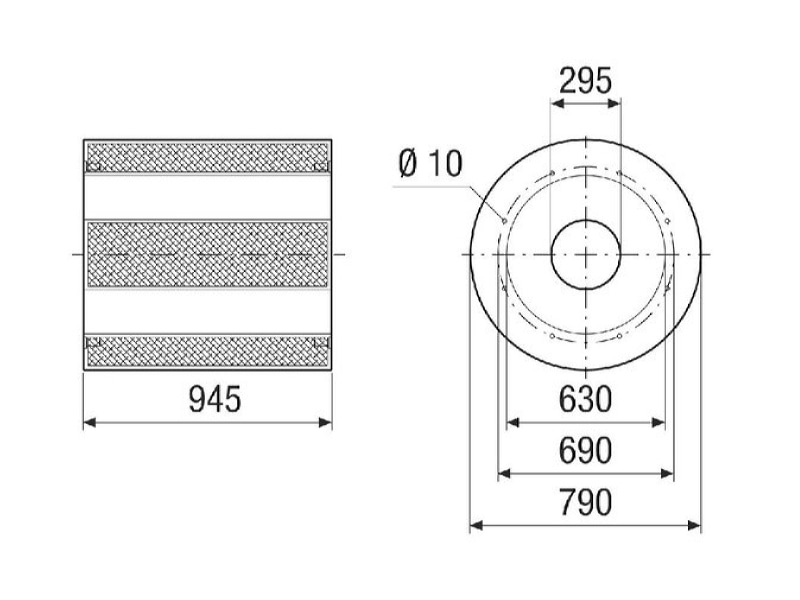

Dimensional drawing Maico RSKI 63 1500 Sound absorber rectangular air duct
Dimensional drawing
