Sound absorber rectangular air duct RSKI 125/1500
Source photo:
Maico
(fig. might be different or similar)

Sound absorber rectangular air duct RSKI 125/1500

EAN/GTIN: 4012799732570
WEEE: DE 78107228
Manufacturer: Maico
Manufacturer no.: RSKI 125/1500
Manufact.-SKU: 0073.0257
Customs tariff no.: 84879090
Similar top items: Show now & compare
3.839,26 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pipe silencer length 1875, NW 1250 RSKI 125/1500 material other, nominal width duct 1250mm, nominal height duct 1875mm, length 1875mm, connection 1 other, connection 2 other, link thickness 50mm, attenuation 63 Hz 4dB, attenuation 125 Hz 7dB, attenuation 250 Hz 12dB, Damping 500 Hz 18dB, cushioning 1000 Hz 19dB, damping 2000 Hz 10dB, damping 4000 Hz 6dB, damping 8000 Hz 6dB, processing scenes Other, max. Medium temperature (continuous operation) 150 ° C, cylindrical pipe silencer for air -technical systems. Version with backdrop for greater noise reduction. The interior of the silencer is made of perforated sheet metal. Operating temperature between -40 °C and +150 °C.Item: RSKI 125/1500, installation location: fan, material: steel, galvanized, color: silver, weight: 240 kg, weight with packaging: 240 kg, width: 1450 mm, Height: 1450 mm, Depth: 1875 mm, Width with packaging: 1450 mm, Height with packaging: 1450 mm, Depth with packaging: 1875 mm

More product images:

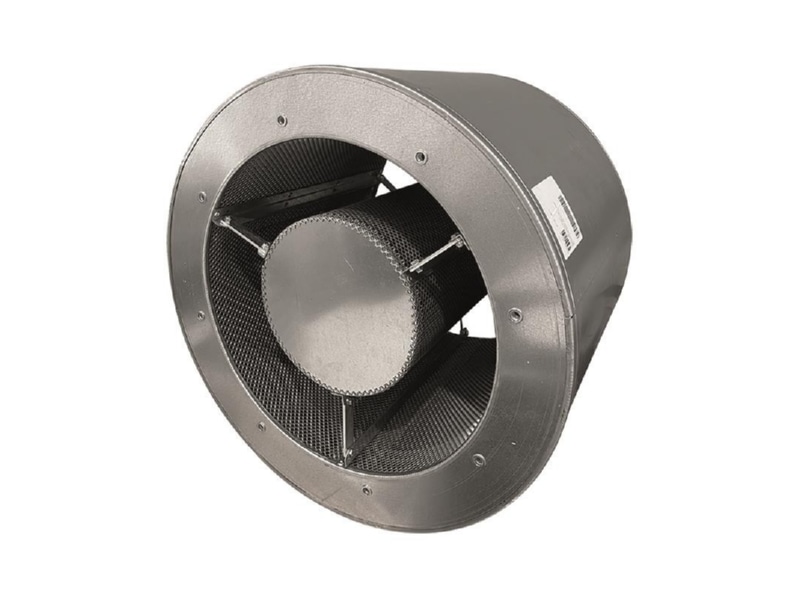

Product image 1 Maico RSKI 125 1500 Sound absorber rectangular air duct
Product image 1

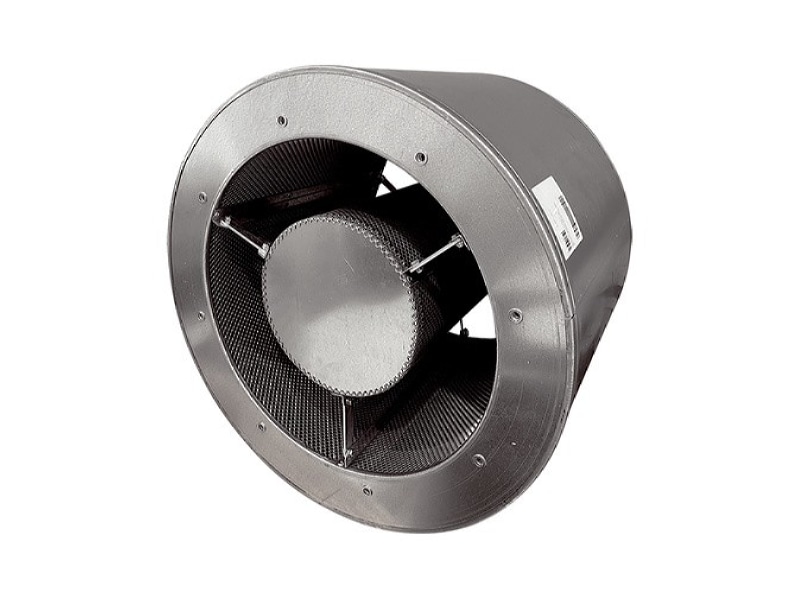

Product image 2 Maico RSKI 125 1500 Sound absorber rectangular air duct
Product image 2

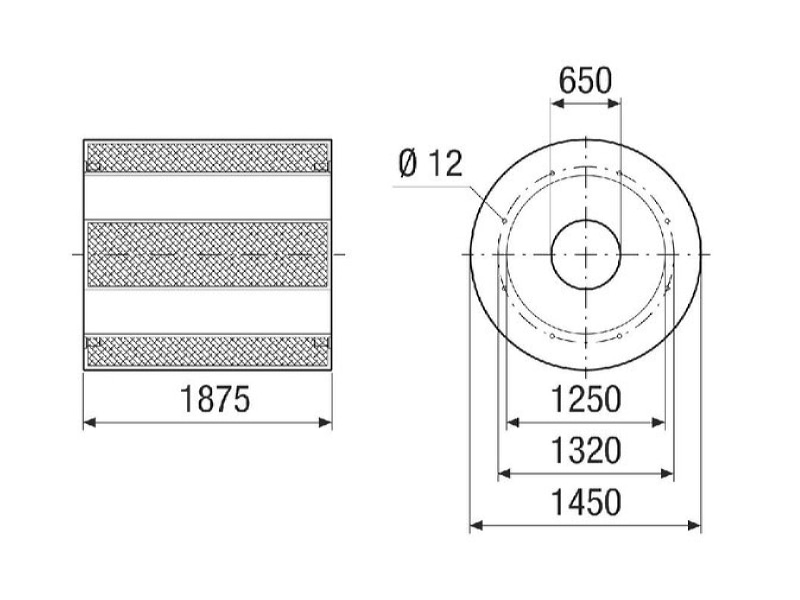

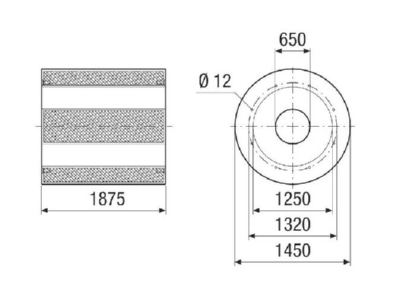

Dimensional drawing Maico RSKI 125 1500 Sound absorber rectangular air duct
Dimensional drawing
